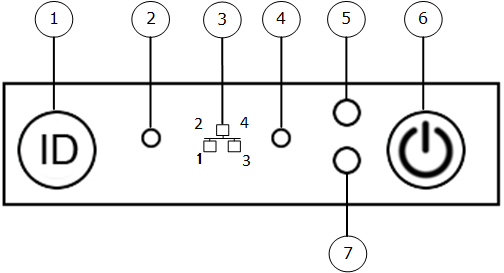

The control panel is on the front of the chassis.
.png?sv=2026-02-06&spr=https&st=2026-11-22T14%3A21%3A00Z&se=2026-11-22T14%3A33%3A00Z&sr=c&sp=r&sig=UWfTP5ItiRsUqTFwaUAdiUchclyIhAXeueiZwpgIAxo%3D)
|
Color | State | Status |
|---|---|---|
Green | Solid | System booted and ready |
Blink | System degraded:
| |
Amber | Solid | Fatal alarm — System has failed or shut down:
|
Blink | Non-fatal alarm — System is likely to fail:
| |
Off | Off | System turned off |
