Front control panel

  • Published on Sep 30, 2026
  • 2 minute(s) read
Prev Next

The control panel is on the front of the chassis.

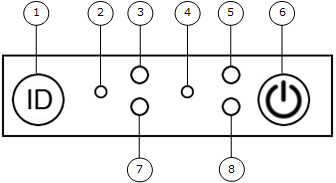

Trellix DLP 6600 front control panel
Trellix DLP 6600 front control panel


  1. System ID button

  2. NMI button (recessed)

  3. NIC 2 activity

  4. System cold reset button

  5. Hard drive activity

  6. Power button

  7. NIC 1 activity

  8. System status

Trellix DLP 6600 system status indicator light states

Color

State

Status

Green

Solid

System booted and ready

Blink

System degraded:

  • Non-critical threshold crossed

    • Temperature

    • Voltage

    • Power supply input or output

  • Fan redundancy lost, sufficient system cooling maintained

  • Power supply redundancy lost

  • Unable to use all of the installed memory — one or more DIMMS failed or disabled, but functional memory remains available

  • Battery failure

  • Power unit sensor offset error asserted

  • HDD HSC offline or degraded

  • BMC executing uBoot

  • BMC Watchdog has reset the BMC

Amber

Solid

Fatal alarm — System has failed or shut down:

  • CPU CATERR signal asserted

  • CPU 1 missing

  • CPU Thermal Trip

  • CPU ERR2 signal asserted

  • MSID mismatch detected

  • DIMM failure when only one DIMM is present

  • Runtime memory uncorrectable error in non-redundant mode

  • DIMM Thermal Trip or equivalent

  • SSB Thermal Trip or equivalent

  • BMC/Video memory test failed

  • Both uBoot BMC FW images are bad

  • 240 VA fault

  • Power fault

  • Fatal error in processor initialization

    • Processor families not identical

    • Processor models not identical

    • Processor core/thread counts not identical

    • Processor cache sizes not identical

    • Unable to synchronize processor frequency

    • Unable to synchronize QPI link frequency

Blink

Non-fatal alarm — System is likely to fail:

  • Critical threshold crossed

    • Temperature

    • Voltage

    • Power supply input or output

  • Voltage regulator device (VRD) hot asserted

  • Minimum number of fans to cool the system not present or failed

  • Hard drive fault

  • Insufficient power supplies present

  • Correctable memory error threshold crossed for a failing DDR3 DIMM when the system operates in a non-redundant mode

Off

Off

System turned off



:
