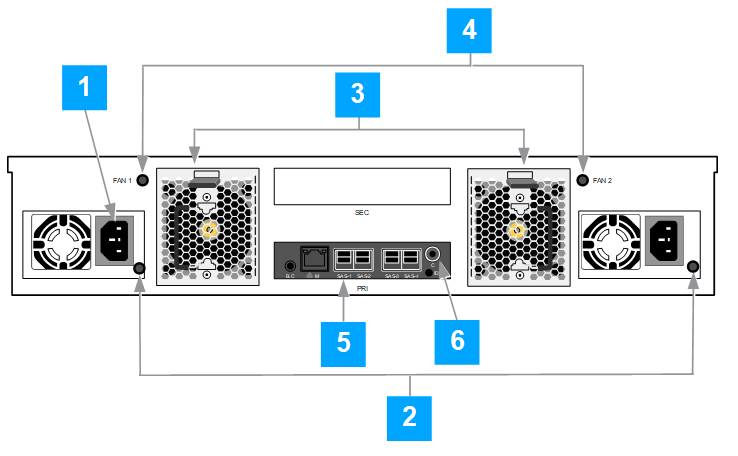

Familiarize yourself with the hardware components that are used on the back panel before setting up the Trellix DLP Capture Storage Array.
.png?sv=2026-02-06&spr=https&st=2026-11-12T17%3A23%3A37Z&se=2026-11-12T17%3A34%3A37Z&sr=c&sp=r&sig=PTWxHznBvEX3lS4LS9ojKvhkKJJTrFYqm5%2FCp%2BnwopU%3D)
Callout | Description |
|---|---|
1 | Hot-swap dual redundant power supply. |
2 | Power supply indicator light. |
3 | Hot-swap fans. |
4 | Fan indicator light. |
5 | Mini-SAS port. |
6 | Console serial port — Connect the console serial port to the DLP Network appliance USB port using the assembled 3.5 mm jack cable — DB9 connecter — USB adapter. |
