Installing licenses using the Web UI

  • Published on Sep 23, 2026
  • 1 minute(s) read
Prev Next

Use the Appliance License Settings page to install licenses on the Endpoint Security (HX) appliance.


Note

Clicking the Enable VPN link in the Description column for an MD_ACCESS license allows you to connect the appliance to Managed Defense over the Internet using a secure SSL VPN connection. For details, see the Managed Defense Quick Start Guide.

Prerequisites

  • Admin or Operator access.

  • The appliance does not already have the type of license key you are installing.

To install license keys using the Web UI:

  1. Select Appliance Settings from the Admin menu.

  2. Click Appliance Licenses on the sidebar.

  3. Paste the license key you obtained from Trellix in the License Key box.

  4. Click Add.

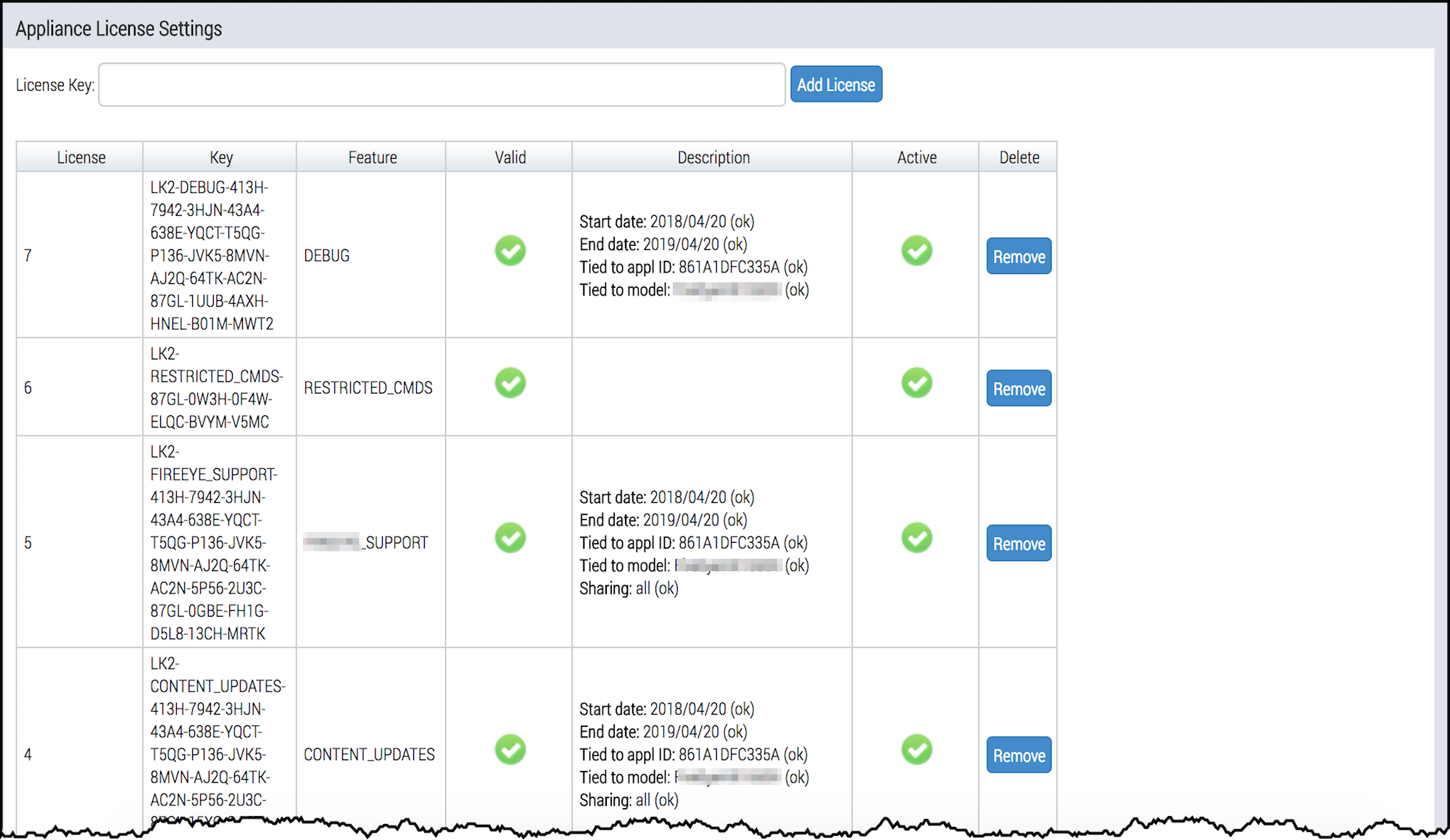

    The page refreshes to show the license key in the table. If the key is valid, the Valid column shows a check mark and additional information is displayed about the license.

:
