Before you configure the Sensor ports, you must have installed the Sensor and added to the Manager interface.
Configure inline mode for a single Sensor
This section contains recommendations for deploying a single Sensor in inline mode.
Note
Configuration for a fail-open kit is described in the fail-open kit documentation. For example, to configure the Sensor to work with the copper fail-open kit, see the Trellix Intrusion Prevention System Fail-Open Kit Product Guide.
In the Manager interface, select Devices → <Admin Domain Name> → Devices → <Device_Name> → Setup → Physical Ports.
Double-click on a numbered port (for example, 3/1) from Monitoring Ports.

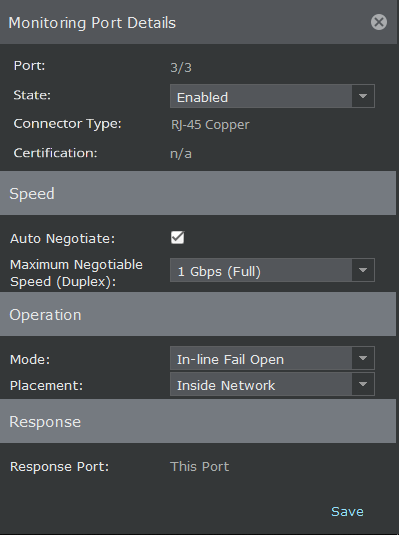

Monitoring Port Details panel displays current port settings.
Verifying ports for inline fail-open mode.png "GUID-7A49031E-86FB-4B7D-9244-042849CB83D5-low.png")
Set the Administrative State to Disable (off).
Select the other port (for example, 3/2) and set the Administrative State to Disable (off).
Now select the aforesaid port (port 3/1) and select the Auto Negotiate checkbox.
Select the port Speed.
Do one of the following:
For inline fail-closed operation, select Inline Fail Closed as the operating Mode.
For inline fail-open operation, select Inline Fail Open or Inline Fail Open - Active as the operating Mode. Confirm (Yes) that you have already connected a fail-open kit. However, if your Sensor supports in-built fail-open on that port, you might not require a fail-open kit.
Note
Inline Fail Open indicates in-built passive fail-open which is supported on different Sensors differently.
Select the area of your network to which the current port is connected: Inside (traffic generated internally, destined for the external network) or Outside (traffic generated externally, destined for the internal network).
Set the Administrative State to Enable (on).
Click Save.
Repeat for any other ports you need to configure.
Download the changes to your Sensor by clicking the Deploy Pending Changes option.
