Access the Active Fail-Open module web interface

If you have configured an IPv4 address for your Active Fail-Open chassis, you have the option to manage it through a web-interface.

To access the Active Fail-Open module web interface, enter the IPv4 address of the Active Fail-Open chassis which you have configured through https://x.x.x.x.
The Active Fail-Open module web interface appears on the login screen.
To login, enter the default username and password, Trellix00 and Trellix00.

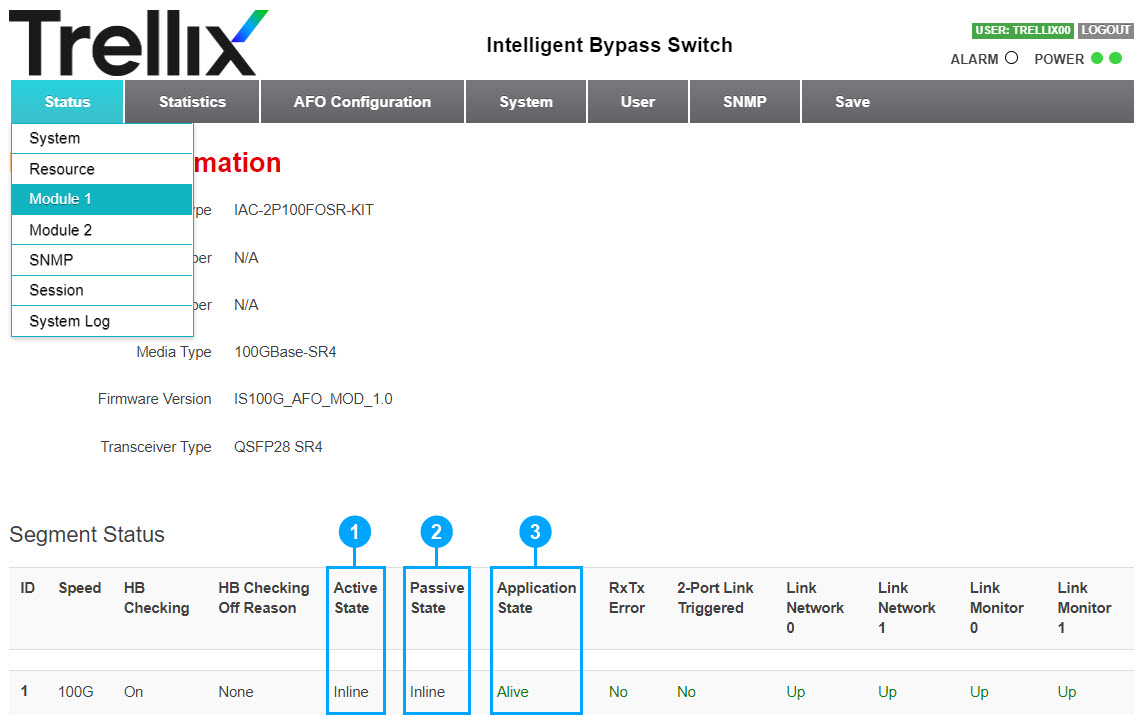

Go to, Status → Module <number>.

Under Segment Status, you can view the present settings configured in the Active Fail-Open module. Configuration of necessary settings is explained in the relevant sections.

Callout	Description
1	Active State: Inline - Sensor receives traffic and the fail-open module is operating in normal mode Bypass - Sensor does not receive traffic and the fail-open module is not operating in inline mode Tap - Fail-open module functioning like a TAP kit
2	Passive State: Inline - Fail-open module operating in normal mode Bypass - Sensor does not receive traffic and the fail-open module is not operating in inline mode
3	Application State: Active - Monitoring ports are up and the heartbeat packets are received Fail - Monitoring ports are up, but the heartbeat packets are not received Unknown - Monitoring ports are down
