Access the fail-open switch web interface

  • Published on Oct 5, 2026
  • 1 minute(s) read
Prev Next

If you have configured an IPv4 address for your fail-open switch, you have the option to manage it through a web-interface.

  1. To access the fail-open switch web interface, enter the IPv4 address of the fail-open switch which you have configured.

    The fail-open switch web interface appears on the login screen.

  2. To log on, enter the default username and password, Trellix00 and Trellix00.

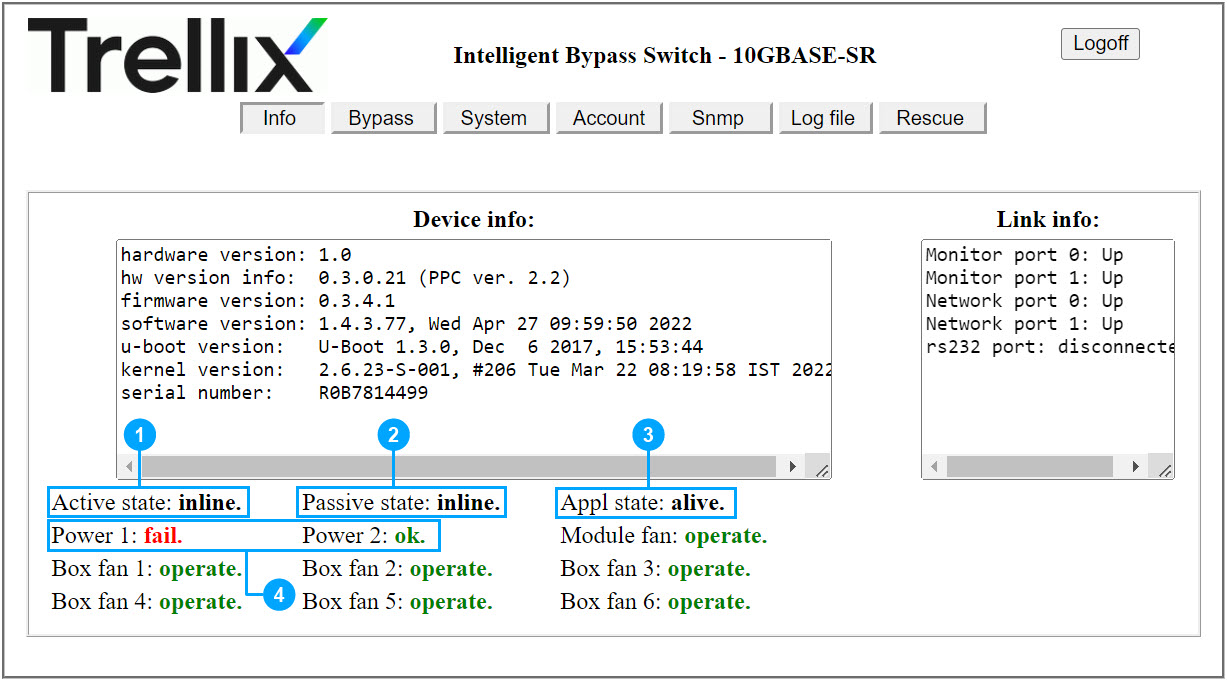

You are routed to the fail-open web interface landing page which shows you information about the present settings configured in the fail-open switch. Configuration of necessary settings is explained in the relevant sections.


Callout

Description

1

Active state of the fail-open switch:

  • Inline - Sensor receives traffic and the fail-open switch is operating in normal mode

  • Bypass - Sensor does not receive traffic and the fail-open switch is not operating in inline mode

  • Tap - Fail-open switch functioning like a TAP kit

2

Passive state of the fail-open switch:

  • Inline - Fail-open switch operating in normal mode

  • Bypass - Sensor does not receive traffic and the fail-open switch is not operating in inline mode

3

Appl (Application) state of the fail-open switch:

  • Active - Monitoring ports are up and the heartbeat packets are received

  • Fail - Monitoring ports are up, but the heartbeat packets are not received

  • Unknown - Monitoring ports are down

4

Power status of the fail-open switch:

  • Fail - No power provided to the power supply or faulty power supply

  • Ok - The power supply is normal
