Follow these steps to add a Network Group rule object:
Upon specifying the options in the Properties tab and selecting Network Group from the rule object Type drop-down, click Next.

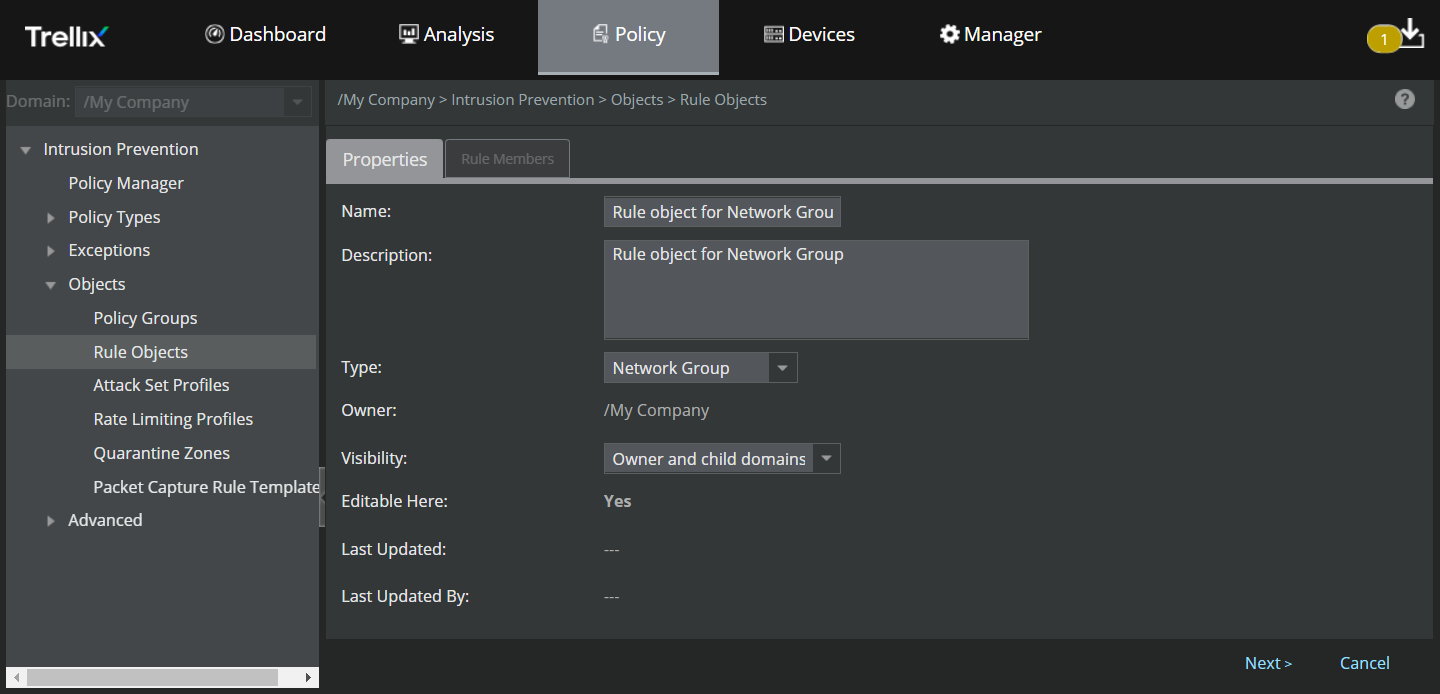

Create a Network Group rule object.png "GUID-E1DF708F-5324-4AE7-8219-C7E8B2FB9884-low.png")
The Rule Members tab is displayed.

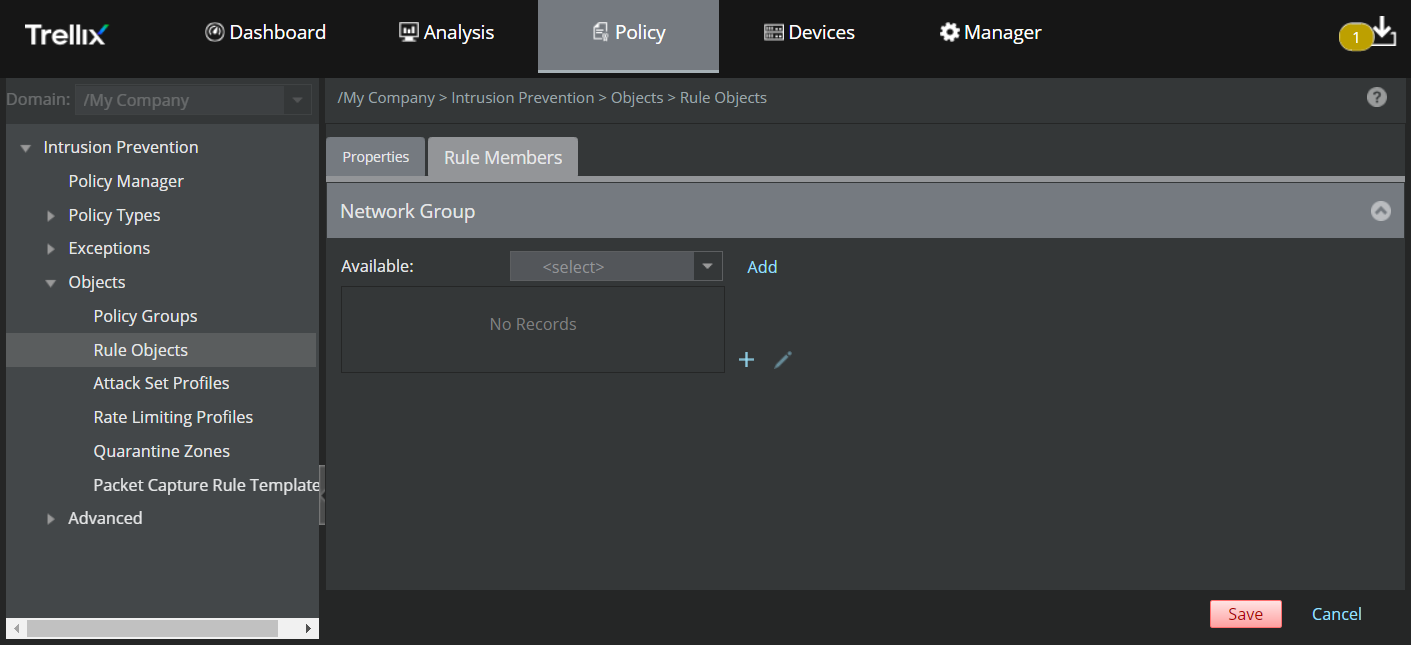

Add Rule Members.png "GUID-1A7E33B8-A7E1-4A58-B573-90DC6E18F093-low.png")
The following table explains the options in the Rule Members tab.
Option
Definition
Application Group
Select a pre-defined Country or an existing rule object from the Available drop down list
Add
Click this button to move the selected item to the Rule Member list
.png)
Click this icon to edit a rule member in the list
.png)
Click this icon to add a new rule object. You can add rule objects of the following type: Host DNS Name, IPv4 Address Range, IPv4 Endpoint, IPv4 Network, IPv6 Address Range, IPv6 Endpoint, IPv6 Network.
.png)
Click this icon to remove a rule member from the list
Based on the above options, you can choose to add a rule member from the Available list or create a new rule object using the
icon and add it to the list.Upon adding the required rule members, not exceeding 10, click Save.
