Add a Recurring Time Period rule object

Follow these steps to add Recurring Time Period rule object:

Upon specifying the options in the Properties tab and selecting Recurring Time Period from the rule object Type drop-down, click Next.

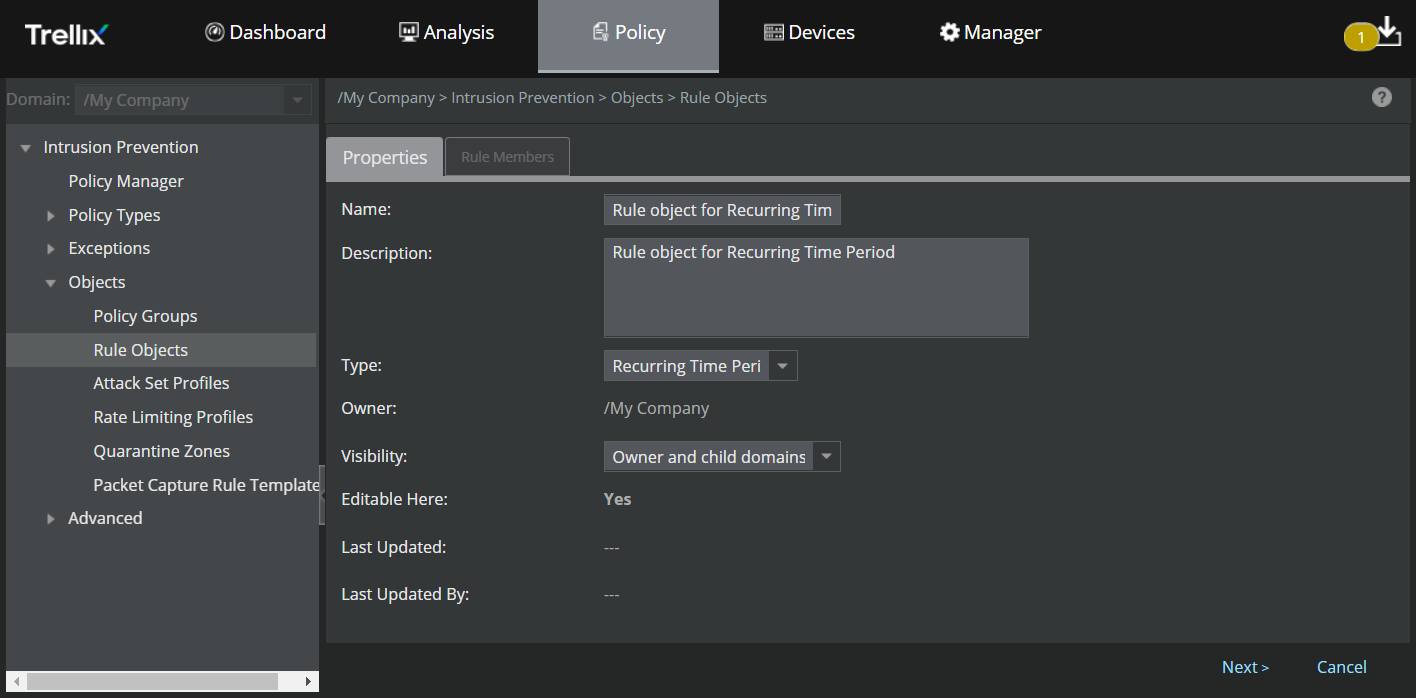

Create a Recurring Time Period rule object

The Rule Members tab is displayed.

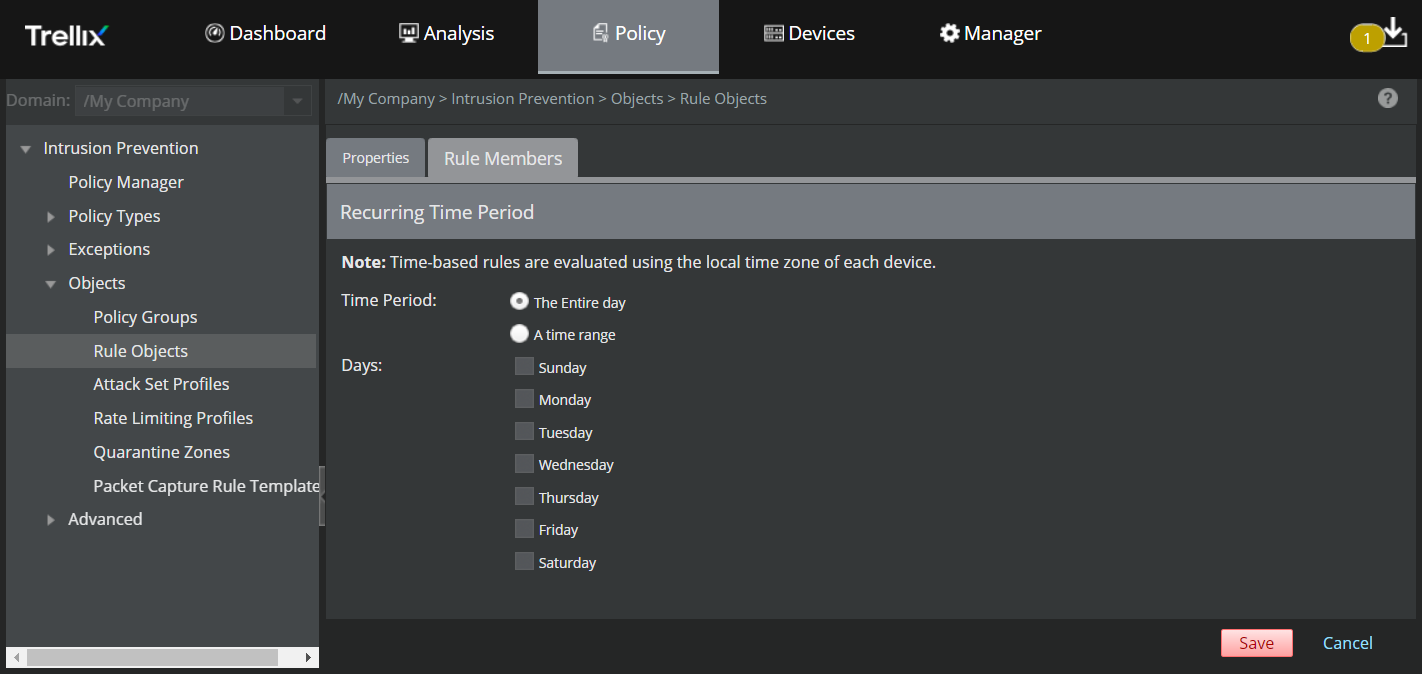

Add Rule Members

The following table explains the options in the Rule Members tab.

Option	Definition
Time Period	Select the time when the Sensor must enforce the corresponding rule. Time-based rules are implemented using the local time zone of the corresponding Sensor. You can select the option The Entire day or A time range for a specific time period.
Time Range	To modify the hour or minute values, place the cursor on the Time Range field and type the hour value. Then, click on the drop-down list and select the relevant minute value. Also select the to range by selecting the value from the drop-down list.
Days	Select the days when the Sensor must enforce the corresponding rule. You must select at least one of the days.

Option

Definition

Time Period

Select the time when the Sensor must enforce the corresponding rule. Time-based rules are implemented using the local time zone of the corresponding Sensor.

You can select the option The Entire day or A time range for a specific time period.

Time Range

To modify the hour or minute values, place the cursor on the Time Range field and type the hour value. Then, click on the drop-down list and select the relevant minute value. Also select the to range by selecting the value from the drop-down list.

Days

Select the days when the Sensor must enforce the corresponding rule. You must select at least one of the days.

Based on the above options, you can select the Time Period and the Days when the Sensor must enforce the corresponding rule.
Click Save.
