Add a Service Range rule object

Upon specifying the options in the Properties tab and selecting Service Range from the rule object Type drop-down, click Next.

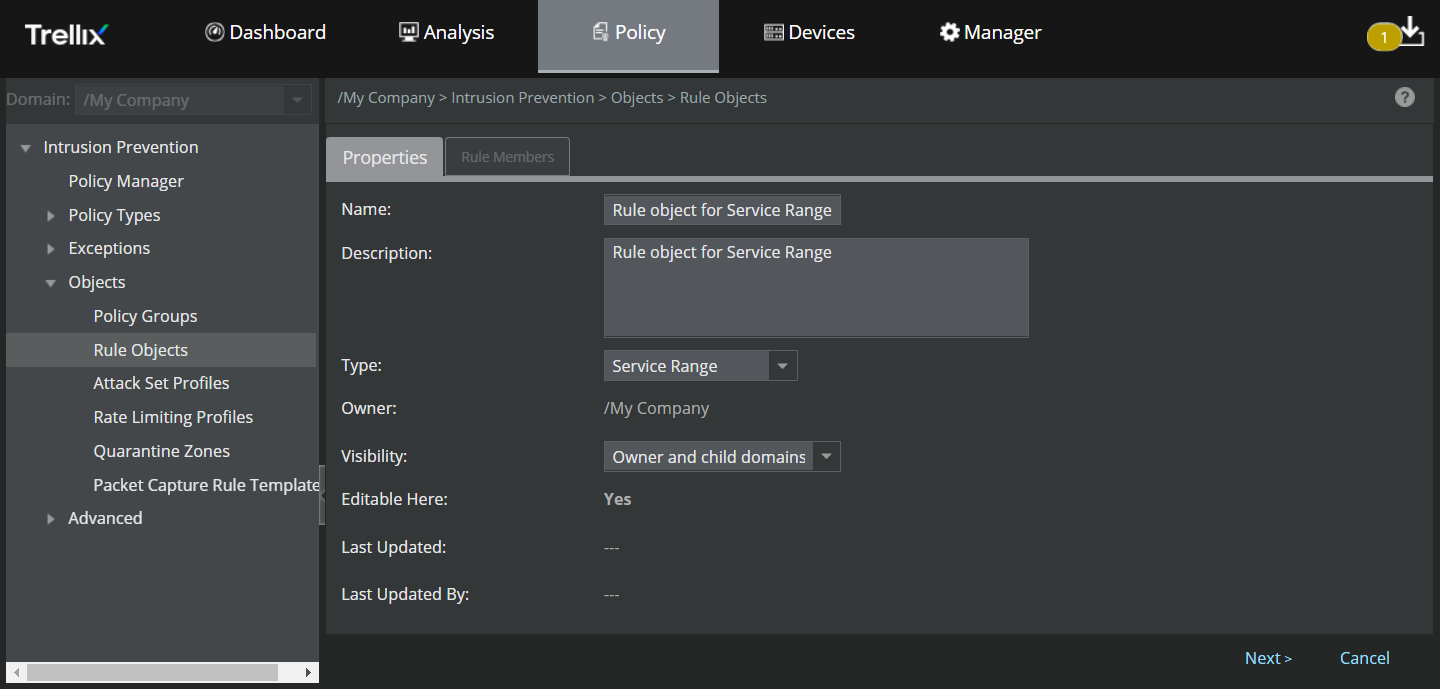

Create a Service Range rule object

The Rule Members tab is displayed.

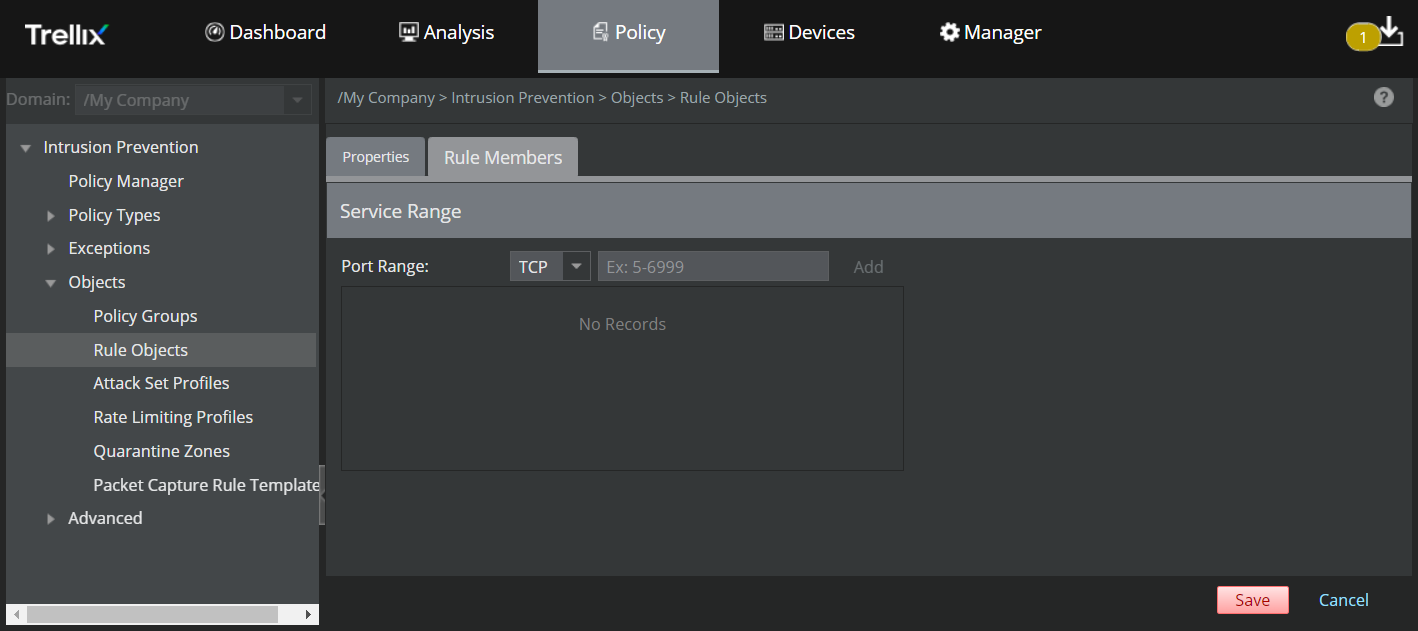

Add Rule Members

The following table explains the options in the Rule Members tab.

Option	Definition
Port Range	Select TCP or UDP from the drop-down list. Enter the beginning and end port range (Example: 1- 65534) in the text box. Note Ensure to enter a hyphen between the beginning and end port range.
Add	Click this icon to add the Port range to the list.
	Click this icon to remove the Port range from the list.

Based on the above options, you can assign up to 10 TCP and UDP port ranges.

Click Save.
