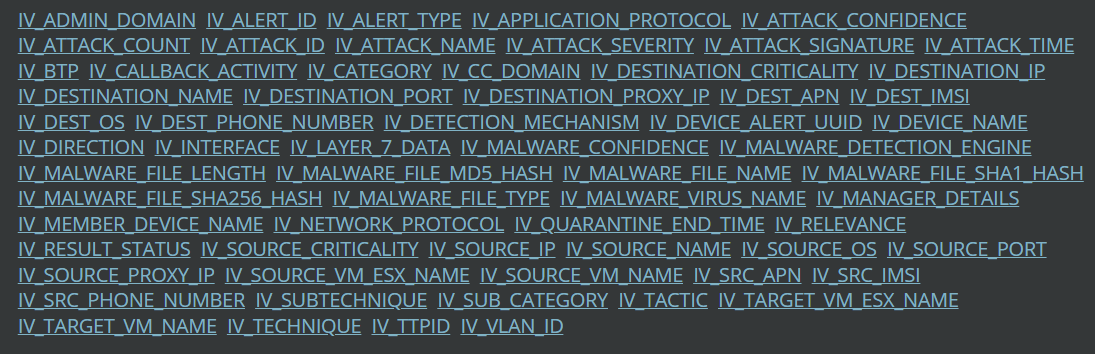

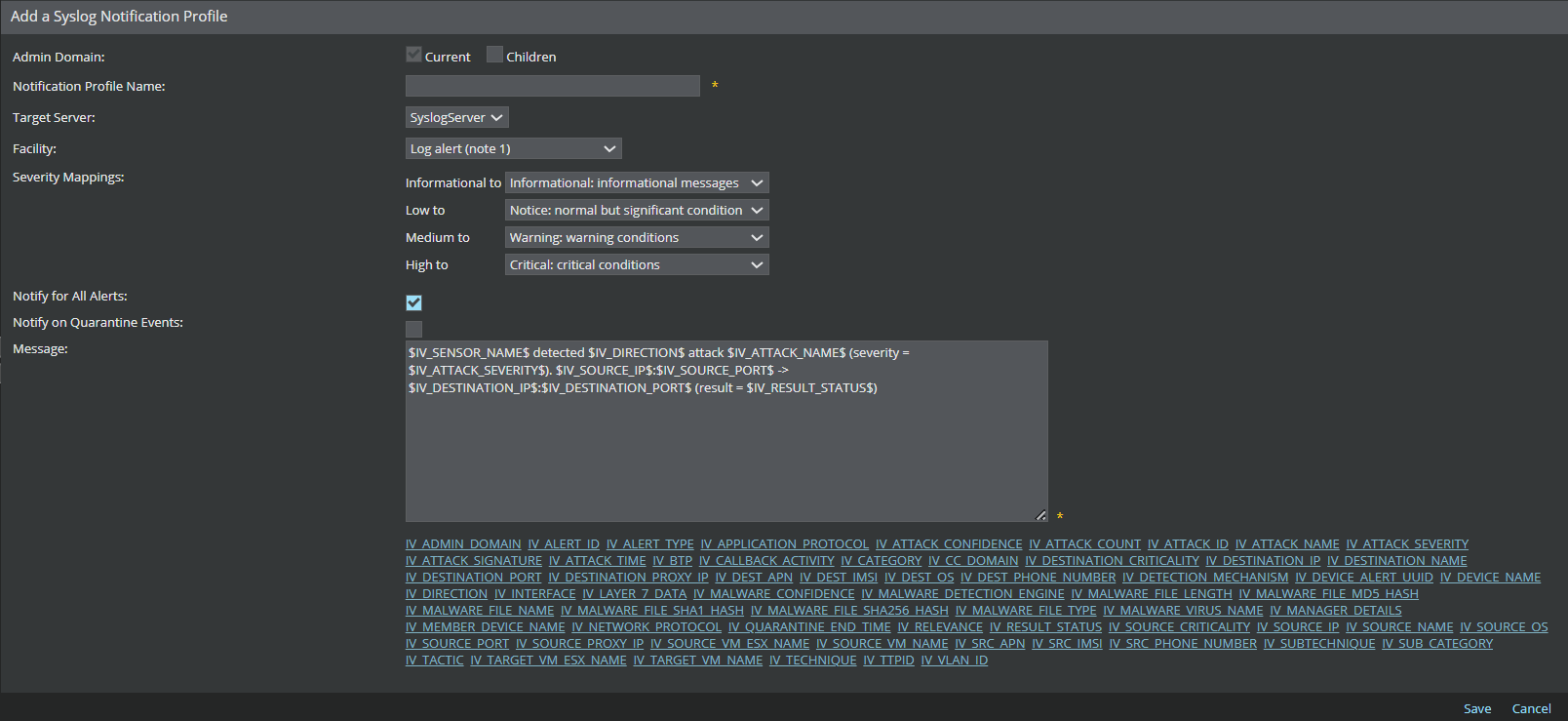

Add a Syslog notification profile to forward alerts

$IV_ADMIN_DOMAIN$

The domain to which the Sensor that detected the attack belongs

Domain

$IV_ALERT_ID$

The globally unique ID that the Manager assigns to an alert

Alert ID

$IV_ALERT_TYPE$

The Sensor decides the type of alert. This is mainly used by the Manager for its internal processing. This is not related to the Attack Category or Attack Sub-category. Some example alert types are signature, statistical anomaly, threshold anomaly, port scan, and host sweep.

Not available

$IV_APPLICATION_PROTOCOL$

The application-layer protocol associated with the attack traffic. This is not related to the Application Identification feature, and this information is displayed even if you have not enabled Application Identification. There could be instances when a Sensor might not be able to detect the protocol.

Not available

$IV_ATTACK_CONFIDENCE$

This is a value between 1 and 7. For example, a confidence level of 7 indicates that there is low possibility of the attack being a false-positive.

The attack confidence values are inversely related to the Benign Trigger Probability (BTP) values of attack signatures.

Note

When the BTP value is 0, there is no corresponding confidence value for the attack.

Not available

$IV_ATTACK_COUNT$

The number of types the attack occurred. This information is more relevant for suppressed alerts. Consider you have enabled alert suppression such that the alert is raised only when the attack is seen 5 times within 30 seconds. Subsequently, the Sensor detected this attack 10 times within 30 seconds. Then the attack count for this alert is 10.

Attack Count

$IV_ATTACK_ID$

Trellix Advanced Research Center assigns a universally unique hexadecimal value to each attack. This field displays the integer value of the hexadecimal ID assigned by Trellix ARC.

The equivalent hexadecimal value is displayed in the Attack Information & Description page as Intruvert ID.

$IV_ATTACK_NAME$

The name assigned by Trellix ARC to an attack

Name

$IV_ATTACK_SEVERITY$

Indicates the severity value of an attack specified in the corresponding attack definition.

Attack Severity (high, medium, low, or informational)

$IV_ATTACK_SIGNATURE$

The ID of the signature that matched the attack traffic

Not available

$IV_ATTACK_TIME$

The time when the Sensor created the alert

Time

$IV_CALLBACK_ACTIVITY$

The name of the Callback Activity family

Callback Activity

$IV_CATEGORY$

The category to which the attack belongs. This is decided by Trellix ARC. Some examples are exploit, policy violation, and reconnaissance. You can view the attack categories in the IPS Policy Editor when you group by Attack Category.

Attack Category

$IV_CC_DOMAIN$

The name of the Callback Activity domain

C&C Domain

$IV_DESTINATION_CRITICALITY$

Displays the risk level as High Risk, Medium Risk or Low Risk

Target Risk

$IV_DESTINATION_IP$

The destination IP address to which the attack is destined

Target IP address

$IV_DESTINATION_NAME $

The name of the host to which the attack is destined

Target Hostname

IV_DESTINATION_PORT$

The port number on the destination host to which the attack traffic is sent

Target Port

$IV_DESTINATION_PROXY_IP

The IP address of the proxy server

Target Proxy IP

$IV_DEST_APN$

This is the destination Access Point Name (APN). This information is part of a mobile subscriber's identity data and is relevant only if you have deployed Sensors to monitor mobile networks. To see this data, you must enable capturing and tagging of mobile subscriber data in the alerts by using the set mnsconfig Sensor CLI command.

Not available

$IV_DEST_IMSI$

This is the destination International Mobile Subscriber Identity (IMSI). The details provided for APN apply to this as well.

Not available

$IV_DEST_OS$

The operating system installed on the destination host

Target OS

$IV_DEST_PHONE_NUMBER$

This is the destination mobile phone number. The details provided for APN above apply to this as well.

Not available

$IV_DETECTION_MECHANISM$

The method the Sensor used to detect the attack. For example, signature, multi-flow-correlation, threshold, and so on. Each method relates to a specific attack category.

Detection (in Alert Details panel)

$IV_DEVICE_ALERT_UUID$

ID assigned to the alert

Alert ID

$IV_DEVICE_NAME$

Name of the device that detected the attack

Device

$IV_DIRECTION$

Indicates whether the attack traffic originated from your network or the outside network. For example, inbound direction means that the attack traffic originated from the outside network, targeting the hosts on your network.

Direction

$IV_INTERFACE$

The interface or sub-interface on which the Sensor detected the attack traffic

Interface

$IV_LAYER_7_DATA$

Provides the Layer 7 data

Layer 7 Data

$IV_MALWARE_CONFIDENCE$

Confidence level of the malware as detected by the engine

Malware Confidence

$IV_MALWARE_DETECTION_ENGINE$

Engine which detected the malware (Gateway Anti-Malware, Global Threat Intelligence, PDF‑JS, etc)

Engine

$IV_MALWARE_FILE_LENGTH$

The length of the malware file

Not available

$IV_MALWARE_FILE_MD5_HASH$

The MD5 hash of the malware file (fingerprint)

File Hash

$IV_MALWARE_FILE_NAME$

The name of the malware file. For SMTP traffic, it displays the file name of the attachment and for HTTP traffic, it displays the URL of the file.

File Name

$IV_MALWARE_FILE_SHA1_HASH$

The SHA1 hash of the malware file (fingerprint)

File Hash

$IV_MALWARE_FILE_SHA256_HASH$

The SHA256 hash of the malware file (fingerprint)

File Hash

$IV_MALWARE_FILE_TYPE$

The file type of the malware file

Not available

$IV_MALWARE_VIRUS_NAME$

The virus name as detected by Gateway Anti-Malware

Not available

$IV_MANAGER_DETAILS$

The hostname and IP address of the Manager. For an MDR setup, it further specifies if the Manager is primary or secondary.

Not available

$IV_MEMBER_DEVICE_NAME$

Name of the device that detected the attack

Device

$IV_NETWORK_PROTOCOL$

The network protocol, such as TCP, of the attack traffic

Protocol (in Alert Details panel)

$IV_QUARANTINE_END_TIME$

The time when the attacking host will be out of quarantine. This is relevant only if you had enabled Quarantine feature.

Not available

$IV_RELEVANCE$

Indicates if the endpoint is vulnerable to this particular attack

Relevance

$IV_RESULT_STATUS$

Indicates whether the attack traffic reached the victim host

Result

$IV_SOURCE_CRITICALITY$

Displays the risk level as High Risk, Medium Risk or Low Risk

Attacker Risk

$IV_SENSOR_ALERT_UUID$

The universally unique ID assigned by the Sensor for the alert. For a specific alert raised by a specific Sensor, the Central Manager also displays the same ID.

Alert ID

$IV_SENSOR_CLUSTER_MEMBER$

The member Sensor of a HA pair that generated the alert

Not available

$IV_SENSOR_NAME$

The Sensor that generated the alert

Device

$IV_SOURCE_IP$

The IP address of the attacking host

Attacker IP address

$IV_SOURCE_NAME$

Name of the host from where the attack was generated

Attacker Hostname

$IV_SOURCE_OS$

OS of the attacking host

Attacker OS (in Alert Details panel)

$IV_SOURCE_PORT$

The port number on the attacking host from which the attack traffic is sent

Attacker Port

$IV_SOURCE_PROXY_IP$

The IP address of the proxy server

Attacker Proxy IP

$IV_SOURCE_VM_NAME$

Name of the virtual machine from where the attack was generated

Attacker VM Name

$IV_SRC_APN$

This is the source Access Point Name (APN). This information is part of a mobile subscriber's identity data and is relevant only if you have deployed Sensors to monitor mobile networks. To see this data, you must enable capturing and tagging of mobile subscriber data in the alerts by using the set mnsconfig Sensor CLI command.

Not available

$IV_SRC_IMSI$

This is the source International Mobile Subscriber Identity (IMSI). The details provided for APN apply to this as well.

Not available

$IV_SRC_PHONE_NUMBER$

This is the source mobile phone number. The details provided for APN apply to this as well.

Not available

$IV_SUBTECHNIQUE$

Name of the corresponding adversarial sub-technique matching with the attack or alert

Sub-Technique

$IV_SUB_CATEGORY$

The subcategory to which the attack belongs. This is decided by Trellix ARC, and is a classification within Attack Category. Some examples are brute-force, buffer-overflow, host-sweep, and restricted-application. You can view the attack subcategories in the IPS policy editor when you group by Attack Subcategory.

Attack Subcategory (in Alert Details panel)

$IV_TACTIC$

Name of the adversarial tactic matching with the attack or alert

Tactic

$IV_TARGET_VM_NAME$

Name of the virtual machine to which the attack is directed

Target VM Name

$IV_TECHNIQUE$

Name of the corresponding adversarial technique matching with the attack or alert

Technique

$IV_TTPID$

ID of the specific technique/sub-technique in the<techniqueID.sub-techniqueID> format

Technique/Sub-Technique ID

$IV_VLAN_ID$

The VLAN ID seen on the attack traffic

VLAN
