Add an Advanced Malware policy

Steps:

1. Select Policy and then select the required admin domain from the Domain drop-down list.

2. Select Intrusion Prevention → Policy Types → Advanced Malware.

3. Click .

   The Advanced Malware page for a new policy opens.

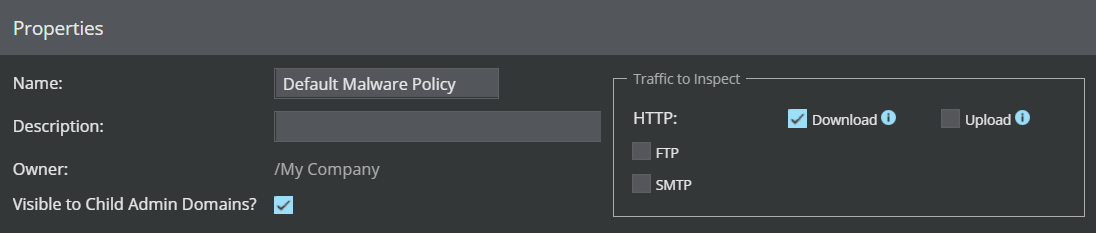

   Update the properties of the Advanced Malware policy






4. Update the following properties.

   Field name	Description
   Name	Name of the policy
   Description	Description of the policy
   Owner	Name of the admin domain to which the policy belongs
   Visible to Child Admin Domains?	Specifies whether the policy is applicable to all child admin domains
   Traffic to Inspect	Protocols over which advanced malware scanning is performed. The supported protocols are HTTP, FTP, and SMTP. Note The HTTP Download option allows you to scan HTTP download/response traffic for presence of malware. This option is enabled by default. The HTTP Upload option allows you to scan HTTP upload (POST and PUT) requests for presence of malware. This option is disabled by default. You need to select the Uploadcheckbox to enable it. For more information on scanning HTTP POST and PUT requests, refer to the Malware inspection on HTTP Upload requests section in Trellix Intrusion Prevention System Product Guide. Note FTP malware detection overrides the accelerate-ftp feature even if it is enabled. For more information on the accelerate-ftpcommand, refer to the CLI commands section in Trellix Intrusion Prevention System Product Guide.

5. Update the File Scanning Options.

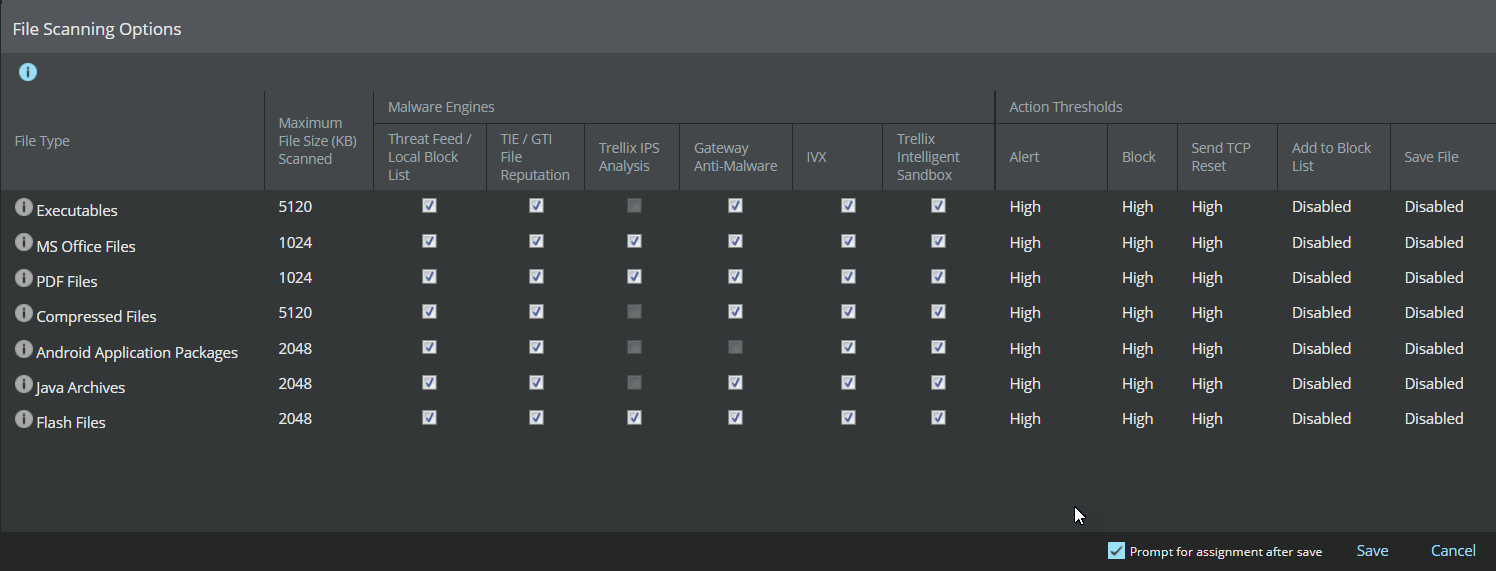

   Update the scanning options of the Advanced Malware policy




   Note

   Name resolution must be enabled on devices which will be using the GTI File Reputation malware engine.

   File scanning options

   Field name	Description
   File Type	The file types to be scanned. For information about the supported file types, refer to the table Advanced malware file extension support below.
   Maximum File Size (KB) Scanned	The maximum size currently supported for the corresponding file type. Files that exceed the specified size are not analyzed for malware by any of the engines, including the block and allow lists. The default values are displayed in the Default Malware Policy as well as when you create a policy. The default values are the optimum sizes recommended by Trellix Advanced Research Center based on their research on malware. You can set the maximum file size value up to (25*1024) KB/25 MB for all file types. However, the Trellix IPS Anlysis engine has a file-size limit. The limits for each Sensor model are as follows: NS-series Sensors - (50*1024) KB/50 MB Virtual IPS Sensors- (5*1024) KB/5 MB Note Trellix recommends that for any file type, you do not set a value more than (5*1024) KB/5 MB as the maximum file size as this might affect the Sensor's performance.
   Malware Engines	The Malware engines to scan the selected file type. If you select Gateway Anti-Malware for a File Type, you must either use an NS-series Sensor or NTBA. For IVXto work, you must integrate the corresponding Sensors with the Trellix VX or IVX Cloud. See the chapter Integration with IVX for more information. For Trellix Intelligent Sandbox to work, you must integrate the corresponding Sensors with Trellix Intelligent Sandbox. See the chapter Integration with Trellix Intelligent Sandbox for more information.
   Action Thresholds	Specifies the type of response to be made for the attack. The types of responses are: Alert — Alerts are raised in Attack Log. Block — This action blocks packets for detected malware, thus preventing the malicious file from reaching the host. The first step towards prevention is typically to block attacks that have a high severity level. When you know which attacks you want to block, you can configure your policy to perform the drop attack packets response for those attacks. If not configured in the policy, the Attack Log allows you to update the policy to block traffic. Send TCP Reset— Disconnects a TCP connection at the source, destination, or both ends of the transmission, thus preventing the malicious file from reaching the host. Note This response may not work effectively with SPAN and tap deployments. Add to Block List— If any of the engines report the submitted file to be malicious, then the Manager adds the file's MD5 hash to the block list in its database. To be added to this list, the file's severity must be the same or more than what you specify in this field. For example, if you specify high as the criteria, then files of severity high and very high are added to the block list. Within the next 5 minutes, the Manager adds this file to the local block list of all the Sensors that it manages. Note The TIE/GTI File Reputation engine does not support Add to Block List response action. You can manually add the desired malware file's MD5 hash to the block list from the Attack Log page. Note In case MD5 entries limit has reached, the Manager adds SHA256 hash value(s) of the malware file(s) to its block list and sends the same hash value(s) to the Sensor through incremental or full update. Save File— One of the response actions specified is the ability to archive the file in a file store based on the Advanced Malware policy. The files that are selected based on this configuration are forwarded to Manager. For files greater than 5 MB, only the first 5 MB is available as the saved file. To prevent the Manager's disk from getting frequently filled up, use the Save File feature sparingly. The Sensor's simultaneous file scan capacity is reduced if the Save File option is enabled. See the table in this section for the details.





   To know the list of advanced malware file extensions supported by signature sets, refer to KB96988.

   Each file type is scanned by a Malware engine. Multiple malware engines can be selected to scan various file types. The Malware engines return a confidence level. Based on the confidence level, the following action thresholds can be set. The confidence levels supported are: Very low, low, medium, high, very high.

   The Malware Engines supported per file type are:

   File Type	TIE/GTI File Reputation	Threat Feed /Local Block List	Trellix IPS Analysis	Gateway Anti-Malware	IVX	Trellix Intelligent Sandbox
   Executables
   MS Office Files
   PDF Files
   Compressed Files
   Android Application Package
   Java Archive
   Flash Files
   Script Files

   The maximum simultaneous file scan capacity per Sensor model is as follows.

   Sensor	Maximum simultaneous file scan capacity with file save	Maximum simultaneous file scan capacity without file save
   NS9600 stack (2-node) - 120 Gbps throughput	1,000	8,188
   NS9600 standalone - 60 Gbps throughput	1,000	4,094
   NS9600 standalone - 40 Gbps throughput	1,000	4,094
   NS9600 standalone - 20 Gbps throughput	1,000	4,094
   NS9500 stack - 100 Gbps throughput	1,000	4,096
   NS9500 stack - 60 Gbps throughput	1,000	2,048
   NS9500 stack - 40 Gbps throughput	1,000	2,048
   NS9500 standalone - 30 Gbps throughput	1,000	1,024
   NS9500 standalone - 20 Gbps throughput	1,000	1,024
   NS9500 standalone - 10 Gbps throughput	1,000	1,024
   NS9300, NS9200, NS9100	1,000	1,024
   NS7600 - 20 Gbps throughput	1,000	4,094
   NS7600 - 15 Gbps throughput	1,000	4,094
   NS7600 - 10 Gbps throughput	1,000	4,094
   NS7600 - 5 Gbps throughput	1,000	4,094
   NS7500 - 7.5 Gbps throughput	1,000	1,024
   NS7500 - 5 Gbps throughput	1,000	1,024
   NS7500 - 3 Gbps throughput	1,000	1,024
   NS7350, NS7250, NS7150	1,000	1,024
   NS7300, NS7200, NS7100	1,000	1,024
   NS5200, NS5100	32	1,024
   NS3600 - 5 Gbps throughput	1,000	4,094
   NS3600 - 3 Gbps throughput	1,000	4,094
   NS3600 - 1 Gbps throughput	1,000	4,094
   NS3500	16	255
   NS3200, NS3100	16	255
   IPS-VM600	32	1,024
   IPS-VM5000	32	1,024

6. To assign the Advanced Malware Policy to the available interfaces and direction (Inbound, Outbound), select Prompt for assignment after save.

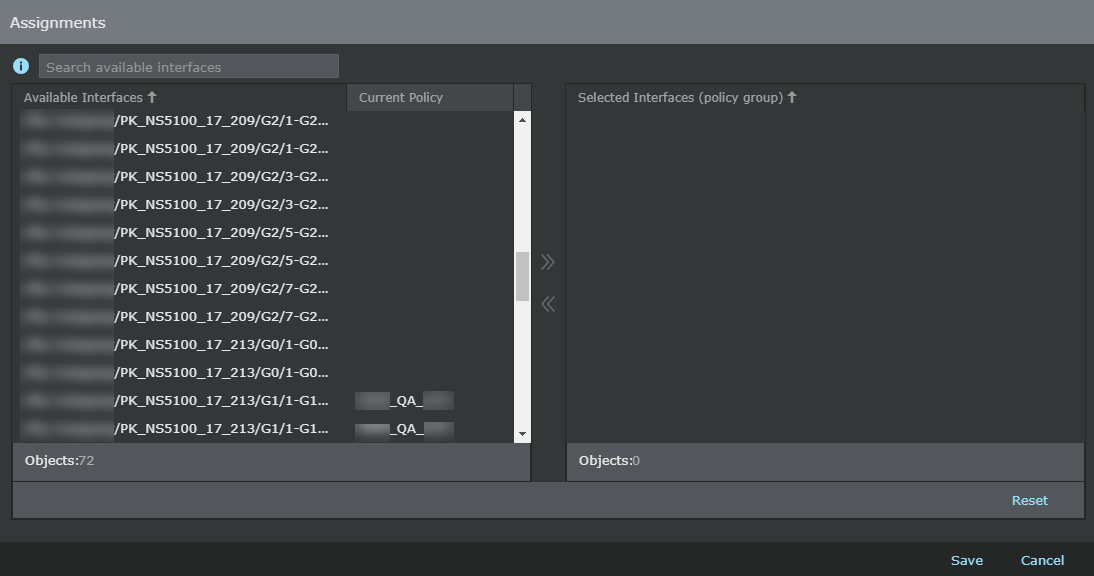

   Assign Interfaces






7. Select the required interface from the Available Interfaces column and add it to the Selected Interfaces (Policy Group) column.

8. Click Save.

   You are directed to the new policy window.
