Follow these steps to add Application Group rule object:
Upon specifying the options in the Properties tab and selecting Application Group from the rule object Type drop-down, click Next.

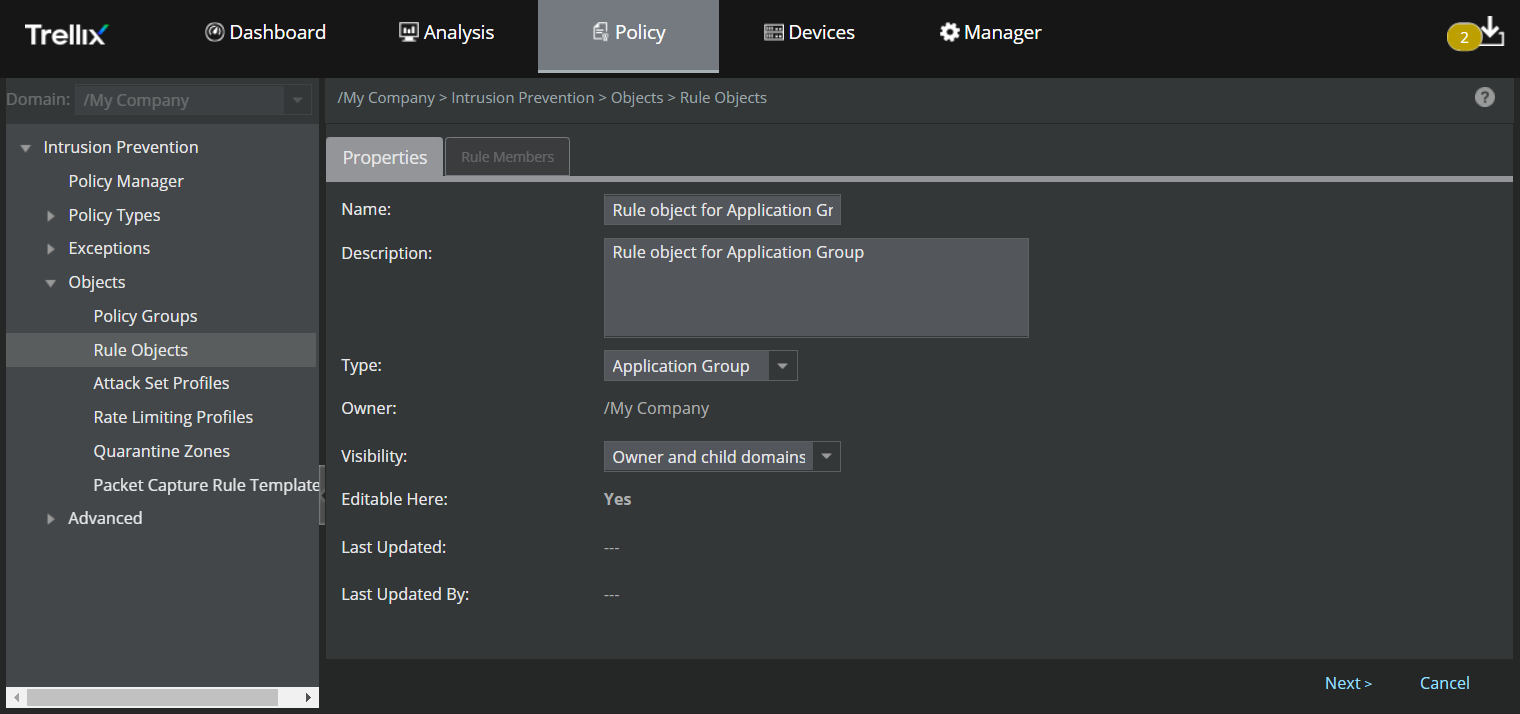

Create an Application Group rule object.png "GUID-09DA16CB-2415-4FE6-B8D3-8F8623158349-low.png")
The Rule Members tab is displayed.

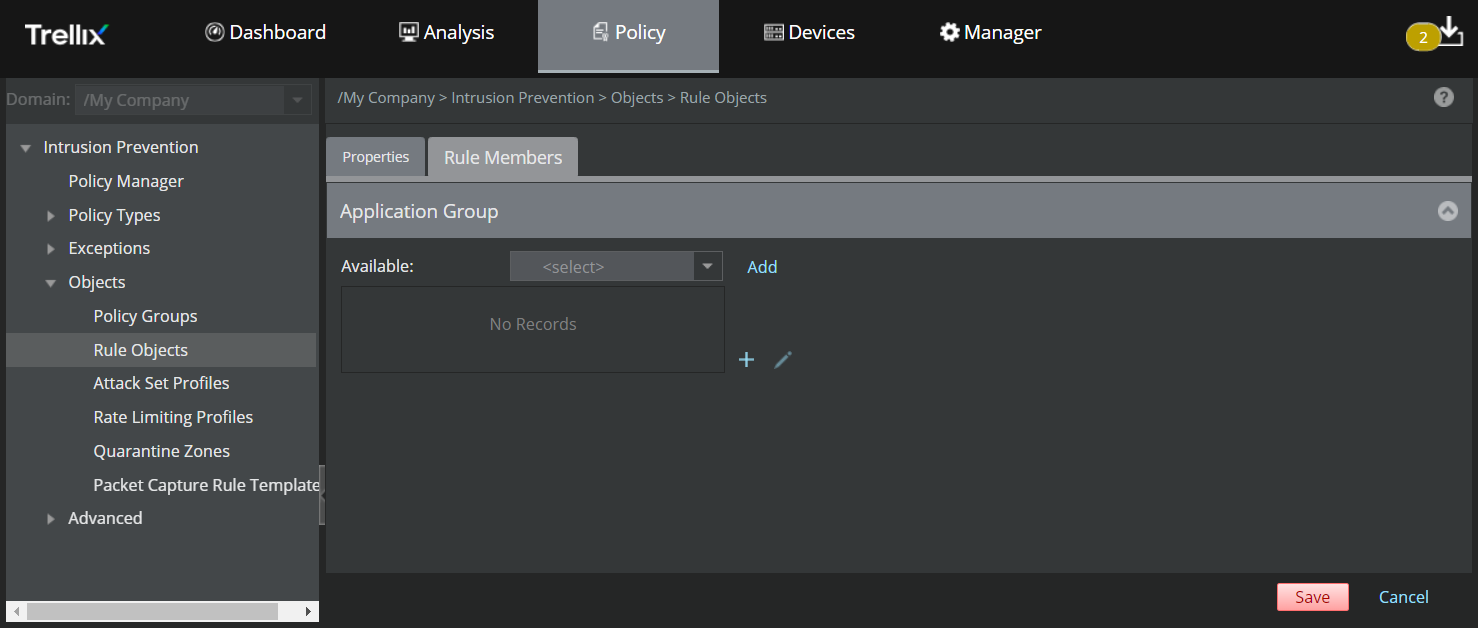

Add Rule Members.png "GUID-C96CD83D-EC7A-45FE-9998-D2075EFA5D6B-low.png")
The following table explains the options in the Rule Members tab.
Option
Definition
Available
Select a pre-defined application or an existing Application on Custom Port rule object from the Available drop down list
Add
Click this button to move the selected item to the Rule Members list
.png)
Click this icon to edit a rule member in the list
.png)
Click this icon to add a new Application on Custom Port rule object
.png)
Click this icon to remove a rule member from the list
Based on the above options, you can choose to add a rule member from the Available list or create a new rule object using the
icon and add it to the list.Upon adding the required rule members, not exceeding 10, click Save.
