Add hash values to the allow list

Select Policy → <Admin Domain Name> → Intrusion Prevention → Exceptions → File Hashes.

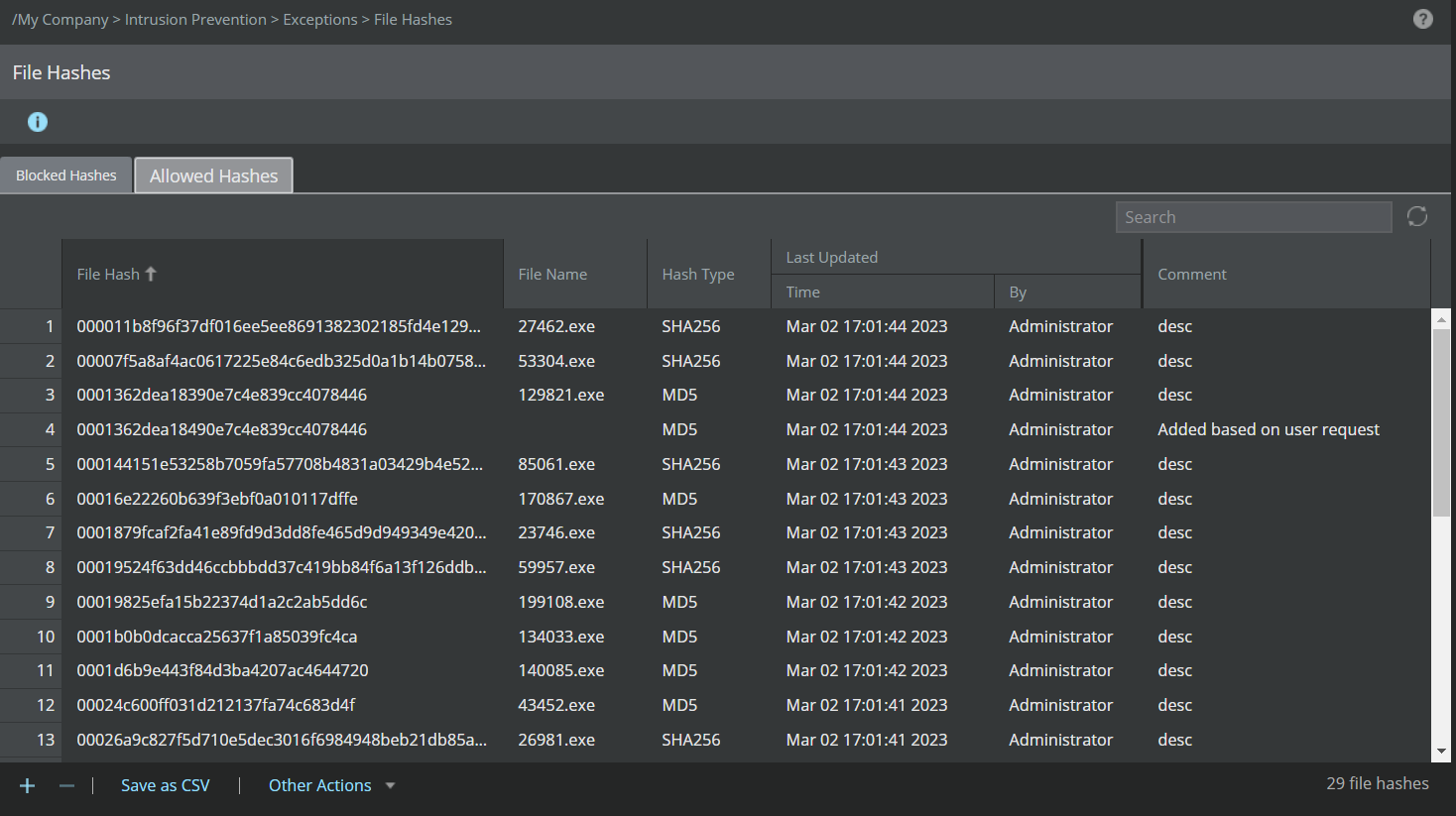

You can view the current list of allowed hashes on the Allowed Hashes tab of the File Hashes page.

Allowed Hashes

The following table describes the details displayed on the Allowed Hashes tab.

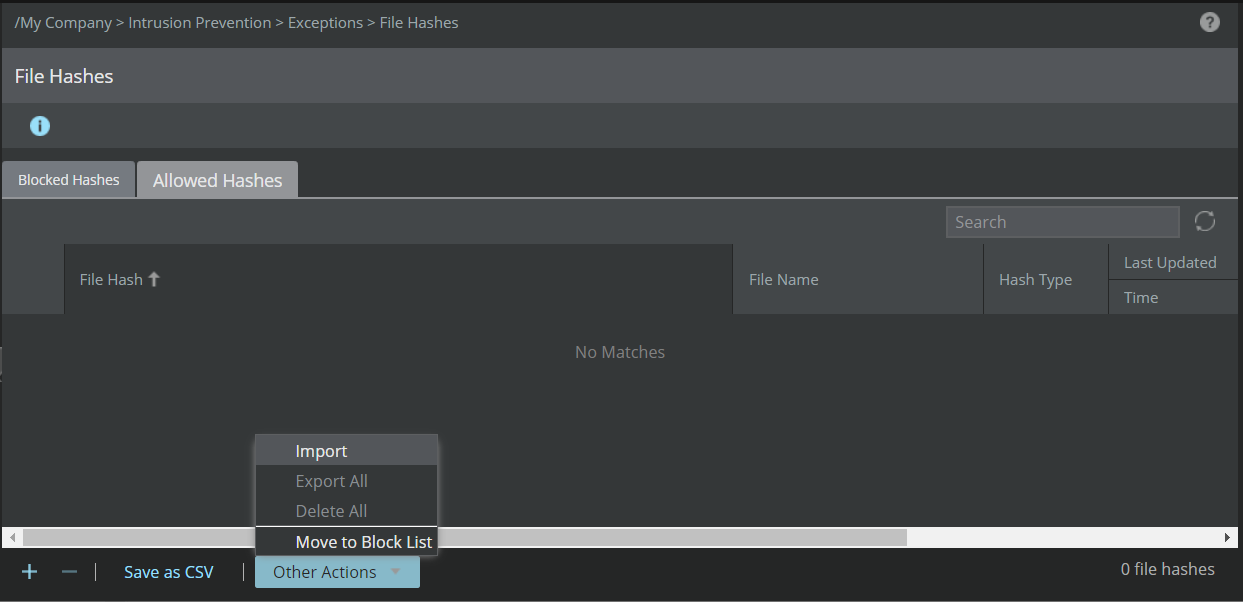

File hashes can be added through this page in two ways — using the Import option or the icon. To import a file containing the hash values, click Other Actions → Import.

Import from CSV window appears. Use the Append option to add a new list of hashes or to append a list of hashes to an existing list. Use the Replace option to remove the existing list of hashes and add a new list from the file being imported.

The file to be imported should be in the following CSV format.

<Name of the file with extension (like .exe, .com)>,<File size>,<Hash type>,<File hash>,<Description>

Example file format for MD5 hashes: Application.exe, 1024000, MD5, 30a4edd18db6dd6aaa20e3da93c5f425, textual description.

Example file format for SHA256 hashes: Service.exe, 1024000, SHA256, a6279afa088a2e200b3b222c3169e9dce332a08759512800b48bf038e47bf528, textual description. Also note that if you are adding multiple entries in the CSV file, each entry has to be in a new line.

The following is a sample for a CSV file with multiple file hashes.

The following table describes the details of the files to be imported in the CSV or XML format.

Note

If you import the same file hashes to allow list first and then to block list, the hashes in the allow list will be removed and added to the block list. Similarly, if you import the same file hashes to block list first and then to allow list, the hashes in the block list will be removed and added to the allow list.

Click Browse to locate the CSV file that contains the list of hashes you want to import.

Click Import upon selecting the CSV file.

To add a single file hash to the allowed hashes, click .

Click Save after entering the values in File Hash, File Name, and Comment. The Comment field is optional.

Note

The File Hash should be a 32 or 64 digit hexadecimal value depending on the hash type.

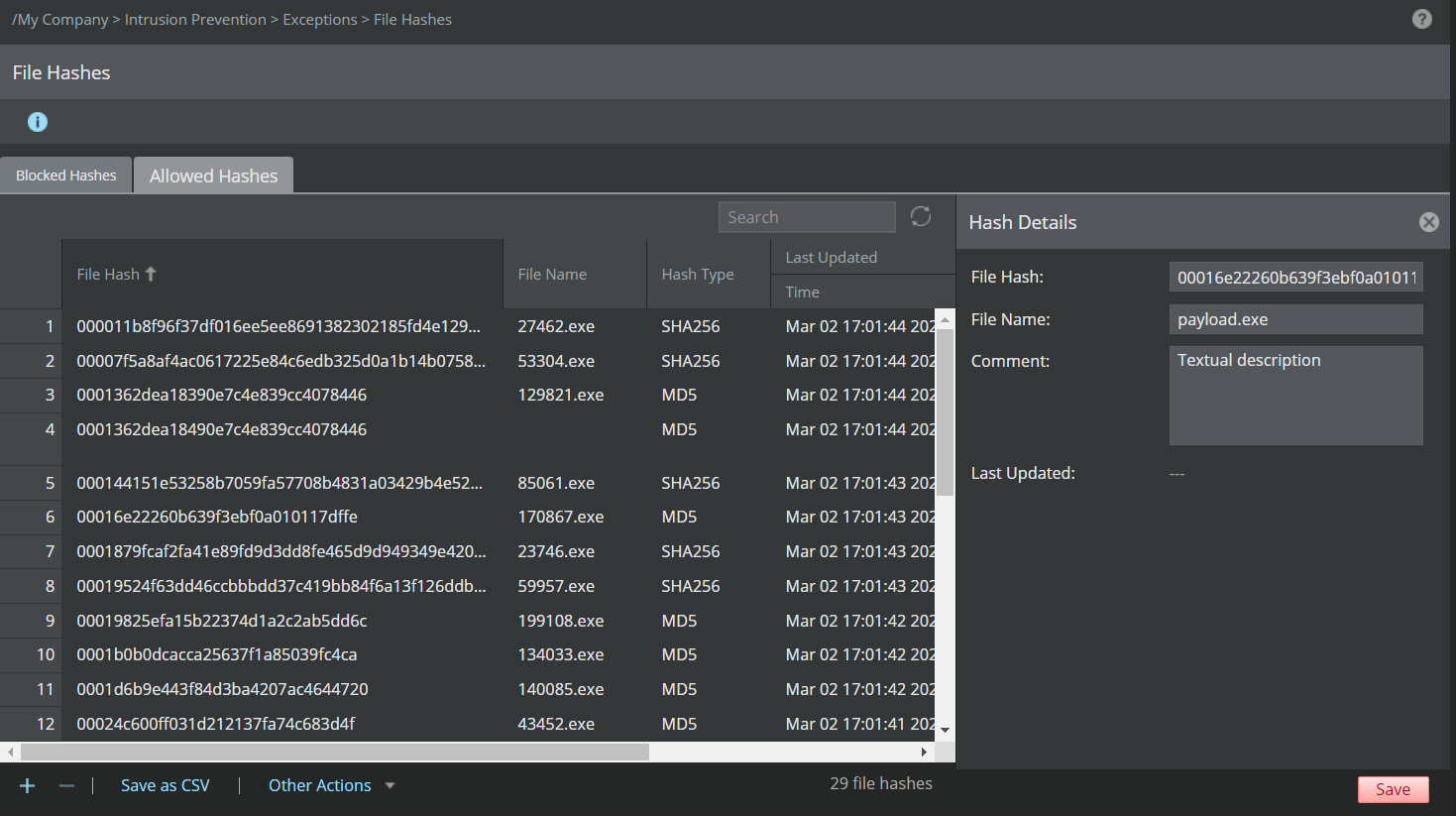

Add a single allow list file hash value

Note

• The Manager running on 11.1 Update 1 or later releases supports addition of up to 400,000 hash entries (allowed and blocked combined) with a limit of 200,000 per each hash type. Manager prior to 11.1 Update 1 release supports addition of only MD5 hashes up to 100,000 entries (allowed and blocked combined).

• Sensors prior to 11.1 Update 1 release do not support SHA256 hashes. The maximum number of hashes supported (cumulative of Blocked Hashes and Allowed hashes) by these Sensors is 100,000.

• Sensors running on 11.1 Update 1 or later releases support both SHA256 and MD5 hashes. NS-series Sensors support a maximum of 200,000 hashes for each hash type while the Virtual IPS Sensors support a maximum of 100,000 hashes for each hash type. If the Manager has both NS-series and virtual Sensors, entries over 100,000 in each hash type are pushed only to the NS-series Sensors. The push fails on virtual Sensors and a fault is raised which can be noticed in the Faults (Manager → Troubleshooting → Logs → Faults) tab.

• In case of heterogeneous environments, if the total MD5 hash entries exceed 100,000:

  • A limit exceed error can be seen in filetransfer.log during a bulk (full) update

  • A fault will be raised in the Faults tab and error count will be incremented at the Sensor level during an incremental update. Refer to show ab stats command for more information.

    Note

    A Full update is triggered when the total entries are more than 4000; else, an incremental update is triggered to all the Sensors connected to the Manager.

• In case MD5 and SHA256 hashes of the same file are added, the MD5 hash takes precedence over SHA256 hash of the file during analysis.

To export the allowed hashes from the Manager to a local system, click Other Actions → Export All.

To delete specific entries from the allow list, select them by holding the Shift or Ctrl key and clicking on the required rows. Then click .

The deleted hashes are now neither in the allow list nor in the block list.

To remove all the entries, select Other Actions → Delete All.

To move specific entries to the block list, select the entries and then select Other Actions → Move to Block List.
