Steps to add the condition to the example signature:
Condition 1 is added automatically according the URL you provided.
Click Condition 1 so that it is highlighted.
Click AND in the Comparisons section.

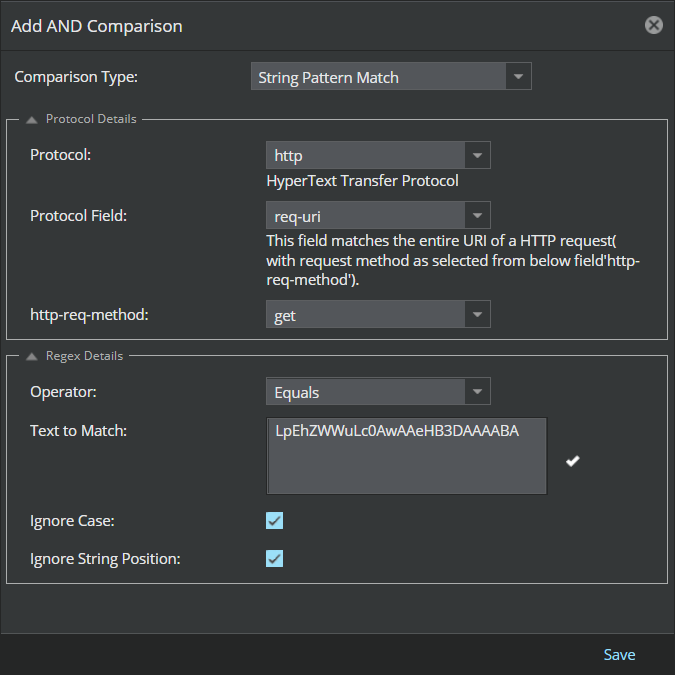

The Add AND Comparision dialog opens.
String Pattern Match.png "GUID-6008FCAF-4CEC-480C-AAFA-52F0A49C4882-low.png")
For this example, select String Pattern Match in the Comparison Type drop-down menu.
Select http from the Protocol drop-down menu.
Because you selected HTTP, the Custom Attack Editor displays the HTTP-specific protocol fields on the following screen.
Configure the fields for the comparison you have chosen.
For this example, specify req-uri for the Protocol Field. This specifies that the Sensor should search in the URI of the request packet.
Select get as the http request method.
From the drop-down list in the Regular Expression Operator section, select the matching criteria as Equals which means that the comparison criteria must be equal to the regular expression entered.
Type the pattern to match in the Text to Match text box.
For this example, the pattern to match is "LpEhZWWuLc0AwAAeHB3DAAAABA".
Click
.png)
to verify that your expression is a valid string, and all required options are represented. Click OK to close the validation message window.(Optional) Deselect Ignore Case and Ignore String Position check boxes.
Click Save.
Your comparison appears under Condition 1.
Click Add in the New Custom Attack window.

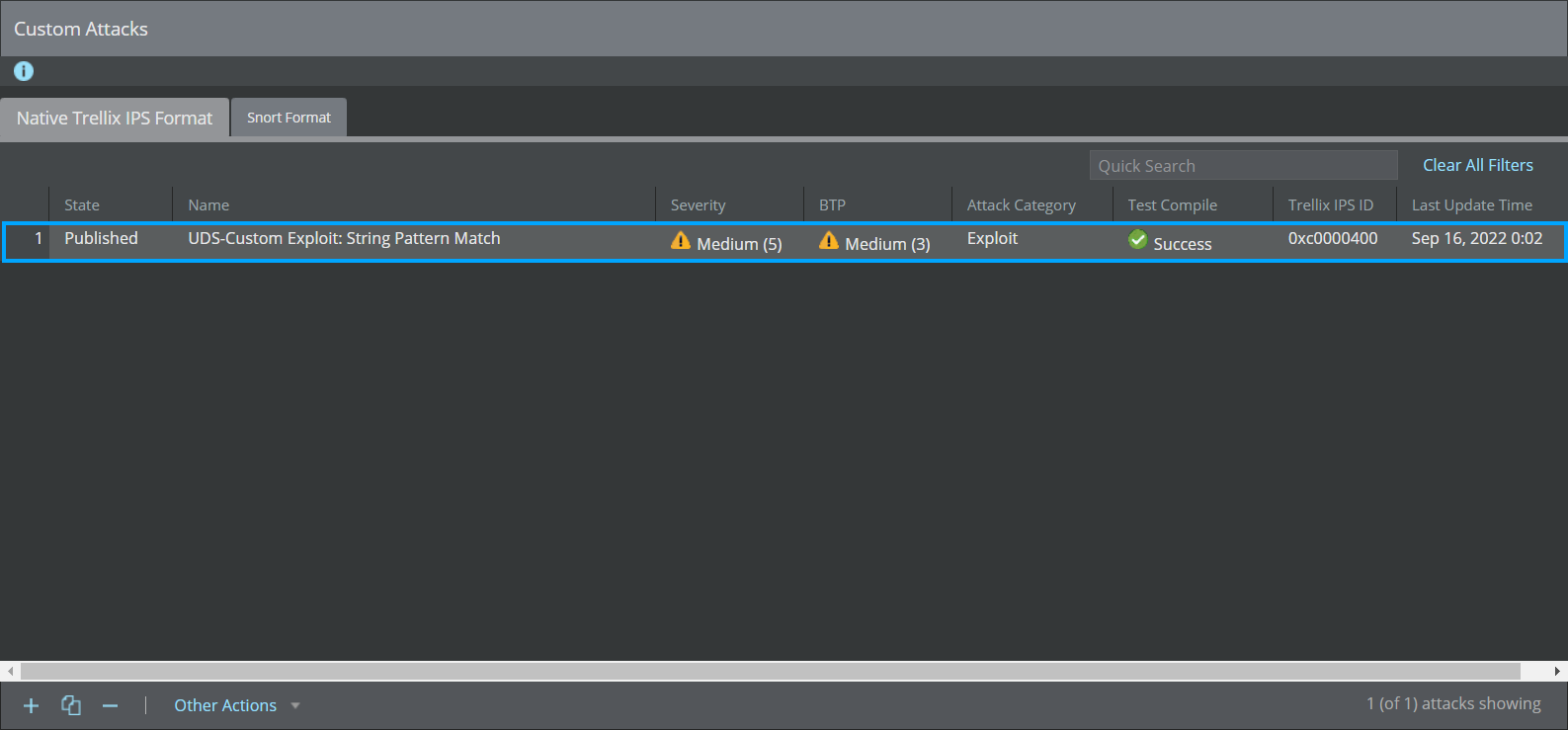

Verify that the attack definition is listed on the Native Trellix IPS Format tab.
.png)
Click Save to save the Trellix IPS Custom Attack in the Manager server database.
Make sure the Trellix IPS Custom Attack is saved in the database and also published in the policies.
