Analyzing attack details using matching tactic, technique, or sub-technique

You can use any tactic, technique, and/or sub-technique displayed over the MITRE ATTACK View page to delve deeper into the attack data for further analysis. With the Show only matching attacks toggle button set to ON (default), the page displays all tactics as column headings within the grid view for which attack entries exist in the Attack Log. You can apply further filters (IP address and/or attack severity level) using the button to get a more filtered and customized view of the adversarial tactics shown in the page.

Analyzing attack details using matching technique

Click any hyperlinked technique under a specific tactic column in the MITRE ATTACK View page for which you want to view the attack details. It will redirect you to the Attack Log page with the selected technique applied as the filter. The Clear All Filters button color in the Attack Log page changes to orange which indicates that the filter is active.

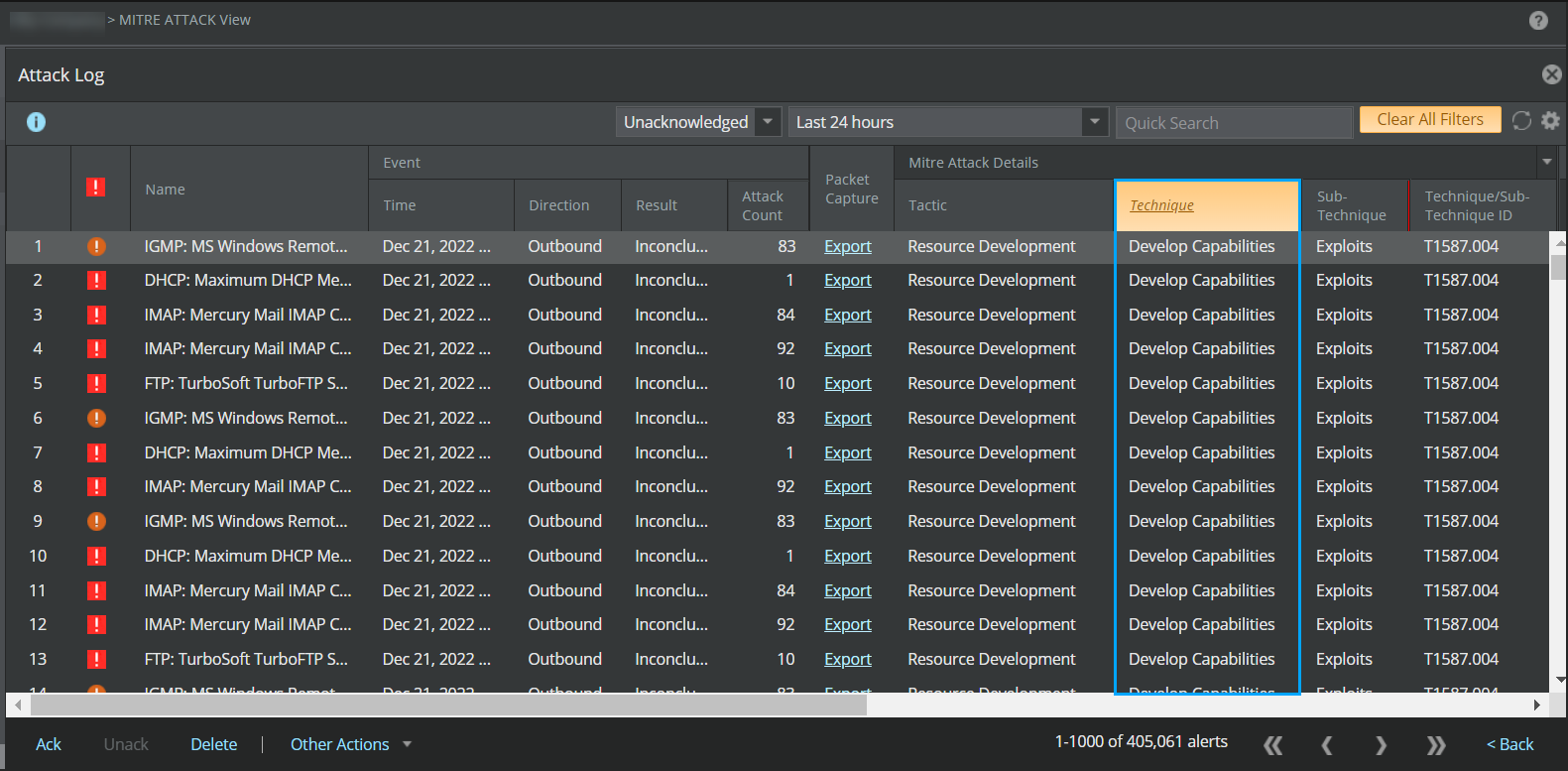

The figure below shows the Attack Log page view after clicking the hyperlinked technique Develop capabilities under the tactic Resource Development in the MITRE ATTACK View page.

Attack Log page view with technique filter

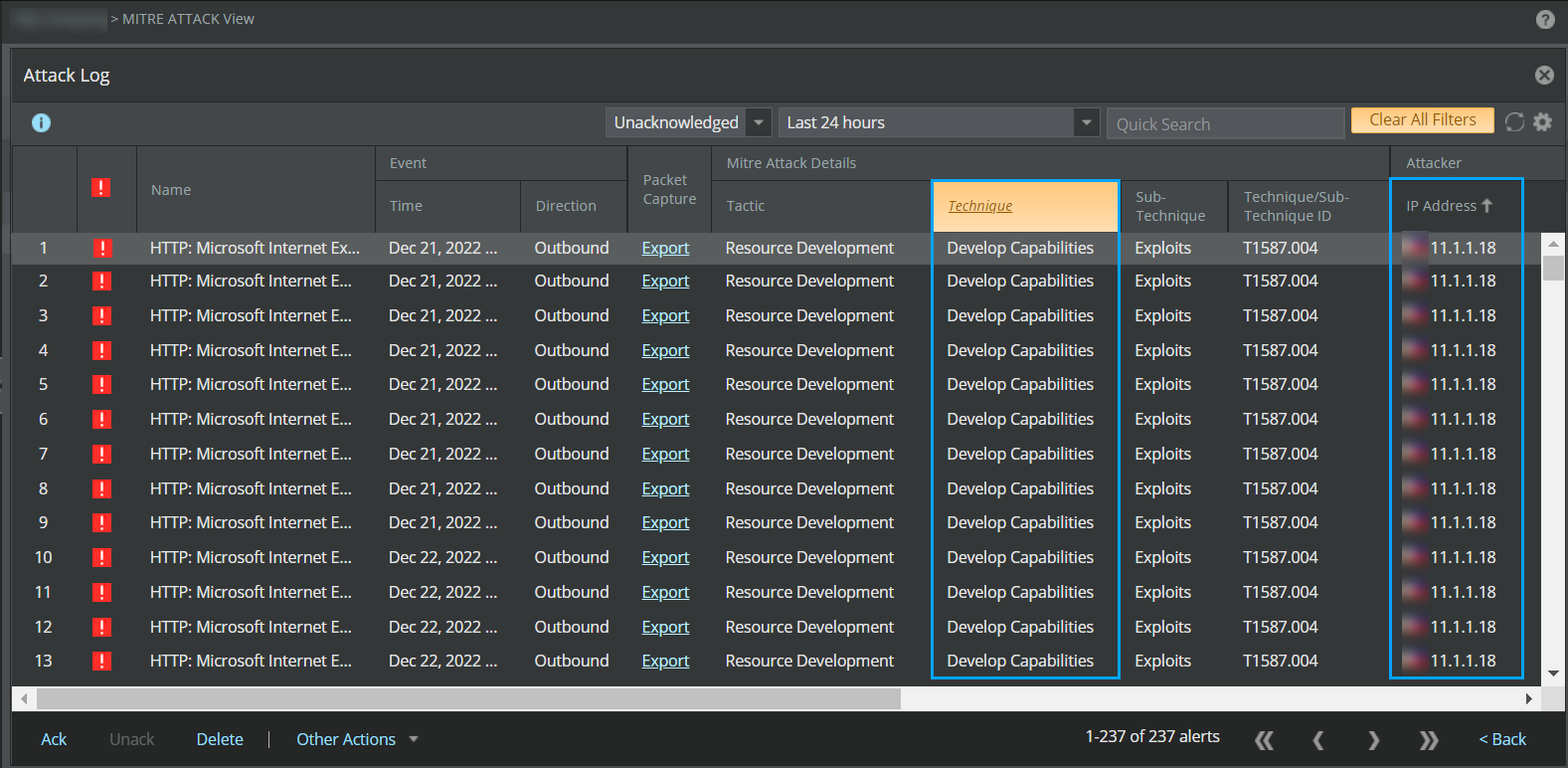

You can also apply the filters based on IP address and/or attack severity level in the MITRE ATTACK View page and then click any matching highlighted technique to view more filtered data in the Attack Log page. For example, the figure below shows the attack entries matching with technique Develop Capabilities and IP address 11.1.1.18 in the Attack Log page.

Attack Log page view with technique and IP filter

Analyzing attack details using matching sub-technique

Expand technique under a specific tactic column in the MITRE ATTACK View page to view the corresponding sub-technique(s) for which you want to view the attack details. You can then click any sub-technique of your preference. It will redirect you to the Attack Log page with the selected technique and sub-technique applied as filters.

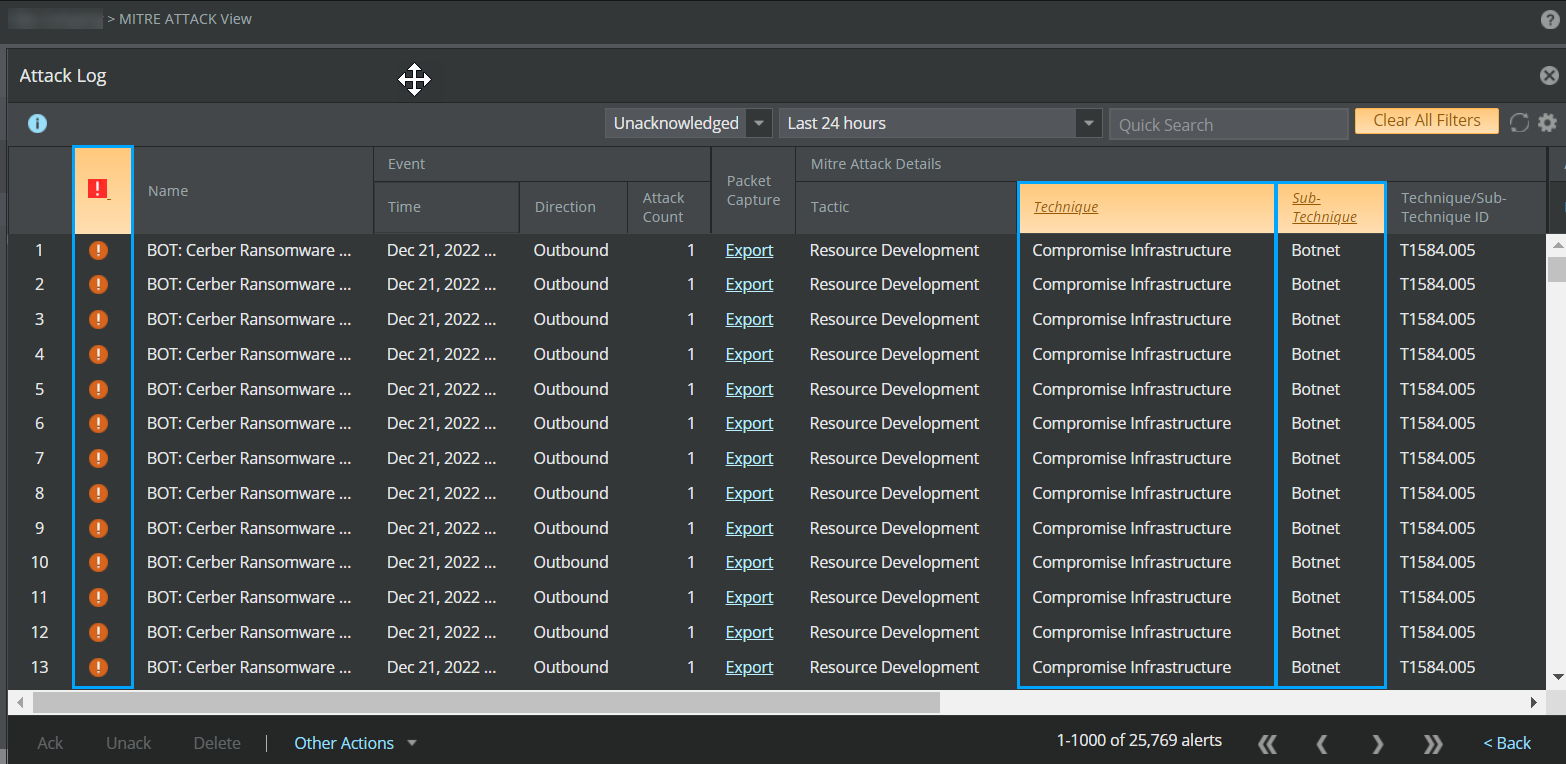

You can also apply the filters based on IP address and/or attack severity level in the MITRE ATTACK View page to get more filtered attack entries in the Attack Log page. For example, when medium attack severity is chosen as filter in the MITRE ATTACK View page, clicking the hyperlink for sub-technique Botnet under the corresponding technique Compromise Infrastructure shows specific attack entries in the Attack Log page with the selected technique, sub-technique, and severity level applied as filters.

Attack Log page view with technique, sub-technique and attack severity filter

Note the following:

You can export and save the list of filtered data as a PDF file or CSV file from the Attack Log for future reference. To export, click Other Actions, select Save Attack Log as, and click the format in which you want the filtered data to be exported.

Click or icon to close the Attack Log and go back to the MITRE ATTACK View page.
