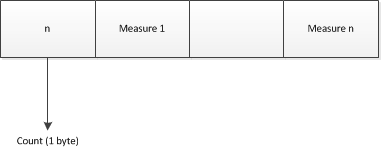

The anomaly measure data block contains a set of measures. The first byte in the block represents a count which tells how many measures are in the data block. The measures are followed by the count byte as shown in the following figure.
Anomaly measure data block
.png "GUID-6B95FC24-31CD-4840-AC0B-FF0B1606A709-low.png")
Each measure contains two sets of floating point (4 bytes) values. The first set represents the bins and the second set represents the bin-count data values.

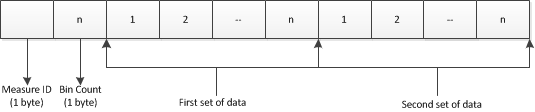

The first byte in the measure contains the measure id, the second byte contains a count that tells how many four byte values are in each set, and rest of the bytes contain floating point values as shown in the following figure.
Measure
.png "GUID-F8EE5A44-EA7C-4DAD-BF65-AE956B3968A1-low.png")
