Appendix: Audit Log Records

This section describes the audit log records in relation to a user's activities. The general format of audit records is:

Timestamp, Appliance Name, Process/Function, Message

An example of an audit record is:

NSMAppliance sshd[3694]: Disconnecting: Too many authentication failures [preauth]

When displayed in the GUI, this information is further broken out into:

Date, Admin Domain, User, Attack Category, Action, Result, Description

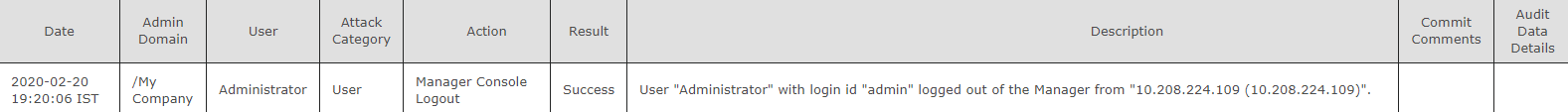

An example of an audit record displayed in the GUI is:

The following table documents the messages within audit log records generated by Trellix Intrusion Prevention System.

Audit Log Records
Action	Log Message
Changes to the system time by an Administrator	Time has been changed
Communication between the Manager and Sensors	Enabling: Successfully added sensor "sensor_name" Disabling: Successfully deleted sensor "sensor_name"
Failure to establish a TLS Session	Certificate having missing Extended keys Mismatch between configured Server Name and Subject Alt Name in Imported certificate The connection to syslog server IP_Address:port_number failed. Error: Syslog TCP connection failed.
Failure to establish an HTTPS Session	Mismatch between configured Server Name and Subject Alt Name in Imported certificate
Failure to establish an SSH session	Disconnecting: Too many authentication failures [preauth] Unable to negotiate with IP_Address port port_number: no matching host key type found. Their offer: host_key_type [preauth] Unable to negotiate with IP_Address port port_number: no matching key exchange method found. Their offer: key_exchange_method [preauth]
Management activities of system data	Read audit log Successfully set Session Timeout Logon Banner Configuration updated Successfully set Password Content, Configuration is …
Trusted connections	Initiation: Pktlog Channel back up. Clear the Pktlog Channel Down event of sensor sensor Alert Channel back up. Clear the Alert Channel Down event of sensor sensor Syslog Client - Added to Retry Q Syslog Client - Flushing and Shutting down Request for Authentication for User name=Username Termination: The link on Port: Port_identifier is Down Count: number. The link between this port and the external device to which it is connected is down. Received disconnect from IP_Address port port_number: disconnected by user User "User Name" with login id "Username" logged off Trellix IPS Manager from "Hostname (IP_Address)" Failure: Certificate having missing Extended keys Mismatch between configured Server Name and Subject Alt Name in Imported certificate Received fatal alert: handshake_failure Connection refused (Connection refused) Disconnecting: Too many authentication failures [preauth] Unable to negotiate with IP_Address port port_number: no matching host key type found. Their offer: hostkey_type [preauth] Unable to negotiate with IP_Address port port_number: no matching key exchange method found. Their offer: key_exchange_method [preauth]
Unsuccessful attempt to validate an X.509 certificate	Certificate having missing Extended keys Mismatch between configured Server Name and Subject Alt Name in Imported certificate
Unsuccessful login attempts limit is met or exceeded	Login failed: Maximum allowable login attempts number have exceeded
Use of the identification and authentication mechanism	Postponed keyboard-interactive/pam for username from IP_Address port port_number ssh2 [preauth] Postponed publickey for username from IP_Address port port_number ssh2 [preauth] Accepted keyboard-interactive/pam for username from IP_Address port port_number ssh2 error: Could not load host key: path_to_hostkey_file Failed keyboard-interactive/pam for username from IP_Address port port_number ssh2 Failed publickey for username from IP_Address port port_number ssh2: RSA SHA256:public_key_value User "username" failed to log in to Trellix IPS Manager from "Hostname (IP_Address)". Login URI: /intruvert/jsp/module/Login.jsp. URI referrer : https://Hostname//intruvert/jsp/module/Login.jsp , protocol : HTTP/1.2 Unknown login ID "Username". Login failed from "Hostname (IP_Address)". Login URI: /intruvert/jsp/module/Login.jsp. URI referrer : https://Hostname//intruvert/jsp/module/Login.jsp , protocol : HTTP/1.2 Starting Session number of user Username Trellix IPS Manager Login failed at timestamp
User session terminated	· Removed session number. User "User Name" with login id "Username" logged out of the Manager from "Hostname (IP_Address)". Close session: user Username from IP_Address port port_number id number
