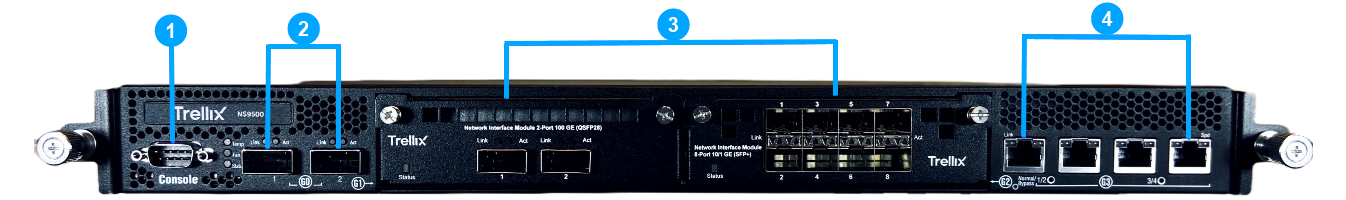

Correlate the pictures with the information following it to understand the components of an NS-series Sensor.
Console port (1)
QSFP28 100/QSFP+ 40 Gigabit Ethernet ports (2)
Two slots for I/O modules (Any combination of the interface modules can be used)
Note
The supported interface modules need to be purchased separately.
QSFP28 100/QSFP+ 40 Gigabit Ethernet ports (2)
QSFP+ 40 Gigabit Ethernet ports (4)
QSFP+ 40 Gigabit Ethernet ports (2)
SFP/SFP+ 1/10 Gigabit Ethernet Monitoring ports (8)
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (6)
RJ-45 100/1000/10000 Mbps Ethernet Monitoring ports (4)
1/10 Gigabit Ethernet Monitoring ports (4)
100/40 Gigabit SR MTP/MPO passive fail-open (2)
RJ-45 100/1000/10000 Mbps Ethernet Monitoring ports (4)
The supported transceiver modules are QSFP28 (MM, SM, and DAC), QSFP+ (MM, SM, and DAC), SFP+ (MM and SM), SFP Fiber (MM and SM) and SFP Copper.

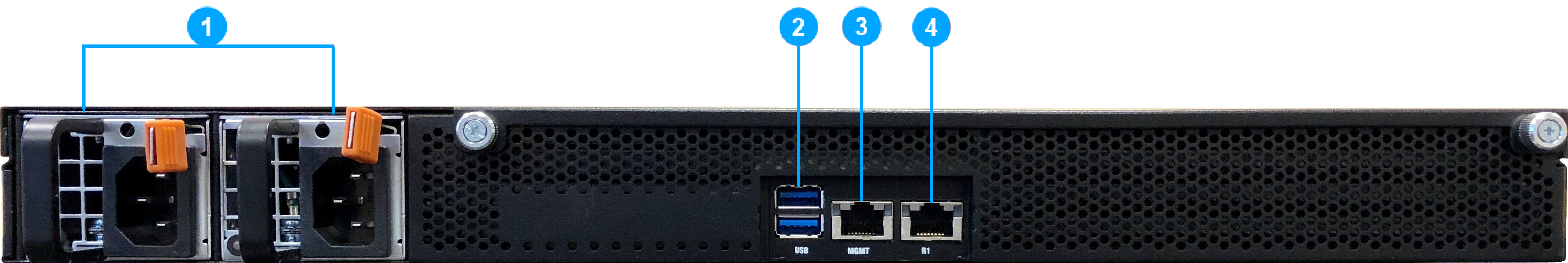

Power supply A/B (Pwr A/Pwr B)
USB ports (2)
RJ-45 1000/10000 Management port (Mgmt) (1)
RJ-45 1000/10000 Response port (R1) (1)
