Correlate the pictures with the information following it to understand the components of an NS7600 Sensor.

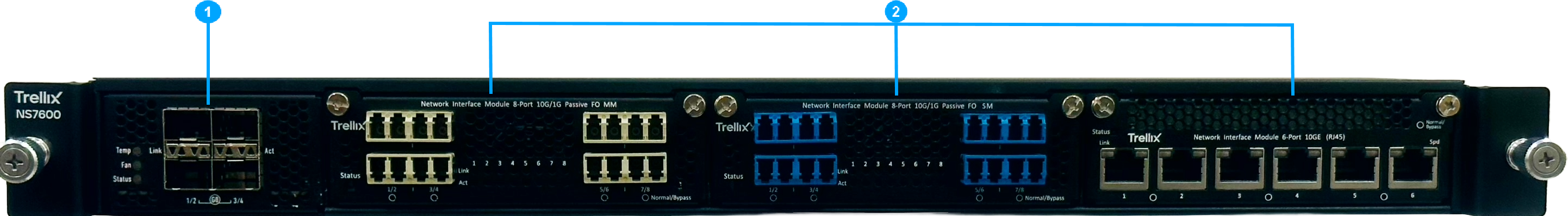

Sensor front panel
4 SFP/SFP+ 1/10 Gigabit Ethernet ports in built-in G0 module. These ports support 1 Gbps (SFP) copper or fiber (SX/LX), and 10 Gbps (SFP+) (SR and LR).
Three slots for interface modules in G1, G2 and G3 (Any combination of the interface modules can be used):
6-port RJ45 10/1 Gigabit Ethernet interface module with built-in fail open
8-port 10/1 Gigabit fiber (SM and MM) interface module with built-in fail open
Note
The supported interface modules need to be purchased separately.
Caution
Apart from the network interface modules mentioned above, no other interface modules are compatible with NS7600 Sensor.
Transceiver modules are supported in built-in G0 module only. Supported transceiver modules are SFP+ (SM and MM), SFP Fiber (SM and MM), and SFP Copper.

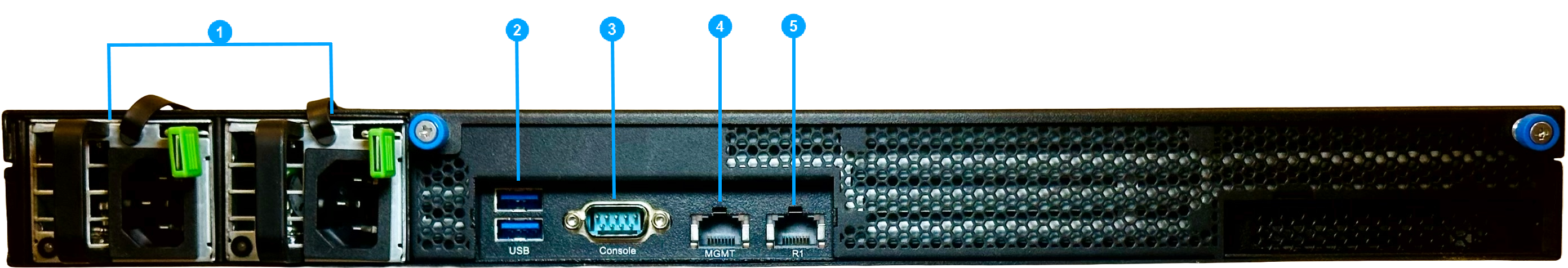

Sensor rear panel
.png "IMG_1871_7600_BackPanel_latest.png")
Power supply A/B (Pwr A/Pwr B)
USB ports (2)
Console port
RJ-45 1000/10000 Management port (Mgmt)
RJ-45 1000/10000 Response port (R1)
Note: Power supply is included with an NS7x00 Sensor. The supply uses a standard IEC port (IEC320-C13). Trellix provides a standard, 2m NEMA 5-15P (US) power cable (3 wire). International customers must procure a country-appropriate power cable.
