Configuration Reports are based on pre-defined conditions and detail your system configuration settings. The Configuration reports are available in Manager → <Admin Domain Name> → Reporting → Configuration Reports.
You can generate these reports to view your current software and signature versions, the configuration and status of a Sensor, policy settings, and so forth. The report generation time is the time displayed when a report has been executed. This is displayed according to the time zone. Several pre-formatted reports are provided for simple information gathering.
.jpg "ConfigR_11_1M8.jpg")

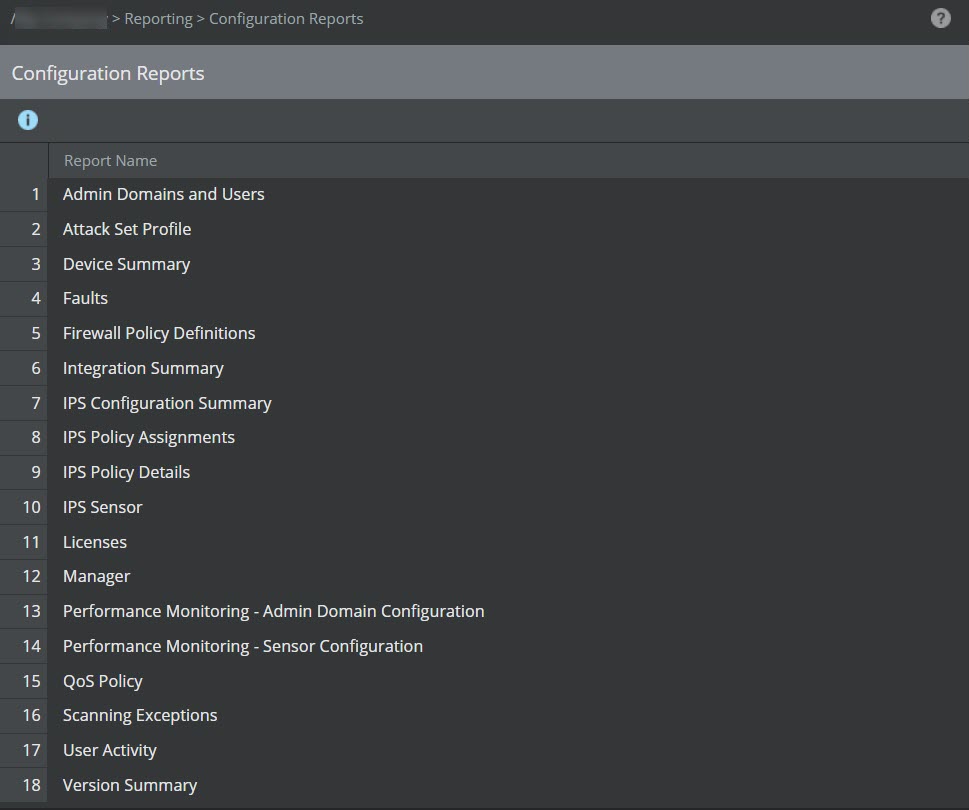

The available configuration reports are:
Admin Domain and Users Report — Information on the admin domains and users controlled through your Manager.
Attack Set Profile Report — Information on all of the attack sets available for application.
Device Summary Report — Information about all the devices configured.
Faults Report — Information on Manager and Sensor fault logs.
Firewall Policy Definitions Report — Provides a detailed view of the selected Firewall policy, its Access Rules, and the Sensor resources to which it is assigned.
Integration Summary Report — Provides a summary of configurations done in the Manager to integrate with other Trellix products, such as ePO - On-prem.
IPS Configuration Summary Report — Provides a detailed view of the IPS configuration settings made by the user.
IPS Policy Assignment Report — Provides a detailed view of the IPS policies available for application.
IPS Policy Details Report — Provides a detailed view of the IPS policies available for application.
IPS Sensor Report — Information on the policies applied to one or more Sensors.
Licenses— Information about the System Licenses, Proxy Decryption Licenses, and Virtual Sensors licenses.
Manager Report — Configuration information related to the notification mail server, proxy server, and MDR.
Performance Monitoring - Admin Domain Configuration Report — Displays information on admin domain wise configuration made in the Manager
Performance Monitoring - Sensor Configuration Report — Displays information on Sensor configuration settings made in the Manager
QoS Policy — Information on all the Quality of Services (QoS) policies available for application.
Scanning Exceptions Report — Displays information of the scanning exceptions that are configured on the Sensor's VLAN, TCP, or UDP port.
User Activity Report — Information on the actions performed by Trellix IPS users.
Version Summary Report — Information on the versions of software and signatures in use.

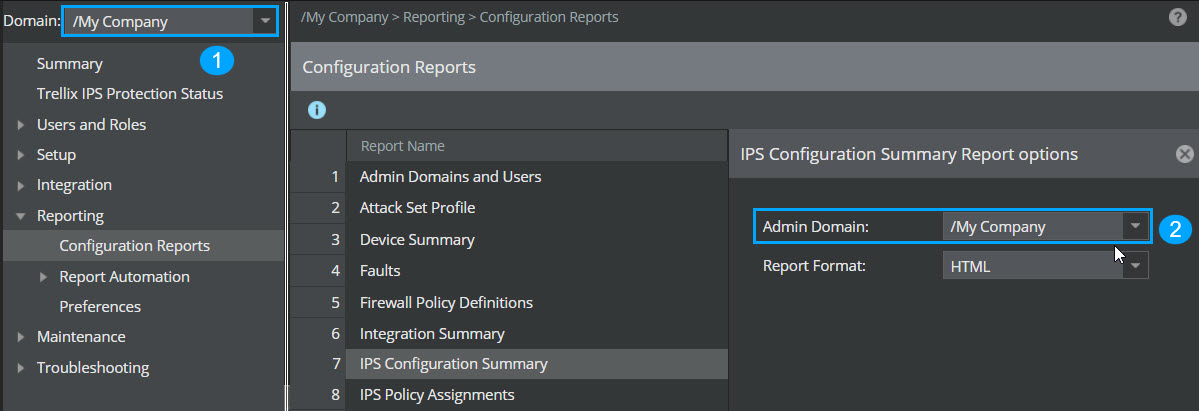

This figure shows the difference between the admin domain filter available in the left pane, and the admin domain filter for the reports.
.jpg "Admin_Domain_Filters248-11_1M8.jpg")
1 — This admin domain filter has no impact on the reports generated.
2 — This is the admin domain filter that you can use to generate the report based on the admin domain selected.
