Configure a Controller in the Manager

Steps:

1. In the Manager, go to Devices → <Admin Domain Name> → Global → Device Manager. The Device Manager page is displayed.

2. Select the vIPS Controllers tab.

   On the vIPS Controllers tab, all configured Controllers details are displayed.

   Column	Definition
   Controller Name	Displays the name of the Controller - This icon is displayed if the cloud details are not configured for the Local Controller. You need to enter Cloud account to make Controller configuration complete. In case the cloud account is incomplete, the invalid icon will be always displayed.
   Description	Displays additional information for the Controller
   Instances
   Hostname (local IP address)	Displays the name or the IP address of the Controller Server. The icon before the Controller IP address displays the status of the Controller. The status can be one of the following: Online Disconnected
   Controller/Probe Software	Displays the software version of the Controller and the vIPS Probe
   Cloud Access	Displays the name of the cloud service provider
   Last Updated
   Time	Displays the time when the Controller was last updated
   By	Displays the user who modified the Controller
   	Refresh the status of all the Controllers.
   Search	Enter the keyword to search for the required Controller.
   	Create a new vIPS External Controller.
   	Deletes a Controller
   Save as CSV	Creates a .csv list of the list of Controllers
   Other Actions
   Download Controller Logs	Downloads the logs for the Controller The Controller logs are downloaded in the form of a zip file.
   View VMs	To view the VMs managed by the Controller.
   Configure a public Manager name or IP	Assigns a public IP address or a domain name for the Manager Enable the Use a Public Manager Name or IP in the Public Manager Name or IP dialog box. Enter the public IP address or a domain name in the Public Manager Name or IP text box and click Save.
   <Number> Controllers	Displays the total number of Controllers available in the Manager

   Note

   For AWS, the elastic IP address assigned to the Controller is displayed. If an elastic IP address is not assigned in case of a standalone Controller, the private IP address of the Controller is displayed.

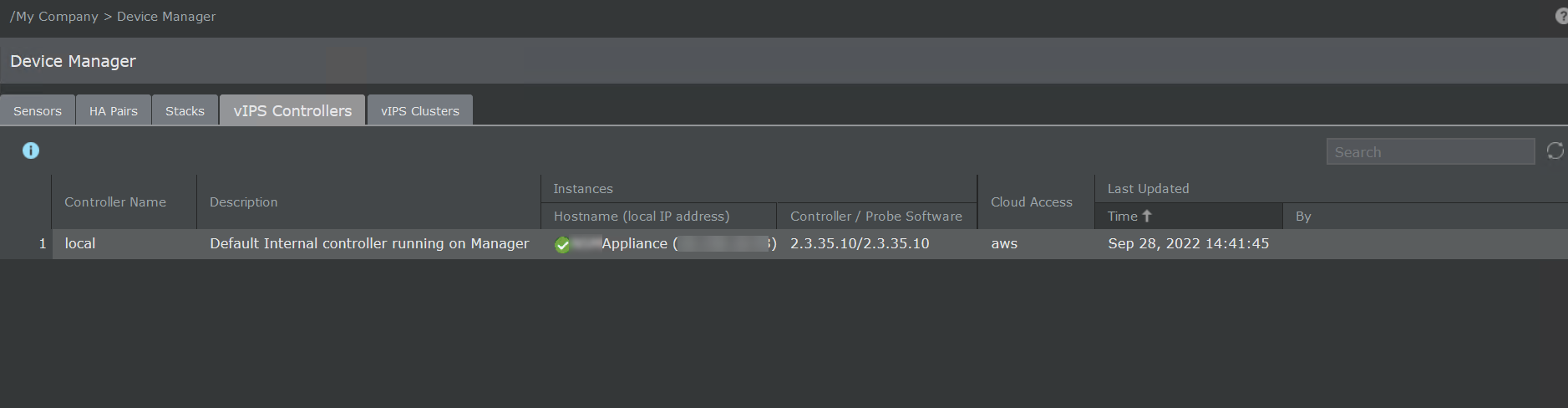

   vIPS Controllers






3. (Optional) To create a new External Controller, click .

   The Controller Details panel appears where you can provide credentials for the cloud environment, the IP address, and the corresponding subnet details of the Controller.

4. Enter the required details:

   Option definitions

   Option	Definition
   Controller Name	Enter a unique name for the Controller. Note This is field is editable only for External Controller. Note The minimum length for name is 1 character. The name can contain up to 50 alphanumeric (upper or lower case letters) characters, including hyphens and underscores. The name must begin with a letter.
   Description	Enter the description for the Controller. Note This is field is editable only for External Controller. Note The minimum length for description is 1 character. The maximum allowed character length is 150 characters.
   Shared Key	Enter a secret key for the Controller. Note This is field is available only for External Controller.
   Confirm Shared Key	Re-enter the secret key for the Controller. Note This is field is available only for External Controller.
   Public Manager Name or IP	Public IP address or the domain name of the Manager. To assign a public IP address or a domain name for the Manager, click Other Actions → Configure Manager's Public IP Address, select Use a Public Manager Name or IP. Enter the public IP address or the domain name of the Manager in the Public Manager Name or IP text box and click Save.
   Last Updated	It is blank when creating the Controller for the first time. For an existing Controller, it displays the date, time, and user who last updated the Controller settings.
   Trellix Vitual IPS Clusters	It is blank when creating the Controller for the first time. For an existing Controller, it displays the list of Clusters assigned to this Controller.
   Cloud Access
   	Add a Cloud account. The Manager uses the following methods to access a Cloud account: Access Key: Access Key and Shared key is used to access the AWS account. Use this method if you are running the controller in another cloud environment and not in the AWS environment. IAM Role: IAM role associated with the Controller is used to access the instance. Once the Cloud account details are configured, add the Amazon Resource Name (ARN). This is required if cross-account access is required for the Controller. By using the Cloud account credentials, the Manager discovers and lists all the instances available in the VPC of the Cloud account. You can view the list of instances at Analysis → <Admin Domain Name> → Virtual Machines.
   	Edit a Cloud account. You can also add multiple AWS accounts by clicking and adding additional ARN details.
   Instance Note Only after the Controller establishes trust with the Manager, the below values be populated.
   Status	The icon displays the status of the Instance. The status can be one of the following: Online Disconnected
   Hostname	Displays the name of the Controller.
   Name Tag	Displays the tag of the Controller.
   Private IP Address	Displays the private IP address of the Controller.
   Public IP Address	Displays the public IP address of the Controller.
   Instance ID	Displays the ID of the Controller.
   Cloud	Displays the Virtual Cloud network details of the Controller.
   Region	Displays the Region of the Controller.
   Controller Software	Displays the Controller software version.
   Probe Software	Displays the vIPS Probe software version.
   Save	Click to save the settings.

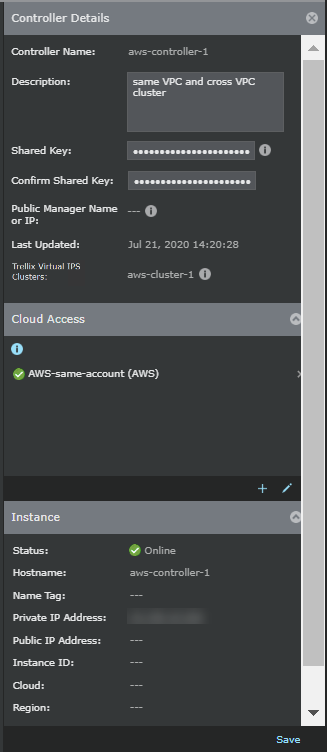

   Controller details panel for AWS






   If you have selected Amazon as the Cloud Environment, the following details are displayed:

   Option	Definition
   Cloud Environnment	Amazon
   Region	Select the name of the region in which your Controller resides.
   Access Method	Select one of the methods given below to access the AWS environment: Access Key: Access Key and Shared key is used to access the AWS account. Enter the following details: Access Key — Enter the Access Key for API access of your AWS account. This key should allow minimum AmazonEC2ReadOnlyAccess. Secret Key — Enter the Secret Key associated with the Access Key. Detected IAM Role — Displays the IAM role associated with the Manager
   Amazon Resource Name (ARN) Note The fields for ARN are optional. These fields are used only when you wish to configure cross account access.
   Name	Enter the name associated with the ARN.
   Role ARN	Enter the ARN value associated with the role to access the AWS environment.
   Save	Click to save the settings.

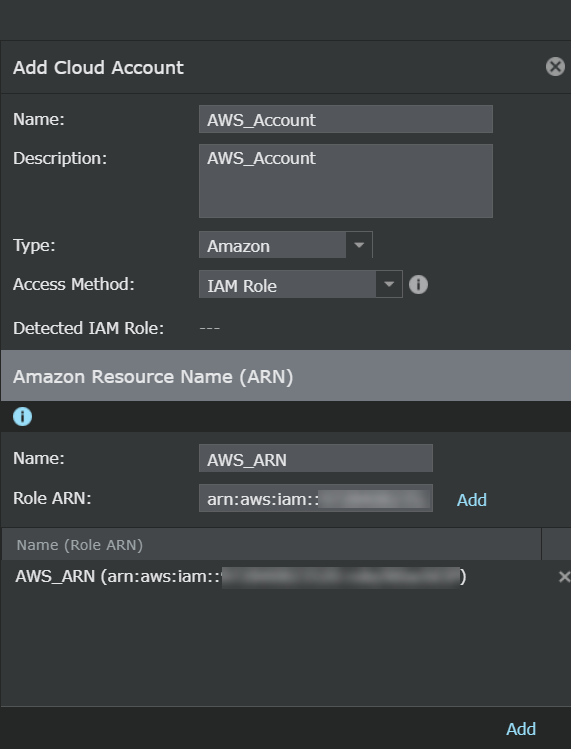

   Controller details panel for AWS






5. To configure multiple AWS account complete the following steps:

   1. Create the IAM role to attach the Manager.

   2. Create and Inline Policy for the IAM role as given below.

      {
          "Version": "2012-10-17",
          "Statement": [
              {
                  "Sid": "VisualEditor0",
                  "Effect": "Allow",
                  "Action": [
                      "ec2:DescribeInstances",
                      "ec2:DescribeAddresses",
                      "ec2:DescribeInstanceStatus",
                      "sts:AssumeRole"
                  ],
                  "Resource": "*"
              }
                      ]
      }

   3. For multiple AWS account, you need to create a role in the second account and create a policy in the first account user/role so that the user/role can assume the user/role in the second account. In the main AWS account, configure the below policy to the account.

      multiaccount__account1assumePolicy (Custom/Inline Policy – to assume role in second account)
      {
          "Version": "2012-10-17",
          "Statement": [
              {
                  "Action": "sts:AssumeRole",
                  "Resource": "arn:aws:iam::xxxxxxxxxxxxx:role/account2role2020-08-01_11-31-13-367",
                  "Effect": "Allow"
              }
          ]
      }


      Option	Definition
      Action	The action that the user can perform in other account.
      Effect	The effect for the action for the user.

   4. For cross account access in the second AWS account, enter the ARN of user/role in the first account in the Trust relationship.

      If you are using the user access, Add the user ARN like given below:

      arn:aws:iam::xxxxxxxxxxxxx:user/john_doe@trellix.com

      If you are using the instance access, Add the instance ARN like given below:

      arn:aws:sts::xxxxxxxxxxxxx:assumed-role/AttachEIP/i-xxxxxxxxxxxxxxxxx

   5. Add the ARN details in the Manager.

6. To view the details for a Controller, double-click the Controller. The Controller Details panel opens. It displays the Controller and Probe version installed along with the date, time and the user who last modified it.

7. To edit a Controller, double-click the Controller and edit the required details in the Controller panel and click Save.

   Note

   You can edit only the Shared Secret, Confirm Shared Secret, Comment, Access Key, and Shared Key fields. To change the Hostname (local IP address), you must recreate the Controller.

   Note

   If you edit the Shared Secret for a Controller launched in AWS environment, you have to stop the Controller instance in the AWS environment and update the User data to reflect the updated Shared Secret key.
