You can configure the HP Network Automation server details in the Manager. To do so, perform the following steps.
Select → → → .

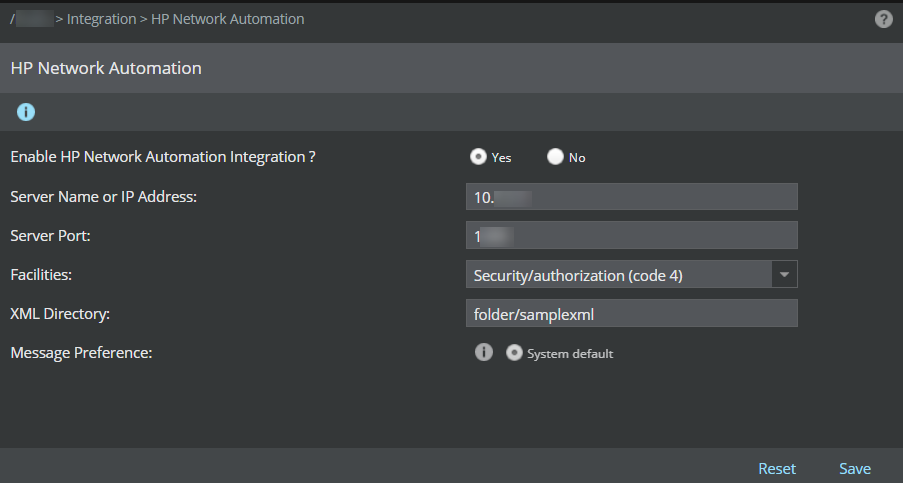

The HP Network Automation page is displayed.
.png "11_1M8-HP-Automation.png")
Fill in the following fields.
Field
Description
Enable HP Network Automation Integration?
Enables or disables HP Network Automation Integration. Yes to enable; No to disable.
Server Name or IP Address
Server name or IP address of the HP Network Automation server.
Server Port
HP Network Automation server port number.
Facilities
Allows you to select the following from the drop down list:
Security/ authorization (code 4)
Security/ authorization (code 10)
Log audit (note 1)
Log alert (note 1)
Clock daemon (note 2)
Local user 0 (local0)
Local user 1 (local1)
Local user 2 (local2)
Local user 3 (local3)
Local user 4 (local4)
Local user 5 (local5)
Local user 6 (local6)
Local user 7 (local7)
XML Directory
Path on the Manager server where the Sensor configuration XML file is located.
Message Preference
Set the preferred type of message in syslog forwarder.
Click Save.
Customizing Message Preference
For Message Preference, System default is selected by default. You have the option to create a customized message and save it with HP network automation configuration. Do the following to create and save a custom message:
After performing the configuration in the HP Network Automation page, click Save.
Select Customized to customize the message preference.
Click Edit to edit a customized message preference.
Click Save to save the settings.
