Configure integration at the admin domain level

You can enable the integration between the Manager and the TLC server at the admin domain level.

Steps:

Navigate to Manager → <Admin Domain Name> → Integration → TLC.
The TLC page is displayed.

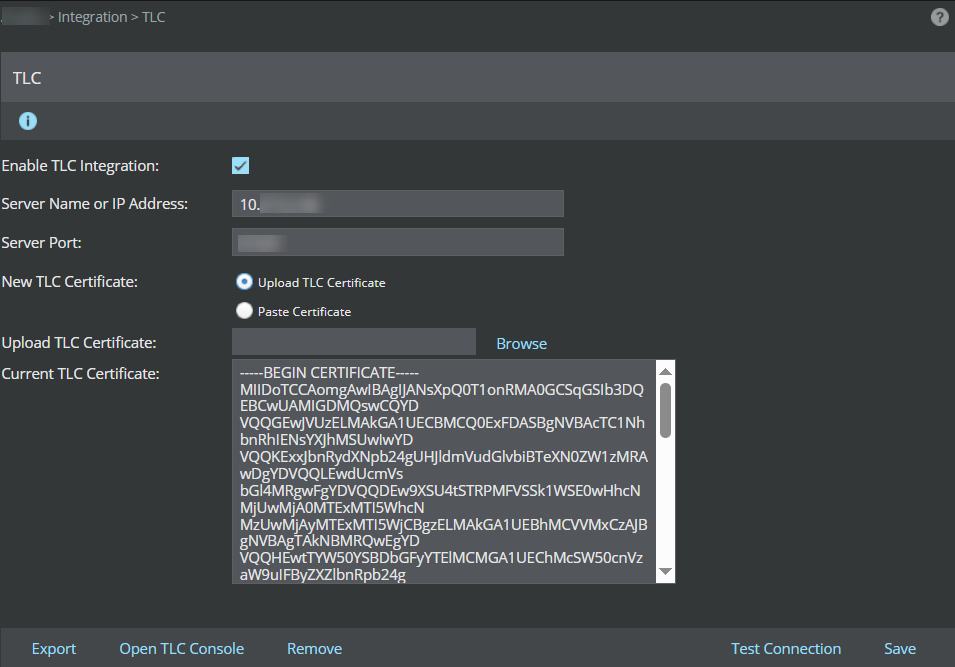

Enable Trellix Logon Collector integration in the Manager
To enable the TLC integration, select the Enable TLC Integration? checkbox.
Enter the required TLC Server Name or IP Address and Server Port details.
You have to exchange the certificates between the TLC server and the Manager to complete the integration process, which includes the following tasks:
- Export the Manager certificate
  Click the button to export the Manager certificate, save the file to your local directory, and import the file to Logon Collector.
- Import the Manager certificate into the Logon Collector
  1. In the Logon Collector console, select Menu → Configuration → Trusted CAs.
  2. Click New Authority to open the New Trusted Authority window.
  3. Select Import From File, then click Browse to add the exported file saved in your local directory.
    You can also use the Copy/Paste Certificate option.
  4. Click Save.
- Copy the Logon Collector certificate from the Logon Collector console
  1. In the Logon Collector console, go to Menu → Configuration → Server Settings.
  2. In the Settings Categories section, click Identity Replication Certificate.
  3. Copy the certificate from the Logon Collector console.
- Import the Logon Collector certificate in the Manager
  In the TLC page of the Manager, select Paste Certificate in the New TLC Certificate field and paste the copied certificate content in the Paste Certificate box.
  Note
  Alternatively, you may paste the copied certificate in a file in your local directory, select Upload TLC Certificate under the New TLC Certificate field, click Browse, and upload the certificate from your local directory.
When the task of importing the TLC certificate is complete, click Save to save the integration configuration details.
- To test the connection between TLC server and the Manager, click .
- Once the integration between Trellix IPS and TLC is successful, you can directly access the Logon Collector console using the button

Note

If the existing Logon Collector certificate is changed, the clients connecting to it, such as Trellix IPS Manager, need to import the new Logon Collector certificate.

Note

If you have upgraded the Logon Collector 3.0.10 server to Logon Collector 3.0.11 server, the existing integration between Trellix Logon Collector and IPS Manager will not work. You need to re-import the Logon Collector certificate in such cases.
