Configure SNMP forwarder

Trellix IPS allows you to configure an SNMP server to which system audit information is sent from the Manager. You can configure more than one SNMP servers where you want to send audit messages. You can configure the SNMP servers for each admin domain separately. The SNMP server configured for a root admin domain can be different from the SNMP server configured for its child domains. When the Children and the Current checkboxes are selected while configuring an SNMP server for the root admin domain, the SNMP server configured for the child domain will forward notifications to both the parent and child domain SNMP servers. When the Children checkbox is not selected in the root admin domain, then the child domain will use only the SNMP server configured for that domain to forward notifications. The Manager displays the SNMP servers that have been configured. The fields in this page are described within the configuration steps that follow.

For SNMP forwarding, the root domain and parent domains have the option to include audit information from all corresponding child domains.

To configure an SNMP server from your Manager, do the following:

1. Select Manager → <Admin Domain Name> → Setup → Notification → User Activity → SNMP.
2. Select Enable SNMP Notification (default is No) and click Save.
3. Click .

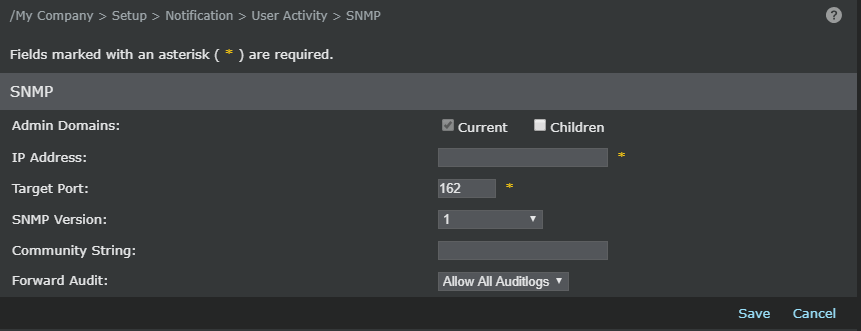

   The SNMP page is displayed.





   Fill in the following fields:

   Field	Description
   Admin Domains	Enables VLAN based reconnaissance
   IP Address	Disables VLAN based reconnaissance
   Target Port	Target server's SNMP listening port. The standard port for SNMP, 162, is pre-filled in the field.
   SNMP Version	Version of SNMP running on the target SNMP server. Version options are 1, 2c, Both 1 and 2c, and 3.
   Community String	Type an SNMP community string to protect your Trellix IPS data. SNMP community strings authenticate access to Management Information Base (MIB) objects and functions as embedded passwords.
   Forward Audit	Choose the audit logs to be forwarded. The options are Allow All Auditlogs, Failed Only, Successful Only, and In Progress Only.
   The following fields appear only when SNMP Version 3 is selected.
   User Name	Type a username that will be used for authentication.
   Authoritative Engine ID (Hex Values)	The Authoritative (security) Engine ID of the Manager used for sending SNMP version 3 REQUEST messages by Primary Manager The hex value of the Authoritative Engine ID should have only even pairs (For example, you can have hex value of 4 pairs like 00-1B-3F-2C). Note MAC address can also be used as Authoritative Engine ID.
   Authoritative Peer Engine ID (Hex Values): Note The Authoritative Peer Engine ID field is available while configuring SNMP version 3 only after successful creation of an MDR pair.	The authoritative (security) engine ID used for SNMP version 3 REQUEST messages by Secondary Manager Note The Authoritative (security) engine ID for any Manager is unique. At any point of time, the Authoritative Engine ID of the Manager is static irrespective of Manager status in case of an MDR pair. That is, when MDR switchover occurs, the authoritative engine ID of the Manager will not change with the status of the Manager. Hence, the alerts generated from the Primary and Secondary Manager will have their respective authoritative engine IDs. Note After successful deletion of an MDR pair, the Authoritative Engine IDs are retained by the respective Managers.
   Authentication Level	This specifies the authentication level and has the following categories: No Authorization, No Privileges — Uses a user name match for authentication Authorization, No Privileges — Provides authentication based on the MD5 or SHA algorithms Authorization and Privileges — Provides authentication based on the MD5 or SHA algorithms. It also provides encryption in addition to authentication based on the DES or AES standards.
   The following fields appear only when Authorization, No Privileges or Authorization and Privileges is selected in Authentication Level.
   Authentication Type	The authentication protocol (MD5 or SHA) used for authenticating SNMP version 3 messages
   Authentication Password	The authentication pass phrase used for authenticating SNMP version 3 messages
   Encryption Type	The privacy protocol (DES or AES) used for encrypting SNMP version 3 messages
   Privacy Password	The privacy pass phrase used for encrypting SNMP version 3 messages

4. Click Save.
   To edit or delete an SNMP server, select the appropriate server from the list of SNMP servers and use the desired option ( or ).
