Configure the cluster

Verify the node status.
Ensure the node status is "ready" before performing any operations, such as cluster creation or deletion.
```
show mvx node status
```
Create new cluster:
```
mvx cluster <new cluster name>
```
You can also create a cluster using the following API. See IVX Cluster management for more information.
```
https://<VX_MGMT_IP>/wsapis/v2.0.0/proxy/clustermgmt/v1/mvx/cluster/<CLUSTER_NAME>
```

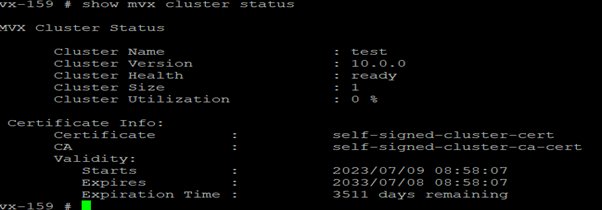

View the status of cluster:
```
show mvx cluster status
```
Cluster status is displayed as busy until it is ready to be used.
Enable broker role on the cluster node and check the status:
```
mvx node broker enable
```
Note
This step is required only for versions prior to 11.0.0. In version 11.0.0 and later, the broker enables automatically upon cluster formation.
When a cluster creation fails or becomes unstable, forcefully break the cluster to create a new one.
```
mvx node detach force
```

For detailed information on the list of commands, see KB97021.

Integrate IVX with other products such as Secure Web Gateway, Trellix TIE and Trellix IPS.
