Configuring the user attributes for certificate authentication using the configuration menu

Log in to the NDR as npadmin using the NDR IP address or FQDN. For example:

$ ssh npadmin@10.1.0.1

or

$ ssh npadmin@exampleFQDN

Enter privileged mode:

npadmin@ia> enable

Enter the npadmin password. The password can be 5 to 24 characters long.

[sudo] password for npadmin: <password>

Enter configuration mode:

npadmin@ia# configure system

Enter configuration CAC menu.

npadmin@ia(config)# authentication

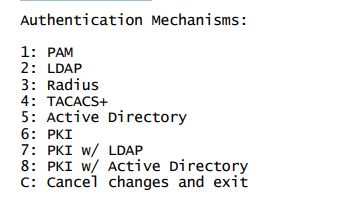

In the CAC/PIV configuration menu, select 1 to access the Authentication Mechanism menu.

Select 2 to select LDAP.

Select Q to save your changes and exit to the configure system menu.

Enter the CAC/PIV configuration menu.

npadmin@ia(config)# authentication

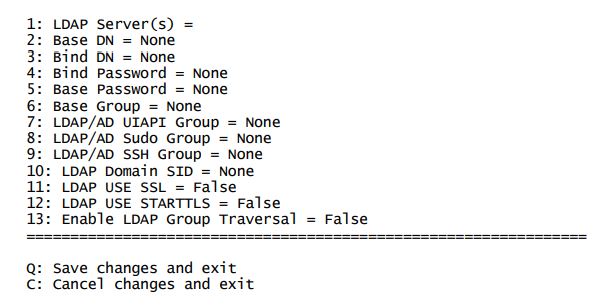

Select 2 to configure LDAP.

Make configuration changes to one of the following user attributes. Press Q to save your changes and exit the LDAP configuration menu.
