Connect the cable to the Management port

Published on Sep 17, 2026

1 minute(s) read

Prev Next

The Sensor communicates with the Manager using the Management port.

Steps:

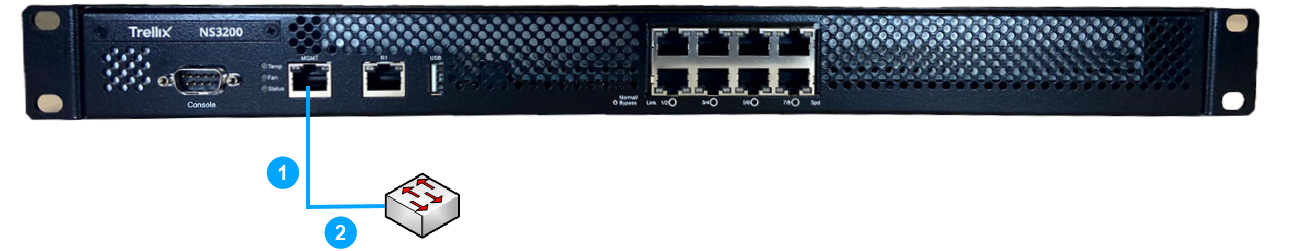

Plug a Category 5e or 6a Ethernet cable into the Management port.
This port is labeled MGMT in the front panel of the NS3x00 Sensor.
Plug the other end of the cable into the network device connected to your Manager server.
Note
To isolate and protect your management traffic, Trellix strongly recommends using a separate, dedicated management subnet to interconnect the Sensors and the Manager.
