Create a Protected Group for Azure Gateway Load Balancer

To protect VMs, each VM needs to be part of a protected VM group. The definition of the group contains the following:

Prerequisites:

VM membership by subnets they belong to.
Cluster that should inspect traffic from these VMs.
Security policy that applies to these VMs.

Note
If a VM is not part of a protected group, the VM will remain in unprotected state.

To create a Protected Group, perform the following steps:

Login to the Trellix IPS Manager instance.
Select Policy → <Admin Domain Name> → Intrusion Prevention → Policy Manager.

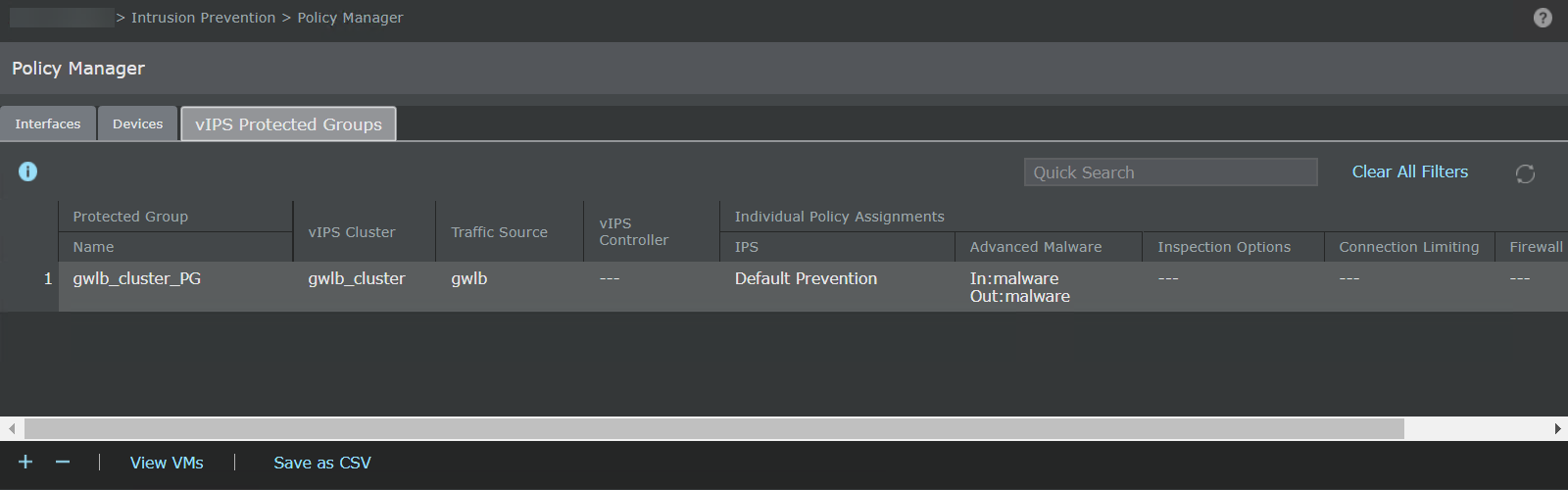

Select vIPS Protected Groups tab.

The description of columns on the vIPS Protected Group tab is given below:

Option descriptions

Option	Description
Protected Group	Name — Name of the Protected Group Note The minimum length for a name is 1 character. The name can contain up to 50 alphanumeric (upper or lower case letters) characters, including hyphens and underscores. The name must begin with a letter. Description — Description of the Protected Group Note The minimum length for description is 1 character. The maximum allowed character length is 255 characters. Inspection Mode — Displays the mode of inspection as IPS
vIPS Cluster	Cluster of instances for which the Protected Group applies
Traffic Source	Displays the traffic source as GWLB
vIPS Controller	This does not apply to GWLB
Individual Policy Assignments	IPS — Type of IPS policy applicable for the Protected Group Advanced Malware — Malware policy applicable for the Protected Group Inspection Options — Inspecting policy applicable for the Protected Group Connection Limiting — Connection limiting policy applicable for the Protected Group Firewall — Firewall policies applicable for the Protected Group
	Refresh the status of all the Protected Groups.
Search	Enter the keyword to search the required Protected Group.
	Create a new Protected Group.
	Deletes a Protected Group
Save as CSV	Creates a .csv list of the list of Protected Groups
View VMs	To view the VMs managed by the Protected Group

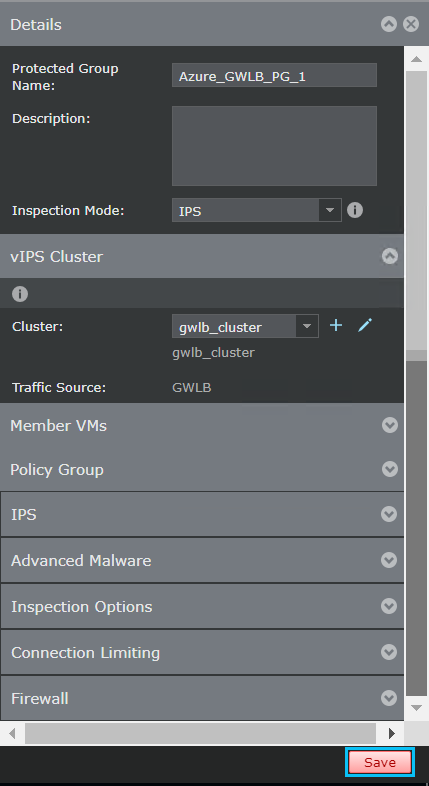

To add a Protected Group, click . Enter the details for the Protected Group in the Details window.

Note
For each account you wish to secure, Trellix recommends you to create a separate protected group for different accounts. In the event of an attack, this will help in identifying the account that was attacked.

Option descriptions

Option	Description
Details	Details of the Protected Group Protected Group Name — Name of the Protected Group Note The minimum length for a name is 1 character. The name can contain up to 50 alphanumeric (upper or lower case letters) characters, including hyphens and underscores. The name must begin with a letter. Description — A brief description of the Protected Group Note The minimum length for description is 1 character. The maximum allowed character length is 255 characters. Inspection Mode — Select the mode of inspection as IPS.
vIPS Cluster	Cluster - Specify the Cluster for the Protected Group. Traffic Source - Displays the traffic source as GWLB
Member VMs	Specifies the VMs for the Protected Group Click Add to add the subnet CIDRs that you want to include in this Protected Group.
vIPS Cluster	Cluster - Specify the Cluster for the Protected Group. Traffic Source - Displays the traffic source as GWLB
Policy Group	Specify the Policy Group.
IPS	Specify the IPS policy for the Protected Group.
Advanced Malware	Specifies the Malware policy for the Protected Group Inbound Policy — Select the Malware policy for inbound traffic. Outbound Policy — Select the Malware policy for outbound traffic.
Inspection Options	Specify the Inspection policy for the Protected Group.
Connection Limiting	Specify the Connection Limiting policy for the Protected Group.
Firewall	Specify the Firewall policy for the Protected Group. Interface Policy — The type of firewall policy Effective Rules — Click on Inbound to view the inbound rules for the selected interface policy. Click on Outbound to view the outbound rules for the selected interface policy.

Note
To create a new policy or to edit an existing policy, see the Trellix Intrusion Prevention System Product Guide.

Click Save.
Upon successful saving, the Protected Group information is displayed on the vIPS Protected Groups tab.
