Create a target group for GWLB

Login to the AWS console, and navigate to Services → Compute → EC2.

In the left panel, under Load Balancing, click Target Groups.

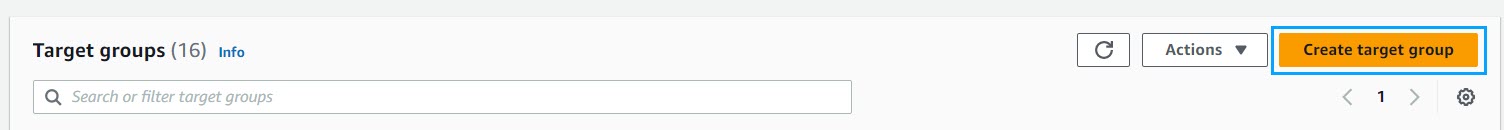

In the Target Groups page, select Create target group.

Target Groups

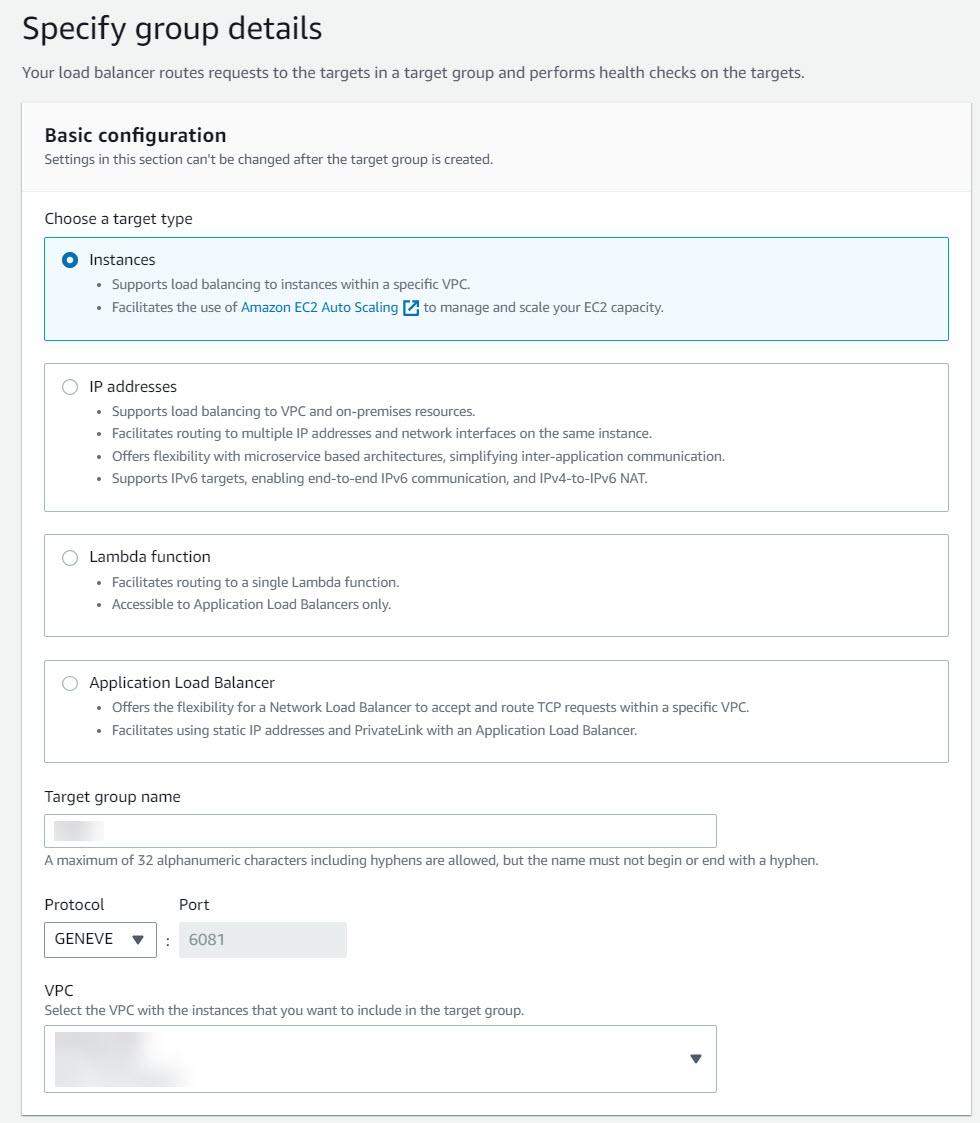

The Specify group details page is displayed.

Go to Basic configuration, select Instances from Choose a target type.

Provide the name of the Target group in Target group name field.

Select GENEVE from the Protocol drop-down.

Select the VPC with the instances that you want to include in the target group from the VPC drop-down.

Specify group details

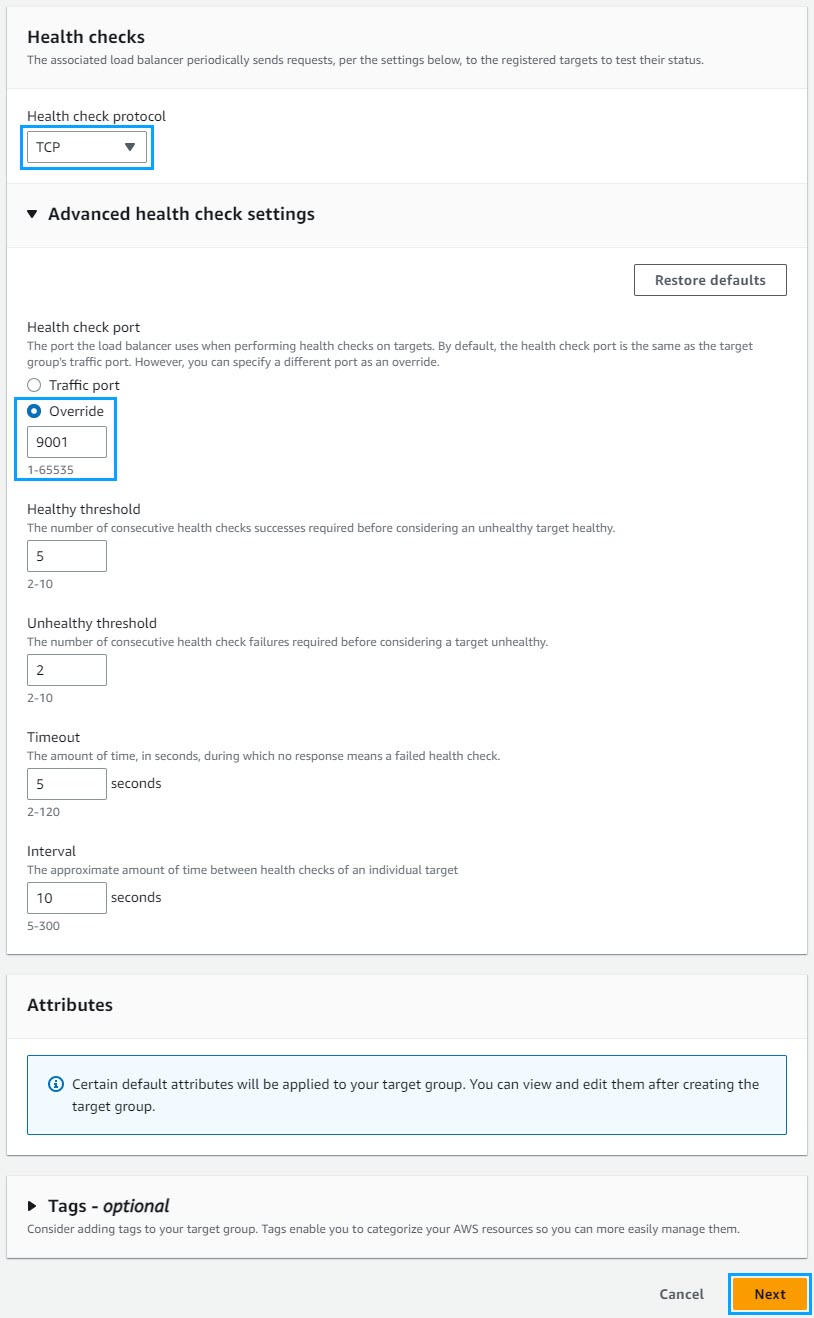

Go to Health checks, and select TCP from the Health check protocol drop-down.

Go to Advanced health check settings, choose Override from Health check port, and provide the value as 9001. Based on your requirements, you can configure Healthy threshold, Unhealthy threshold, and other parameters. Later, click Next.

Note

Trellix recommends using the Healthy threshold value between 2-10 and the Unhealthy threshold value between 2-10 for any Sensor. For auto-scaling Sensors, a Healthy threshold value can be between 300-600.

Health checks

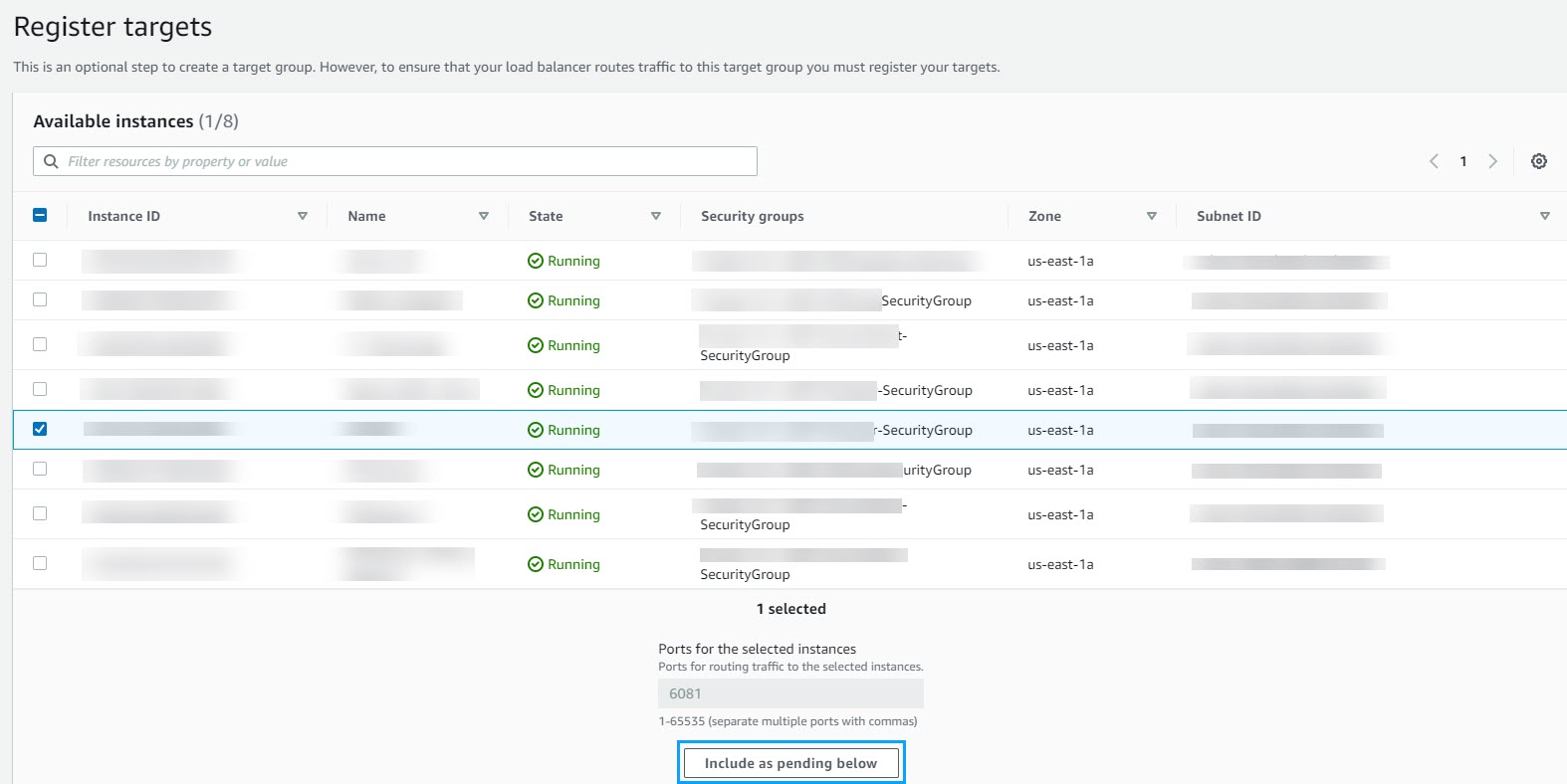

The Register targets page is displayed.

Select the required instances from the Available instances list. Click Include as pending below. The required Sensors will be displayed in the Target window.

Note

You can specify the instances, or leave the group empty if you prefer to add targets later.

Available instances

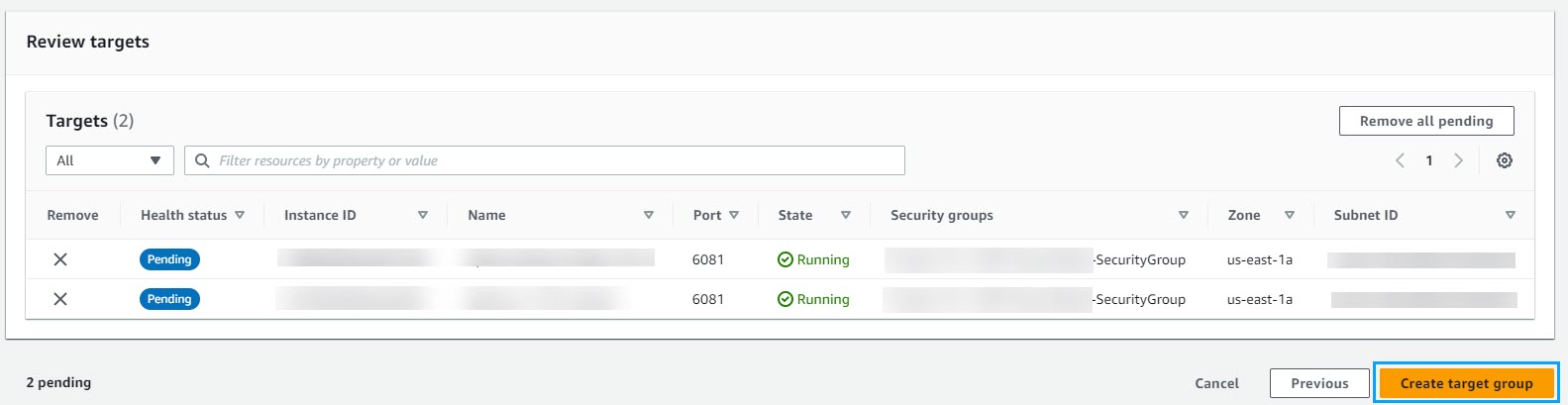

You can review the list of Sensors in Review targets. After reviewing the list, click Create target group to complete the process.

Review targets
