Dashboard tab

The Dashboard tab is the central interface from which all Manager interface components are available. The Dashboard tab is divided into two sections: the top menu bar and the lower monitors section.

By default, you can view the following security and operational monitors:

• Abnormal System Health
• Device Summary
• Manager Summary
• System Faults
• Top Applications
• Top Attacks
• Top Attackers
• Top Callback Activity
• Top High-Risk Endpoints
• Top Targets
• Top Malware Files
• Update Status

Note

The default time range is Last 12 hours and Automatic Refresh is set to 10 minutes.

Data viewed on the Dashboard can be customized according to your time preference using the Custom Time Period option from the refresh drop down. In addition, you can add monitors of your choice. You can also drag and drop these monitors on the Dashboard tab. The monitors display data based on the admin domain selected. Data from the child domains can also be included. In such cases, the data displayed in the monitors will also include data from the child domains. By default, the monitors display data for the root admin domain. Include child domains is selected by default.

Note

By default, all logons to the Manager display data in the dashboard for the root admin domain.

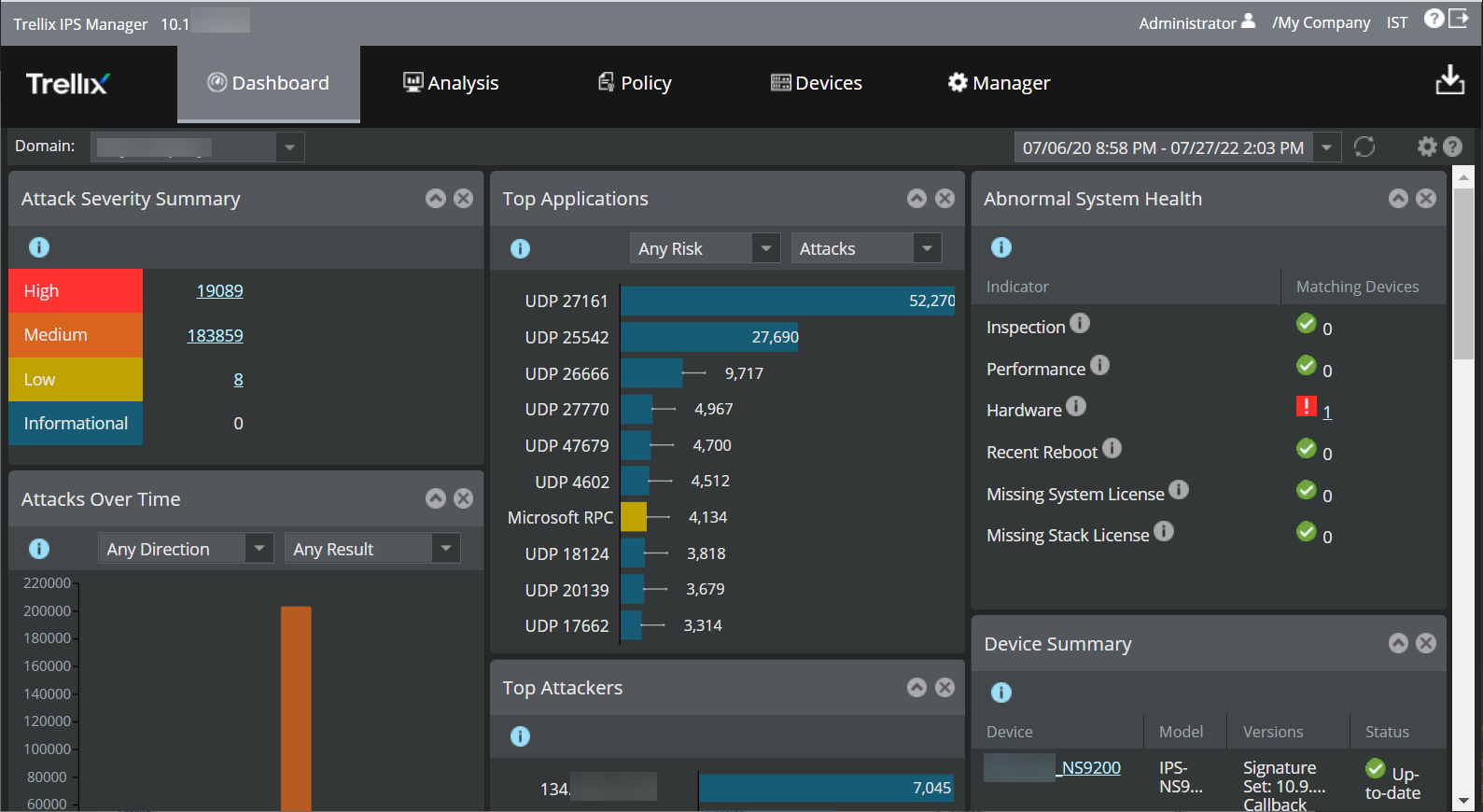

Dashboard tab view.

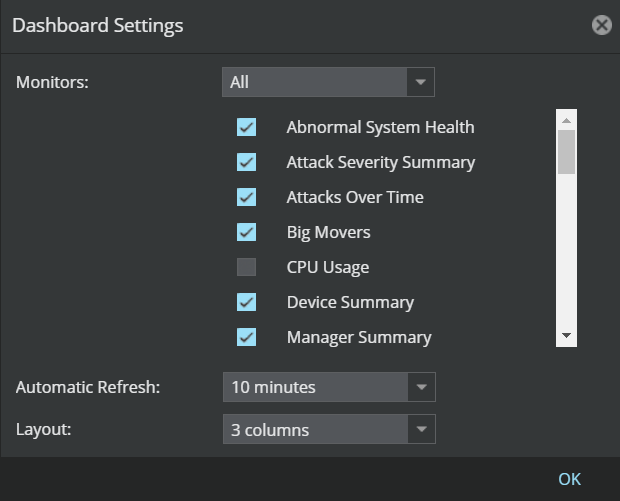

Dashboard Settings

Use the Dashboard Settings window to further customize your Dashboard tab view.

You can perform the following tasks here:

• Monitors— Use this option to select the monitors to view. The default category is All. Use the Operational or Security category to choose the monitors you want to view. You can also customize the data displayed in the monitors based on the admin domain and child domain. Monitors display data based on the admin domain selected from the Domain drop-down list.

  The following monitors are displayed under different categories:

  Category	Monitors	Description
  All		View both Operational and Security monitors.
  Operational
  	Abnormal System Health	View the indicators of the health of Sensors.
  	CPU Usage	View the high CPU usage of the Sensor.
  	Device Summary	View the current versions of the Sensor software and signature set of the logged in domain.
  	Manager Summary	View the Manager details such as software version, signature set version, and others.
  	Memory Usage	View the high memory usage of the Sensor.
  	Release Announcements	View the latest updates and the current version of signature set applied to your Sensor.
  	Running Tasks	View the status of all the Sensors configured in the Manager.
  	System Faults	View the health of your device and the Manager.
  	Throughput Usage	View the high throughput usage of the Sensor.
  	Note Data remains unchanged for the Manager summary, Release Announcements, and Running tasks monitors irrespective of the admin domain selected. The System Faults and Device Summary monitors display the list of all the child domains linked to the admin domain selected.
  Security
  	Attack Severity Summary	View the unacknowledged alerts in the database, sorted by alert severity
  	Attacks Over Time	View the attacks over a period of time in your network.
  	Big Movers	View the attacks whose frequency has increased during a selected time period.
  	Top Applications (IPS)	View the top applications based on attacks, bytes or connections.
  	Top Applications (NTBA)	View the top applications in the NTBA device based on bytes or connections. Note At least 1 NTBA appliance is required to be configured to view this monitor.
  	Top Attack Subcategories	View the attack subcategories in your network.
  	Top Attacker Countries	View the top attacker countries in your network.
  	Top Attackers	View the top attackers in your network.
  	Top Attacks	View the top attacks in your network.
  	Top Callback Activity	View the callback activity.
  	Top Destinations (NTBA)	View the top destinations based on bytes or connections. Note At least 1 NTBA appliance is required to be configured to view this monitor.
  	Top Endpoint Executables (NTBA)	View the top executables based on number of endpoints using them or the number of attacks they have initiated. You can filter the executables based on the device, attacks (default) or endpoints, malware confidence, and classification. Note This monitor is populated only if you have enabled McAfee EIA integration.
  	Top Endpoints Using Risky URLs	View the top endpoints using risky URLs in your network.
  	Top Files (NTBA)	View the top files based on malware confidence level. Note At least 1 NTBA appliance is required to be configured to view this monitor.
  	Top High-Risk Endpoints	View the high-risk endpoints of your network.
  	Top Malware Files	View the top malware downloads in your network. You can filter malware based on their confidence and detections (blocked, unblocked, and all).
  	Top Risky URLs	View the top risky URLs of your network.
  	Top Sources (NTBA)	View the top sources based on bytes or connections. Note At least 1 NTBA appliance is required to be configured to view this monitor.
  	Top Target Countries	View the top target countries in your network.
  	Top Targets	View the top targets in your network.
  	Top URLs (NTBA)	View the top URLs at risk. Note At least 1 NTBA appliance is required to be configured to view this monitor.

  Note

  The Dashboard displays only the top 10 unacknowledged alerts under each Security Monitor. To view the acknowledged alerts, go to the Attack Log page and select Acknowledged from the drop-down list. You can also select Any Alert State from the drop-down list, and the Manager will display both acknowledged and unacknowledged alerts.

• Automatic Refresh— Use this option to set the automatic refresh time. The default time is 10 minutes. The minimum and maximum time for the automatic refresh are 1 minute and 10 minutes, respectively. For a manual refresh, select Disabled to disable the automatic refresh.
• Layout— Use this option to customize the number of columns to be displayed on the Dashboard tab.
