Dashboard tab

The first page that you view after a successful logon to the Manager is the Dashboard page.

The Dashboard page is the central interface from which all Manager interface components are available. The Dashboard page is logically divided into two sections: the top Menu bar and the lower Monitors section.

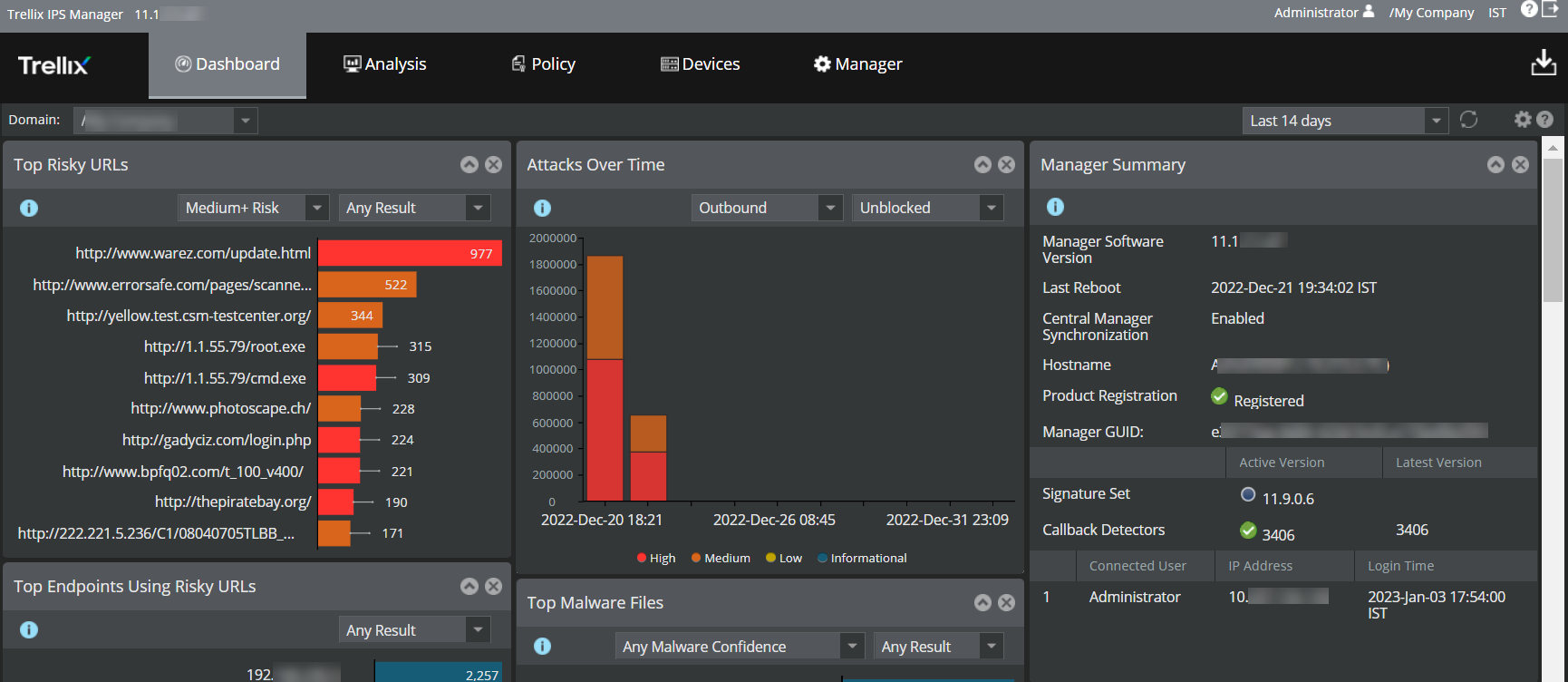

Dashboard page

Dashboard Settings

The Dashboard Settings dialog enables you to further customize your Dashboard page view.

You can perform the following tasks here:

Monitors — Use this option to add the monitors. The default category is All. Use the Operational or Security category to choose the monitors you want to view. You can also customize the data displayed in the monitors based on the admin domain and child domain. Monitors display data based on the admin domain selected from the Domain drop-down list.

The following monitors are displayed under different categories: All, Operational, and Security monitors.

Category	Monitors	Description
All		View both Operational and Security monitors.
Operational
	CPU Usage	View the high CPU usage of the Sensor.
	Device Summary	View the current versions of the Sensor software and signature set of the logged in domain.
	Manager Summary	View the Manager details such as software version, signature set version, and others.
	Memory Usage	View the high memory usage of the Sensor.
	Release Announcements	View the latest updates and the current version of signature set applied to your Sensor.
	Running Tasks	View the status of all the Sensors configured in the Manager.
	System Faults	View the health of your device and the Manager.
	Throughput Usage	View the high throughput usage of the Sensor.
	Note Data remains unchanged for the Manager summary, Release Announcements, and Running tasks monitors irrespective of the admin domain selected. The System Faults and Device Summary monitors display the list of all the child domains linked to the admin domain selected.
Security
	Attack Severity Summary	View the unacknowledged alerts in the database, sorted by alert severity
	Attacks Over Time	View the attacks over a period of time in your network.
	Big Movers	View the attacks whose frequency has increased during a selected time period.
	Top Applications (IPS)	View the top applications based on attacks.
	Top Attack Subcategories	View the attack subcategories in your network.
	Top Attacker Countries	View the top attacker countries in your network.
	Top Attackers	View the top attackers in your network.
	Top Attacks	View the top attacks in your network.
	Top Callback Activity	View the callback activity.
	Top Endpoints Using Risky URLs	View the top endpoints using risky URLs in your network.
	Top High-Risk Endpoints	View the high-risk endpoints of your network.
	Top Malware Files	View the top malware downloads in your network. You can filter malware based on their confidence and detections (blocked, unblocked, and all).
	Top Risky URLs	View the top risky URLs of your network.
	Top Target Countries	View the top target countries in your network.
	Top Targets	View the top targets in your network.

Note
The Dashboard displays only the top 10 unacknowledged alerts under each Security Monitor. To view the acknowledged alerts, go to the Attack Log page and select Acknowledged from the drop-down list. You can also select Any Alert State from the drop-down list, and the Manager will display both acknowledged and unacknowledged alerts.

Automatic Refresh — Use this option to set the automatic refresh time. The default time is 10 minutes. The minimum and maximum time for the automatic refresh are 1 minute and 10 minutes, respectively. For a manual refresh, select Disabled to disable the automatic refresh.
Layout — Use this option to customize the number of columns to be displayed in the Dashboard page. The default layout is 3 columns. The minimum and maximum number of columns that can be displayed are 2 columns and 4 columns, respectively.
The following figure shows the Dashboard with a three-column view.
Three-column view
Time Range — Use this option to select the time range to set the time range for viewing data on the selected monitor.
For example, if you select Automatic Refresh time as 10 minutes and the Time Range as 1 hour, then the information available for the selected monitor will be for the last 1 hour from the last refresh time. That is, if you select the Time Range at 9:30 AM, then you can view the data from 8:30 AM to 9:30 AM. But, as soon as the monitor is refreshed after 10 minutes, the data displayed on the Dashboard will be from 8:40 AM to 9:40 AM.
