Delay in alerts between the Sensor and Manager

Steps:

1. Execute the following commands on the Sensor :

   • status (Execute 5 times in 10 seconds duration.)

   • show sensor-load (Execute 5 times in 10 seconds duration.)

   • getccstats (Enter debug mode and execute this command 5 times in 10 seconds duration.)

     Note

     Also execute the same commands on a similar model Sensor, which does not have the issue.

2. Collect graphs for Sensor throughput utilization and port utilization.

3. Collect the attack csv file for this Sensor from the Attack Log page.

4. Collect the alert archival for the last 24 hour time duration.

5. Retrieve the configuration backup of the Manager.

6. Create/collect the network diagram that clearly indicates where the Sensor and the Manager are located.

1. Check if there are any network connectivity issues or any delay in the network. If there is a delay in the network between the Sensor and the Manager, it can lead to low alert rates.

2. Verify that the entire link between the Sensor management port and the Manager is 1G auto, and they are using the correct CAT6 cables.

3. Check if the other Sensors connected to the same Manager are also facing this issue. If yes, it is a Manager issue.

4. Check the Sensor policy being used. If the Default Testing or Default Exclude Informational is used, the Sensor processes more alerts and alert generation rate increases. Switching to Default Prevention policy can help resolve the delay issue sometimes.

5. Check if there are any saved alerts/packetlogs on the Sensor.

   Command: show savedalertinfo

6. Check if there is any specific category of alerts, which is delayed or all the alerts are delayed. Also check if the system events that are being raised, are also delayed.

7. Check if the alerts are seen in the Attack Log page as the alerts are restored here from the database. This check will confirm if the issue is on the database or cache. Check the database size and if it is very high, purge and tune the database.

8. Check the time on the Sensor and whether it matches with the Manager system time. If there is any issue with the time stamp, the Manager may show the wrong timestamp in the Attack Log page, which can incorrectly appear as alerts being delayed.

9. Check the rate of alert generated/detected by the Sensor using the following command in debug mode:

   getccstats

   The command displays the following statistics:

   • The status of trust between the Manager and Sensor, Sensor installation, alert channel, peer alert channel, etc.

   • The alert suppression/throttling configuration status and suppression intervals

   • The sensor failover action (1 = Enabled, 2 = Disabled) and failover status (1 = Active, 2 = Standby, 3 = Init/Not Applicable), failover peer status (1 = Up, 2 = Down, 3 = Incompatible, 4 = Compatible, 5 = Init/Not Applicable), fail-open status (1 = Enabled, 2 = Disabled)

   • The count of detected alerts (signature-based, scan/recon, DoS) sent to management port and peer Manager (in case of MDR)

   • The count of throttled alerts

   • The count of alerts sent to and received from Correlation Engine and alert correlation counts

   • The count of alerts in ring buffer, queued to be sent to the Manager

   • The ACL alerts’ throttling configuration status (throttling interval and threshold)

   • The count of throttled ACL alerts (IPS)

   • The Sensor reboot count and/or alert wrap count

   For example, consider the following statistics from getccstats command that indicate that many alerts are still pending in ring buffer:

   AlertsInRngBufPriCount = 83621

   AlertsInRngBufSecCount = 83606

   PutAlertInRngBufErrCount = 6499317

   The alert rate could be so high that the Manager may not be able to handle. Subsequently, it introduces a delay that is similar to backoff (with the delay reaching a max of 30 seconds per alert) and this causes the alerts to be queued up in ring buffer. Once this condition is reached, the alerts delay will increase with time. To recover, check the type of attacks and then try to create an exception rule to filter the attack, and see if the Manager recovers.

10. Collect the packet captures at the Sensor and the Manager side to identify whether the issue is at the Sensor/Manager side or network side.

    On the Manager, use Wireshark or equivalent to collect packet captures on the Manager port 8502.

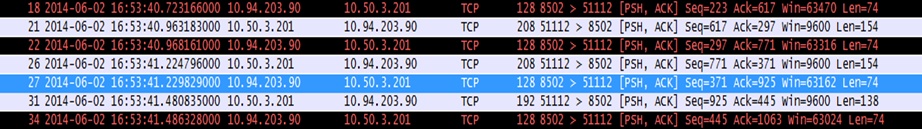

    Sample packet capture on the Sensor:

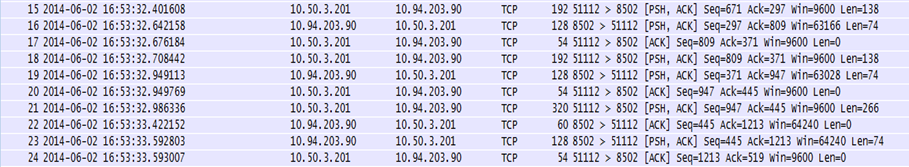

    Sample packet capture on the Manager:



    Using packet captures from the Sensor and the Manager, which are taken simultaneously, you can identify if there is a delay in the Sensor sending the alert to the Manager, or there is a delay in the Manager sending the alert acknowledgment to the Sensor, or both are happening which indicate a potential network issue.

11. Check if Layer 7 Data Collection is enabled on the Sensor. There is a known issue when Layer 7 Data Collection is enabled, where the alerts in the Attack Log page are no longer received in real time.

    IntruDbg#> show l7dcap-usage

    Layer-7 Dcap Buffers Allocated at Init 16000

    Layer-7 Dcap Buffers Available now 16000

    Layer-7 Dcap Buffers Alloc Errors 0

    Layer-7 Dcap Alert Buffers Allocated 40960

    Layer-7 Dcap Alert Buffers Available 40960

    Layer-7 Dcap Alert Buffers Allocate Error 0

    Layer-7 Dcap Regular Alert's Sent 0

    Layer-7 Dcap Special Alert's sent 0

    Layer-7 Dcap Context End Alert's Sent 0

    Layer-7 Dcap CB InActive when DCAP Called 0

    Layer-7 Dcap Ring Buffer Errors 0

    Alert Ring Buffer Full Cnt 0

    Num Alerts Dropped at Sensors 0

    Layer-7 Dcap Fifo Check Seen 0

12. On the Manager database, use SQL queries output to check the frequency of alerts going to the Manager. This can be done by logging into MariaDB on the Manager server and executing the following command:

    1. Get Sensor ID from database:

       select sensor_id, name from iv_sensor;

    2. Input the time range for which the alert generation rate needs to be checked:

       SELECT "2014-05-29 18:39:47", "2014-05-30 18:39:47" INTO @stdate, @enddate;

    3. Total Attacks for Sensor ID and the time range:

       SELECT sensorid,COUNT(*) atcount FROM iv_alert WHERE creationtime BETWEEN @stdate AND @enddate GROUP BY sensorid ORDER BY atcount;

    4. Total packetlog for Sensor ID and time range:

       SELECT sensorid,COUNT(*) pktcount FROM iv_packetlog WHERE (creationtime BETWEEN @stdate AND @enddate) AND sensorid=<id of problematic sensor> GROUP BY sensorid ORDER BY pktcount;

    If the problem still persists, contact Trellix Support for further assistance.
