Deploying Virtual Sensor monitoring ports in inline fail-open mode

Prev Next

Prerequisites:

Before you deploy monitoring ports in inline fail-open mode, make sure the Sensor is functioning as expected with the same ports in inline fail-closed mode.

If a Virtual Sensor receives traffic from a physical network device, you can deploy an inline pair in inline fail-open mode. Consider a scenario, wherein the Virtual Sensor inspects traffic between virtual machines as shown below (scenario 4).

Scenario 4, wherein the Virtual Sensor inspects traffic between virtual machines
Scenario 4, wherein the Virtual Sensor inspects traffic between virtual machines


The monitoring port pair 1-2 is inline between physical switches 1 and 2. By default, inline monitoring ports of a Virtual Sensor are in the fail-closed mode. The network between the client and the server is broken under any of the following conditions:

  • Link failure in either port 1 or 2

  • Power or application failure in the Virtual Sensor

  • Either vSwitch0 or vSwitch1 is down

  • Link failure in either vmnic0 or vmnic1

  • The ESX server is down

To mitigate the risk of network breakdown due to these conditions, you can deploy the monitoring port 1-2 in fail-open mode. Fail-open operation for the monitoring ports of a Virtual Sensor, require the use of an external copper bypass switch.

  • Only Trellix-certified 10/100/1000 external Copper active fail-open bypass kits are supported.

  • Installing the active fail-open bypass kit involves a brief network downtime.

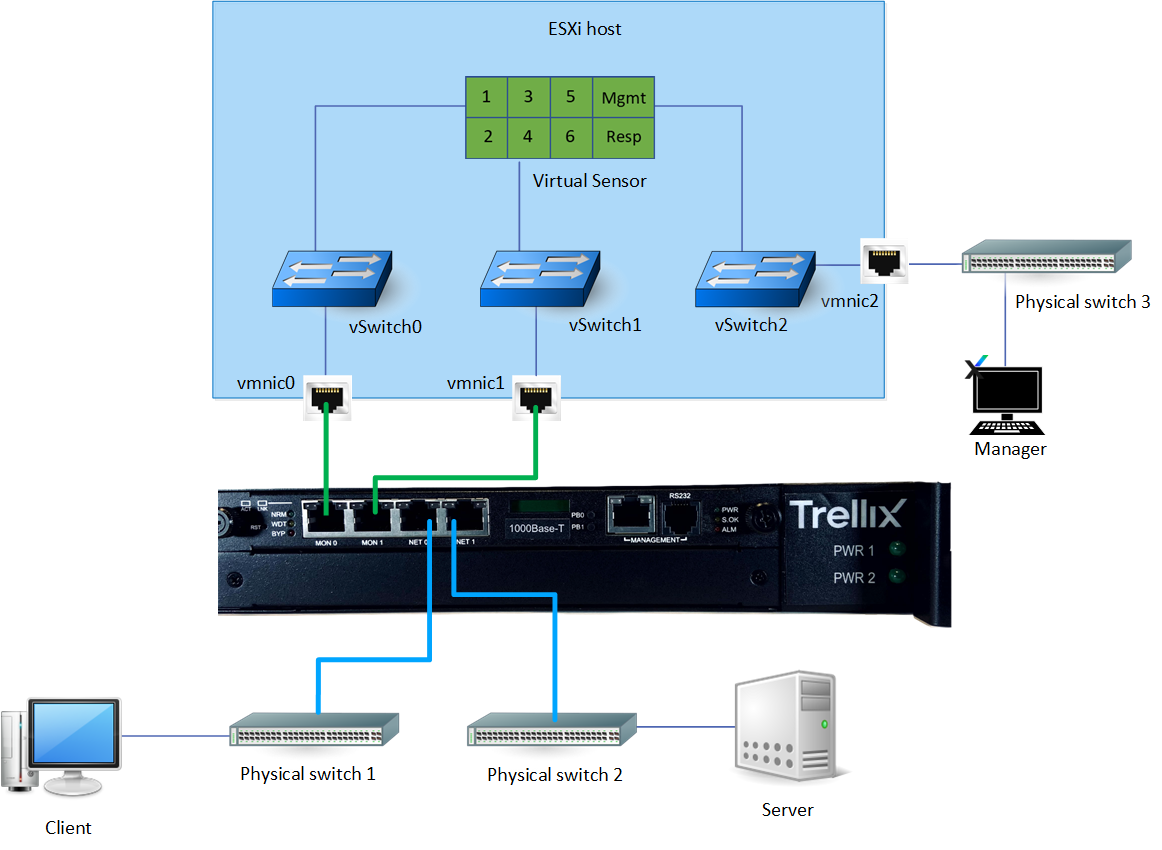

Scenario, wherein the active fail-open bypass kit is installed
Scenario, wherein the active fail-open bypass kit is installed


Steps:

  1. Install the 10/100/1000 external Copper active fail-open bypass kit and power it on (with dual power sources).

    Refer to 1/10 Gigabit Modular Active Fail-Open Bypass Kit Guide for more information.

  2. Disconnect the trunk port of Physical switch 1 from vmnic0, and connect the trunk port to the port marked NET0 in the bypass kit.

  3. Similarly, disconnect the trunk port of Physical switch 2 from vmnic1, and connect the trunk port to the port marked NET1 in the bypass kit.

  4. Connect the port marked MON0 to vmnic0 and the port marked MON1 to vmnic1.

  5. In the Manager, set the port in inline fail-open active mode.

    1. Click the Devices tab.

    2. Select the domain from the Domain drop-down list.

    3. In the left pane, click the Devices tab.

    4. Select the device from the Device drop-down list.

    5. Select Setup → Physical Ports.

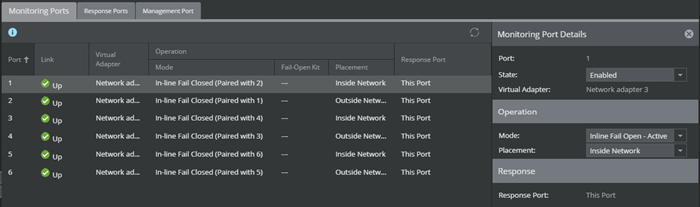

    6. Double-click on the required port and select Inline Fail Open – Active in the Mode field.

    7. Confirm and then click Save.

      • In the Sensor CLI, run the show intfport <port number> command and verify that Fail-Open Switch shows PRESENT and Fail-Open Port shows INLINE.

      • When the Sensor is operating, the switch is on and routes all traffic directly through the Virtual Sensor.

        Routing when Sensor is operating
        Routing when Sensor is operating


      • When the Sensor fails, the switch automatically shifts the Virtual Sensor to a bypass state; in-line traffic continues to flow through the network link, but is no longer routed through the Sensor.

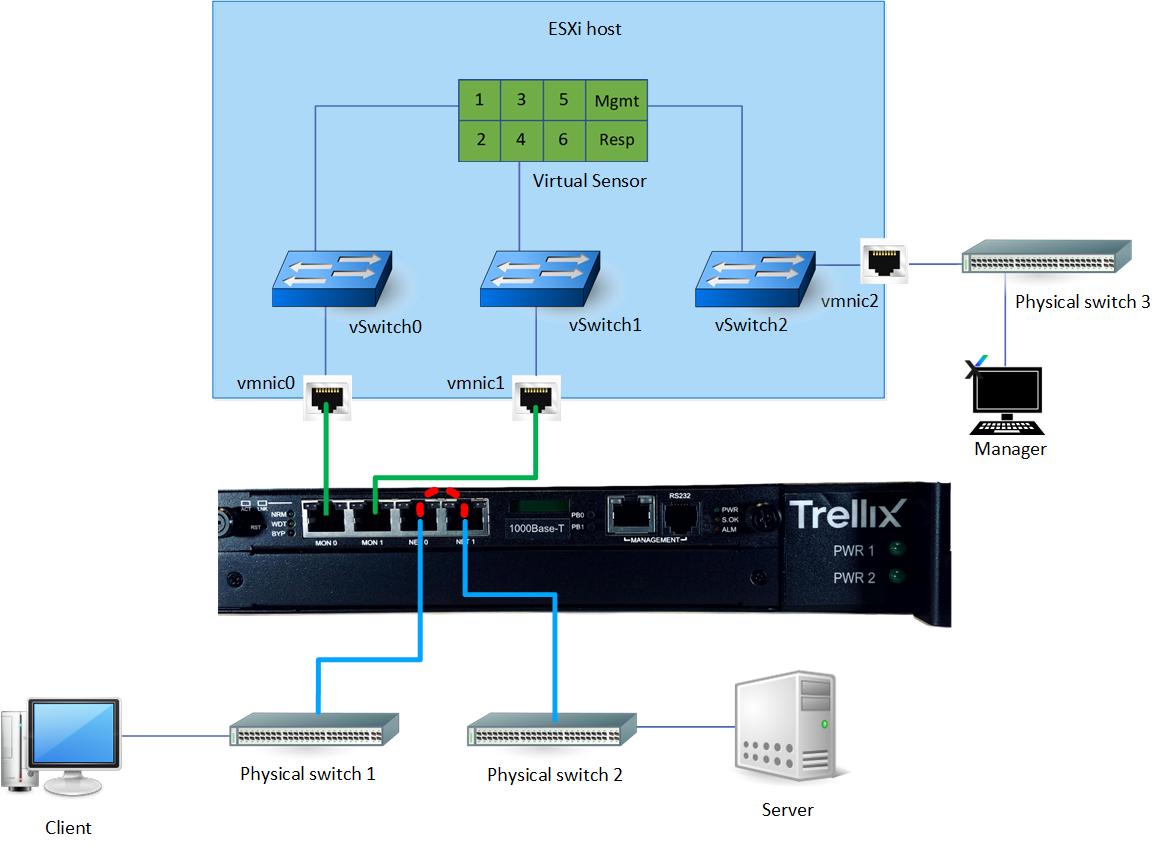

        Routing when Sensor fails
        Routing when Sensor fails


      • When a monitoring port goes down, its status in the Manager is shown as unknown. A critical-fault message is also generated. This message is cleared when the monitoring port pair is back inline.

      • If the monitoring port is down or if the Sensor goes into layer 2 bypass mode, the fail-open bypass kit turns on and the traffic bypasses the Sensor. If you run the show intfport <port number> command, the Fail-Open Port field displays BYPASS.

      • If the Sensor layer 2 bypass mode, the Fail-Open Port field, displays LAYER2_BYPASS.

      • Once the Sensor resumes normal operation, the bypass switch returns to the off state, enabling in-line monitoring again.

      Note

      For the details of how the external Copper active fail-open bypass kit works, see the 1/10 Gigabit Modular Active Fail-Open Bypass Kit Guide.

  6. You can also configure the bypass switch to operate in tap mode.

    • See 1/10 Gigabit Modular Active Fail-Open Bypass Kit Guide for information.

    • There is no specific configuration in the Physical Ports page in the Manager for tap mode. The configuration is only in the bypass switch.

    • When the bypass switch is in tap mode, and you run show intfport <port number> command, the Fail-Open Port field displays TAP.
