Deployment of a Sensor requires knowledge of your network to help determine the level of configuration and the number of installed Sensors. The Sensor is purpose-built for the monitoring of traffic across one or more network segments.

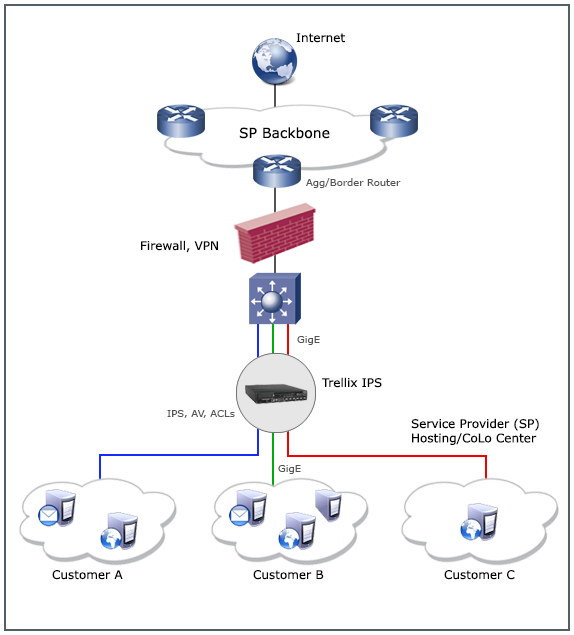

Following is an example of a network topology using Gigabit Ethernet throughput. In the illustration, Trellix Intrusion Prevention System provides IPS protection to outsourced servers. High port density and virtualization provide a highly scalable solution, while Trellix IPS protects against web and eCommerce mail server exploits.
