Deployment of an IPS Sensor requires knowledge of your network to help determine the level of configuration and the number of installed Sensors. You also need to determine the number of Trellix ePolicy Orchestrator - On-premises servers required to protect your network. The Sensor is purpose-built for the monitoring of traffic across one or more network segments.

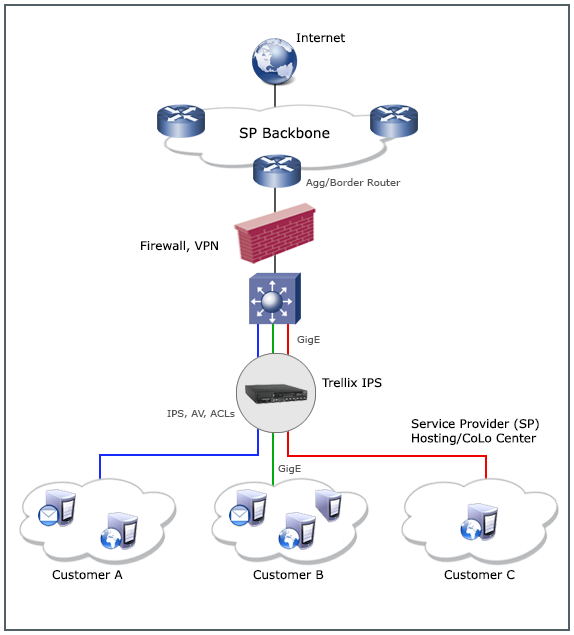

Following is an example of a network topology using Gigabit Ethernet throughput. In the illustration, Trellix Intrusion Prevention System provides IPS protection to outsourced servers. High port-density and virtualization provides a highly scalable solution, while Trellix IPS protects against web and eCommerce mail server exploits.
A sample NS-Series Sensor deployment
