You can download the available Sensor software and NTBA Appliance updates on demand from the Update Server. If more than one version is available, select the most recent version.
Automation enables the Manager to verify the Update Server for software updates on a periodic basis.

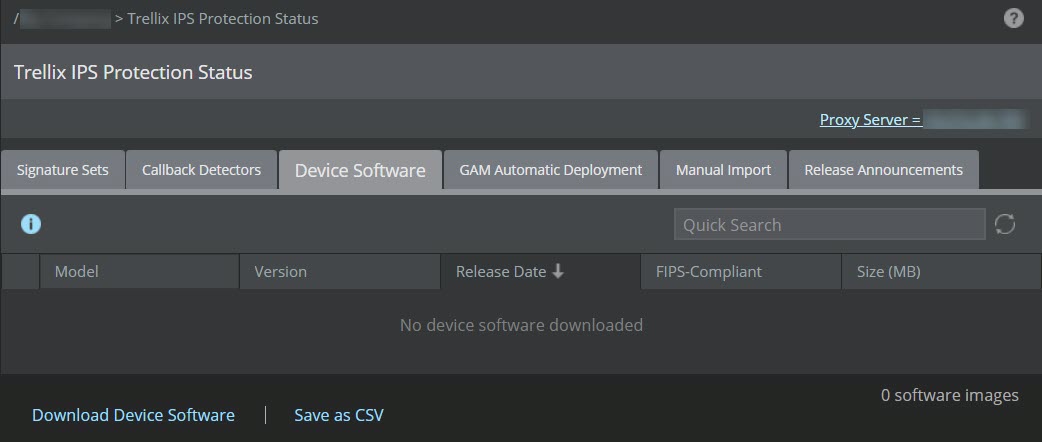

Select Manager → <Admin Domain Name> → Trellix IPS Protection Status. Then, select Device Software tab.
The Device Software tab is displayed.
.jpg)
It displays the details of downloaded device software such as Model, Version, Release Date, FIPS-Compliant, and Size (MB).
To download the details of downloaded device software, select Save as CSV. You can also view the total available software images.
To download the required device software, select Download Device Software.

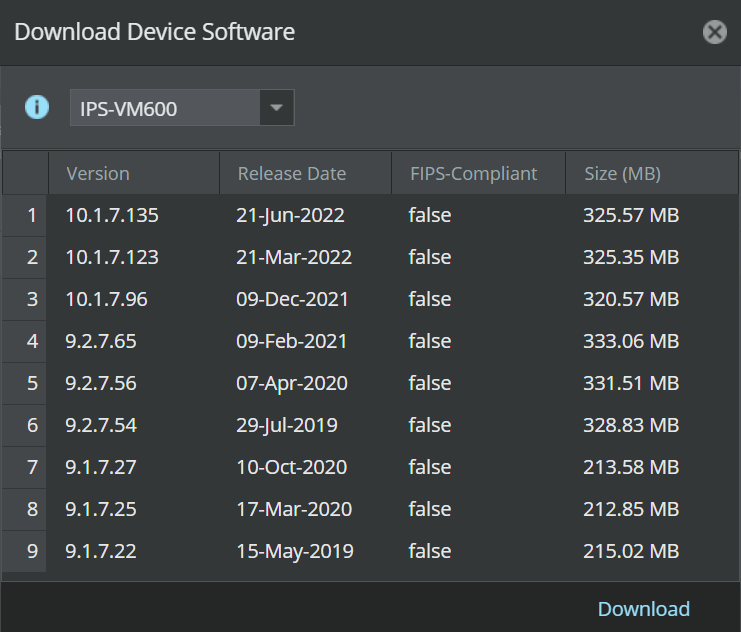

The Download Device Software dialog-box appears. It displays the details, such as Version, Release Date, FIPS-Compliant, and Size (MB).
.png)
Note
If you download the Device Software directly from the Update Server, the Release Date is available in DD-MMM-YYYY format. When you manually import the Device Software, the date is displayed in MMM-YYYY format.
Select the Sensor model from drop-down. Then, select the required version of the device software.
Note
Only the latest three Sensor software versions for 10.1 and 11.1 releases will be available for download, provided the releases are supported by the selected Sensor model.
Click Download to download the software updates.
Note

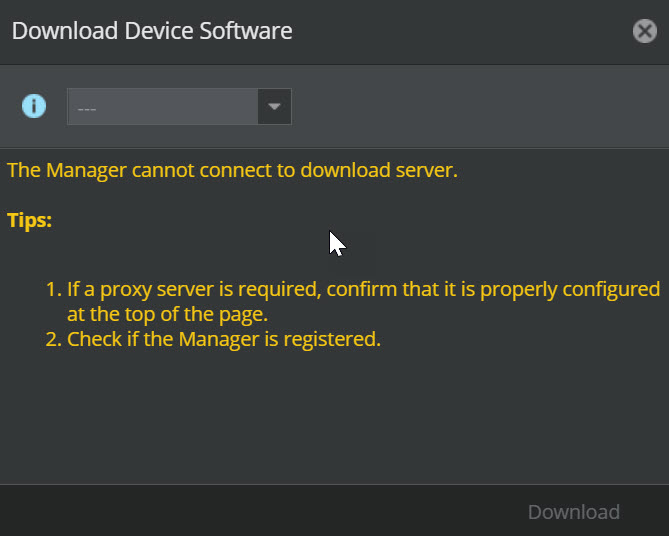

In an air-gap network, unregistered, or proxy server disabled Manager, Download Device Software does not display any details of the available software version.
.jpg)
Use the Deploy Device Softwareoption to deploy these software updates. For more information, see the Trellix Intrusion Prevention System Installation Guide.
Warning
The Sensor functionalities remain unaffected when a new software image is pushed from the Manager to Sensor during an upgrade. However, to upgrade to the new software, a Sensor reboot is required. During the reboot, the Sensor functionalities will be unavailable.
