DoS filter management

You can view and modify the drop/block packets responses that have been initiated for the DoS learning mode profiles applied for all network identifiers (NIs) within a Sensor. A DoS filter, or blocking rule, is similar to a firewall deny rule in that subsequent traffic that matches the filter parameters is blocked from transmitting further through your network. A network identifier is a Trellix IPS term relating to interface, subinterface, and DoS ID resources. DoS filters are applied exclusively to DoS learning mode attacks.

A DoS filter can be initiated for any DoS learning mode attack, namely the measures within each attack. Each enabled learning mode attack is a combination of traffic flow rate measures, such as the rate of TCP control packets or UDP packets. When a learning mode profile has completed learning the normal traffic behavior, the long-term measure volumes in this profile are matched against short-term volume calculations for each measure. If the short-term volume is outside of the long-term volume, a statistical attack type alert is raised. Once a statistical alert has been raised, the Sensor can initiate an automatic or manual response to block all subsequent packets of the violated measure.

• For automatic dropping and blocking, you configure a DoS policy with the drop packets response enabled for one or more measures and apply the policy to a Sensor interface in inline mode. Automatic filters last as long as the short-term volume continues to violate the long-term volume.
• For manual blocking, you must initiate the response from IPS Policies for an attack. For more information, see Blocking DoS attacks.

1. Click the Devices tab.
2. Select the domain from the Domain drop-down list.
3. In the left pane, click the Devices tab.
4. Select the device from the Device drop-down list.

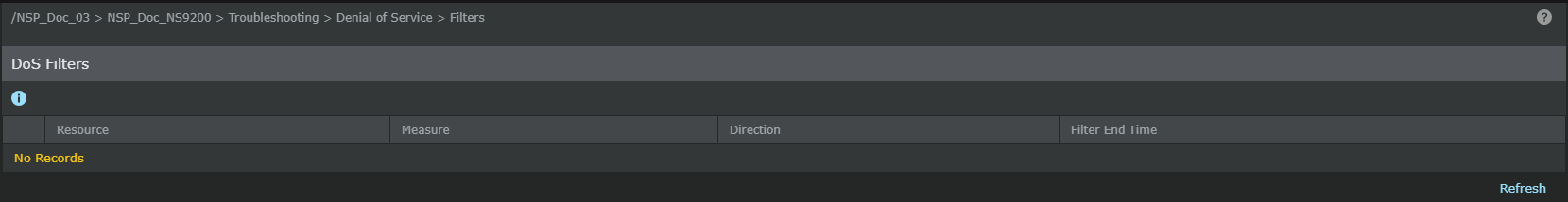

5. Select Troubleshooting → Denial of Service → Filters.
   Do one of the following:
   • To delete a filter, select a filter and click Delete.
   • To refresh a filter, select a filter and click Refresh.
   • To extend a filter, do the following:
   1. Select a filter and click Extend. The Add DoS Filter Time dialog opens.
   2. Type the number of seconds to add to the Filter Time.
   3. Click Save; click Cancel to abort.
