Enable rule match notification

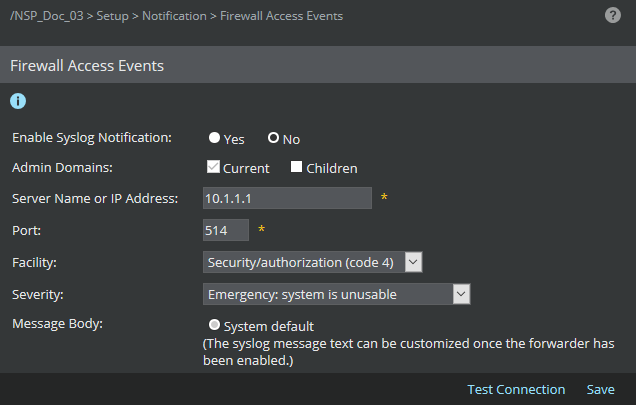

Enable Syslog Notification

If you select Yes, the details of the traffic that matched an access rule is forwarded to a syslog server. You can also configure the details now and enable it at a later time.

Admin Domains

Server Name or IP Address

Enter the syslog server name or its IP (IPv4 or IPv6) address. If you specify the syslog server name:

Note

The length of server name has been increased to support up to 255 characters from 40 characters.

Port

Enter the communication port number on the target server which is authorized to receive syslog messages. The standard port for syslog, which is 514, is pre-filled in the field. If you are using a non-standard port, then replace 514 with that number.

Facility

Lists the syslog prioritization values.

By default, the syslog messages forwarded to a syslog server are of Security authorization prioritization value.

Severity

Lists the syslog priority values.

By default, the syslog messages forwarded to a syslog server are of Debug severity.

Message Body

Optionally, customize the default syslog message. There are two types:

Important

Till 11.1 Update 4 release, all Syslog notifications generated from the Manager UI were prefixed with the timestamp format MMM DD HH:MM:SS. From the 11.1 Update 5 release onwards, along with this timestamp, additional timestamp with format [MMM DD, YYYY HH:MM:SS] is appended to each Syslog notification from the Manager for auditing purposes. This timestamp update is independent of the syslog variables (default or customized) used to configure syslog notifications.

As a user, you need to update the Syslog parsing logic in the third-party Syslog application(s) in use to avoid any timestamp conflicts in the Syslog notifications.

Test Connection

Checks if the Manager is able to send logs to the syslog server. Check your syslog server if it has received the test message from the Manager. If not, check the syslog server name or IP address that you had provided. Ping the syslog server from the Manager server to see if the Manager is able to reach the syslog server. If you plan to configure NS-series Sensors to directly send the messages to the syslog server, ping the syslog server from the Sensor's CLI. This option is available in the Firewall Logging page.

Note

You can use the test connection feature, even if you have set Enable Syslog Forwarding? to no.

Save

Saves the syslog configuration changes in the Manager database. Once you click Save, you will be able to customize the message format sent to the syslog server.

Note

If you have modified the syslog configuration, then do a configuration update of the Sensors for the changed settings to take effect.
