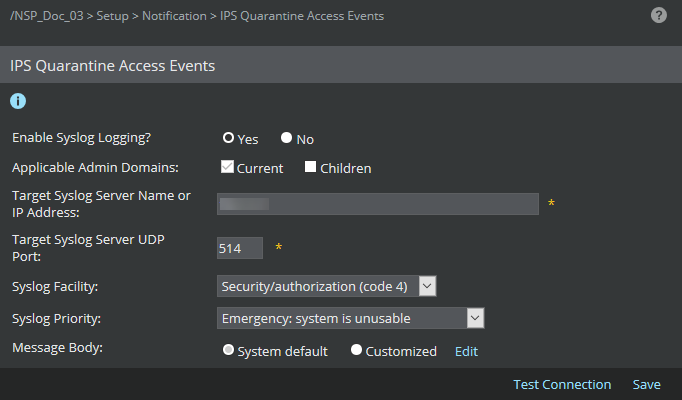

Enable syslog forwarding for alert notifications at the domain level

Enable Logging

Select the checkbox to configure the settings.

Syslog Server IP Address

The IP address of the syslog server which becomes the destination of the alert notifications sent by all devices.

Syslog Server Port (UDP)

Port on the target syslog server that is authorized to receive syslog messages.

The default protocol for syslog forwarding from Sensors is UDP. Therefore, this port must not be altered.

Syslog Facility

Standard syslog prioritization value. The choices are as follows:

Attack Severity to Syslog Priority Mapping

You can map each severity (Informational, Low, Medium, or High) to one of these standard syslog severities:

Send Test Message

Clicking this option sends a test message from the Manager to the syslog server.

It is used to check whether the syslog server is reachable.

Attack Logging

Log All Attacks sends notifications about every attack that passes through the Sensor.

Log Some Attacks sends notifications about specific attacks based either on the severity or the settings in the attack definition.

Message

The default message is a quick summary of an alert with two fields for easy recognition: Attack Name and Attack Severity. A default message reads:

Attack $IV_ATTACK_NAME$ ($IV_ATTACK_SEVERITY$).

$IV_ADMIN_DOMAIN$

The domain to which the Sensor that detected the attack belongs.

Domain

$IV_ALERT_ID$

The globally unique ID that the Manager assigns to an alert.

Alert ID

$IV_ALERT_TYPE$

The Sensor decides the type of alert. This is mainly used by the Manager for its internal processing. This is not related to the Attack Category or Attack Sub-category. Some example alert types are signature, statistical anomaly, threshold anomaly, port scan, and host sweep.

Not available

$IV_APPLICATION_PROTOCOL$

The application-layer protocol associated with the attack traffic. This is not related to the Application Identification feature, and this information is displayed even if you have not enabled Application Identification. There could be instances when a Sensor might not be able to detect the protocol.

Application

$IV_ATTACK_CONFIDENCE$

This is a value between 1 and 7. For example, a confidence level of 7 indicates that there is low possibility of the attack being a false-positive.

The attack confidence values are inversely related to the Benign Trigger Probability (BTP) values of attack signatures.

Note

When the BTP value is 0, there is no corresponding confidence value for the attack.

Not available

$IV_ATTACK_COUNT$

The number of times the attack occurred. This information is more relevant for suppressed alerts. Consider you have enabled alert suppression such that the alert is raised only when the attack is seen 5 times within 30 seconds. Subsequently, the Sensor detected this attack 10 times within 30 seconds. Then the attack count for this alert is 10.

Attack Count

$IV_ATTACK_ID$

Trellix Advanced Research Center assigns a universally unique hexadecimal value to each attack. This field displays the integer value of the hexadecimal ID assigned by Trellix ARC.

The equivalent hexadecimal value is displayed in the Attack Information & Description page as Intruvert ID.

$IV_ATTACK_NAME$

The name assigned by Trellix ARC to an attack.

Name

$IV_ATTACK_SEVERITY$

Indicates the severity value of an attack specified in the corresponding attack definition.

Attack Severity (high, medium, low, or informational)

$IV_ATTACK_SIGNATURE$

The ID of the signature that matched the attack traffic.

Not available

$IV_ATTACK_TIME$

The time when the Sensor created the alert.

Time

$IV_CALLBACK_ACTIVITY

The name of the Callback Activity family.

Callback Activity

$IV_CATEGORY$

The category to which the attack belongs. This is decided by Trellix ARC. Some examples are exploit, policy violation, and reconnaissance. You can view the attack categories in the IPS Policy Editor when you group by Attack Category.

Attack Category

$IV_CC_DOMAIN

The name of the Callback Activity domain.

C&C Domain

$IV_DESTINATION_IP$

The destination IP address to which the attack is destined.

Target IP Address

$IV_DESTINATION_PORT$

The port number on the destination host to which the attack traffic is sent.

Target Port

$IV_DEST_APN$

This is the destination Access Point Name (APN). This information is part of a mobile subscriber's identity data and is relevant only if you have deployed Sensors to monitor mobile networks. To see this data, you must enable capturing and tagging of mobile subscriber data in the alerts by using the set mnsconfig Sensor CLI command.

Not available

$IV_DEST_IMSI$

This is the destination International Mobile Subscriber Identity (IMSI). The details provided for APN apply to this as well.

Not available

$IV_DEST_OS$

The operating system installed on the destination host.

Target OS (in Alert Details panel)

$IV_DEST_PHONE_NUMBER$

This is the destination mobile phone number. The details provided for APN above apply to this as well.

Not available

$IV_DETECTION_MECHANISM$

The method the Sensor used to detect the attack. For example, signature, multi-flow-correlation, threshold, and so on. Each method relates to a specific attack category.

Detection (in Alert Details panel)

$IV_DIRECTION$

Indicates whether the attack traffic originated from your network or the outside network. For example, inbound direction means that the attack traffic originated from the outside network, targeting the hosts on your network.

Direction

$IV_INTERFACE$

The interface or sub-interface on which the Sensor detected the attack traffic.

Interface

$IV_LAYER_7_DATA

Provides the Layer 7 data.

Layer 7 Data

$IV_MALWARE_CONFIDENCE$

Confidence level of the malware as detected by the engine

Malware Confidence

$IV_MALWARE_DETECTION_ENGINE$

Engine which detected the malware(GAM,GTI,PDF‑JS,etc).

Engine

$IV_MALWARE_FILE_LENGTH$

The length of the malware file.

Not available

$IV_MALWARE_FILE_MD5_HASH$

The MD5 hash of the malware file(fingerprint).

File Hash

$IV_MALWARE_FILE_NAME$

The name of the malware file. For SMTP traffic, it displays the file name of the attachment and for HTTP traffic, it displays the URL of the file.

File Name

$IV_MALWARE_FILE_SHA1_HASH$

The SHA1 hash of the malware file (fingerprint).

File Hash

$IV_MALWARE_FILE_SHA256_HASH$

The SHA256 hash of the malware file (fingerprint).

File Hash

$IV_MALWARE_FILE_TYPE$

The file type of the malware file

Not available

$IV_MALWARE_VIRUS_NAME$

The virus name as detected by GAM.

Not available

$IV_NETWORK_PROTOCOL$

The network protocol, such as TCP, of the attack traffic.

Protocol (in the Alert Details panel)

$IV_QUARANTINE_END_TIME$

The time when the attacking host will be out of quarantine. This is relevant only if you had enabled Quarantine feature.

Not available

$IV_RESULT_STATUS$

Indicates whether the attack traffic reached the victim host.

Result

$IV_SENSOR_ALERT_UUID$

The universally unique ID assigned by the Sensor for the alert. For a specific alert raised by a specific Sensor, the Central Manager also displays the same ID.

Alert ID

$IV_SENSOR_CLUSTER_MEMBER$

The member Sensor of a HA pair that generated the alert.

Not available

$IV_SENSOR_NAME$

The Sensor that generated the alert.

Device

$IV_SOURCE_IP$

The IP address of the attacking host.

Attacker IP Address

$IV_SOURCE_OS$

OS of the attacking host.

Attacker OS (in Alert Details panel)

$IV_SOURCE_PORT$

The port number on the attacking host from which the attack traffic is sent.

Attacker Port

$IV_SRC_APN$

This is the source Access Point Name (APN). This information is part of a mobile subscriber's identity data and is relevant only if you have deployed Sensors to monitor mobile networks. To see this data, you must enable capturing and tagging of mobile subscriber data in the alerts by using the set mnsconfig Sensor CLI command.

Not available

$IV_SRC_IMSI$

This is the source International Mobile Subscriber Identity (IMSI). The details provided for APN apply to this as well.

Not available

$IV_SRC_PHONE_NUMBER$

This is the source mobile phone number. The details provided for APN apply to this as well.

Not available

$IV_SUB_CATEGORY$

The subcategory to which the attack belongs. This is decided by Trellix ARC, and is a classification within Attack Category. Some examples are brute-force, buffer-overflow, host-sweep, and restricted-application. You can view the attack subcategories in the IPS policy editor when you group by Attack Subcategory.

Attack Subcategory (in Alert Details panel)

$IV_VLAN_ID$

The VLAN ID seen on the attack traffic.

VLAN
