Enable tap/inline mode for the Active Fail-Open module

Prerequisites:

Configure an IPv4 address for your Active Fail-Open chassis.
Make sure you can access the Active Fail-Open web interface using a web browser.

You can enable tap mode for your Active Fail-Open module if you use a tap to route network traffic to the Sensor monitoring ports.

Login to the web interface of the Active Fail-Open module.
Use default credentials to access the web interface.

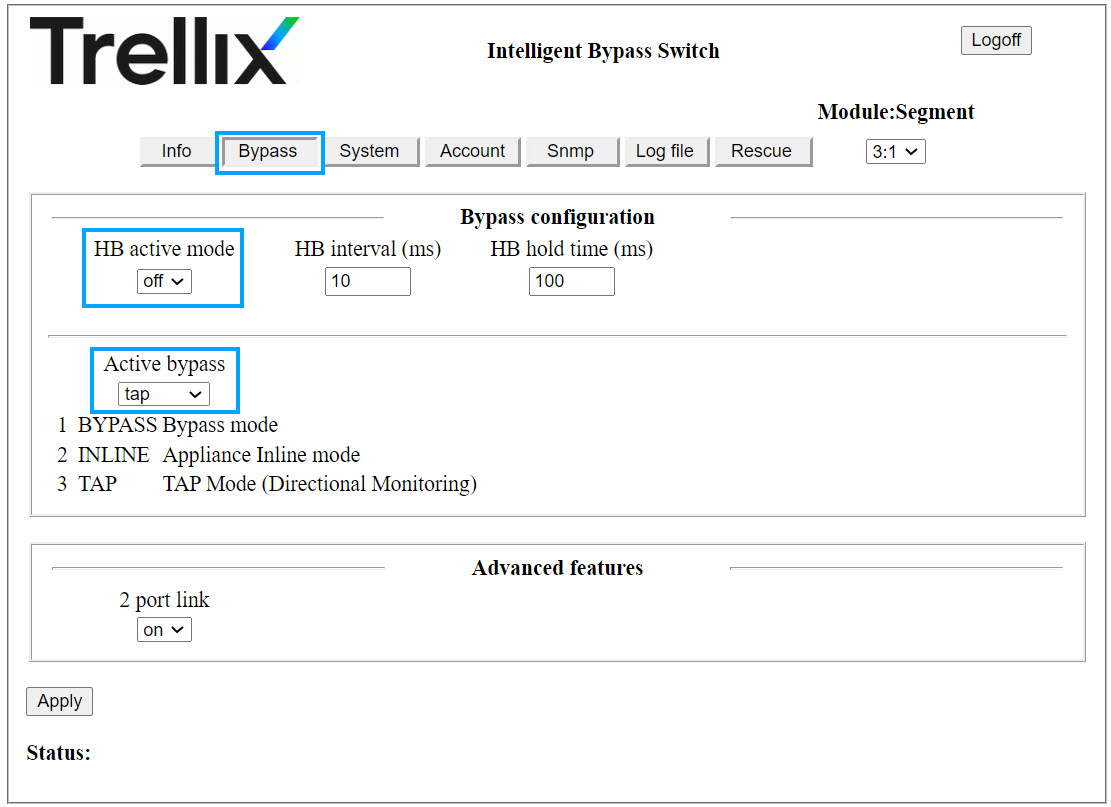

Click the Bypass tab to access the Bypass configuration page.
Under HB active mode, select Off from the drop-down list.
Under Active bypass, select tap/inline from the drop-down list.
Click Apply to save your configuration.

You have set your Active Fail-Open to tap/inline mode of operation.

Note
To return to Bypass mode,
under HB active mode, select on from the drop-down list.
Click Apply to save your configuration.
