Prerequisites:
Configure an IPv4 address for your fail-open switch.
Make sure you can access the fail-open switch web interface using a web browser.
You can enable tap mode for your active fail-open switch if you use a tap to route network traffic to the Sensor Monitoring ports.
Steps:
Log on to the web interface of the active fail-open switch.
Use default credentials to access the web interface. For more information about the web interface, refer to the section Access the fail-open switch web interface.

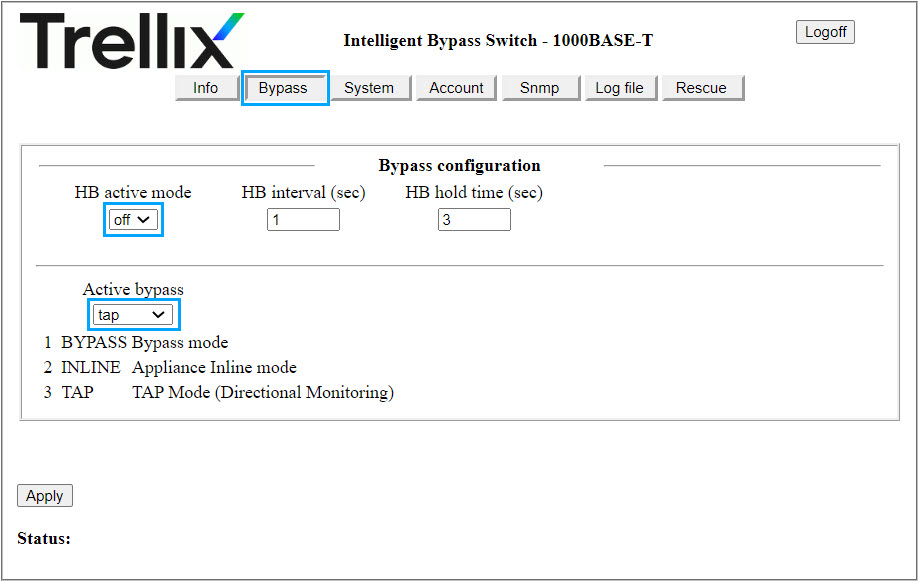

Click the Bypass tab to access the Bypass configuration page.
Click the HB active mode drop-down menu and select Off.
In the Active bypass section, select tap.
.jpg?sv=2026-02-06&spr=https&st=2026-11-20T17%3A55%3A26Z&se=2026-11-20T18%3A06%3A26Z&sr=c&sp=r&sig=d37yej5it0o7UMZ7CaIx3fz6r0ArjOvUru22sfJ3TBM%3D)
Click Apply to save your configuration.
Result: You have set your active fail-open to tap mode of operation.
