Prerequisites:
You can enable the association of any Client Group for any specific Sensor using the → → → → → → tab. Before you enable the association of Client Group for any specific Sensor in the Manager:
Make sure that you have configured the required Client Profile and Client Group on the NI appliance. For more information how to configure a Client Profile and Client Group using the NI CLI, refer to the topics Create a Client Profile on the NI CLI and Create a Client Group on the NI CLI.
Make sure that you have added the Client Group configured on the NI appliance to the Manager using the → → → → → tab. If you have not done it, you may add it by accessing the Client Group Association tab available at the Device level. Refer to the steps outlined below for more information.
Ensure that you have added an Inspection Options policy with Layer 7 Data Collection enabled at the required domain and have assigned it to the required interfaces and sub-interfaces. Refer to the chapter Working with Inspection options policies in Trellix Intrusion Prevention System 11.1 Product Guide for detailed information.
Steps:
Perform the following steps to enable association of a Client Group at the device level:
In the Manager, go to the Devices page and select the required domain from the Domain drop-down list.
Now, go to the Devices tab and select required Sensor from the Devices drop-down list.
Navigate to → page.
The configuration options in the Client Group Association tab is displayed in the NI integration page.
Note
→ → page includes only the Client Group Association tab.

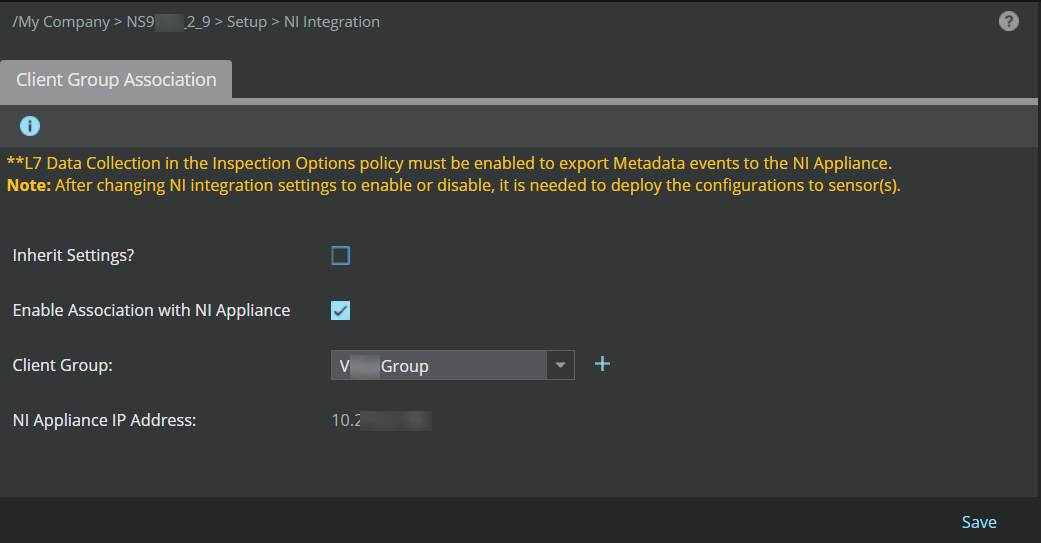

Configuration options in Client Group Association tab at the device level.png "NI_M7_devicelevel.png")
Specify the following configuration options in the appropriate fields:
Field
Description
Inherit Settings?
Enabling this checkbox means the Sensor selected will inherit global settings and no further options will appear in this page.
The following options appear only when Inherit Settings? is deselected
Enable Association with NI Appliance
Select this checkbox to start the process of enabling Client Group association for the selected Sensor
The following options appear only when Enable Association with NI Appliance checkbox is selected
Client Group
This field enables you to select the specific Client Group to be enabled for a specific device on the Manager via the following two options:
You can select the required Client Group from the drop-down list, if the Client Group has been added in the Manager using the → → → → → tab.
If you have not yet added the required Client Group in the Manager, click
.png "GUID-E7BA235E-C8E9-494B-A481-32F301FEAAB8-low.png")
icon.Create New Client Group panel is displayed in which you can provide the Client Group name, the IPv4 address of the associated NI appliance, and authentication hash token attached to the specific Client Group, and click Save.
.jpg "GUID-AA7349A1-36F0-47D8-B8C3-DD2FE0DED078-low.jpg")
Once the Client group addition is successful, it is automatically selected the Client Group drop-down list.
NI Appliance IP Address
The IPv4 or IPv6 address of the NI appliance is automatically fetched in the field once you specify the Client Group from the drop-down or add it using the
icon above.Once all fields have been configured, Click Save. After updating NI integration configuration on the Client Group Association at the device-level, you must deploy configuration changes to the required Sensor(s) for the updates to take effect.
This marks the successful completion of the task of enabling NI integration at the device level in the Manager. In case you want to modify the Client Group association settings for the specific Sensor at a later time, you may do so by performing either of the following two steps:
Selecting it in the required Client Group from the Client Group drop-down list and then saving the changes, provided that it has been already added in the Manager using the Client Group Configuration tab.
Adding the required Client Group using the
icon present on the Client Group Association tab at the Device-level and then saving the changes.
