Enable the CAC authentication

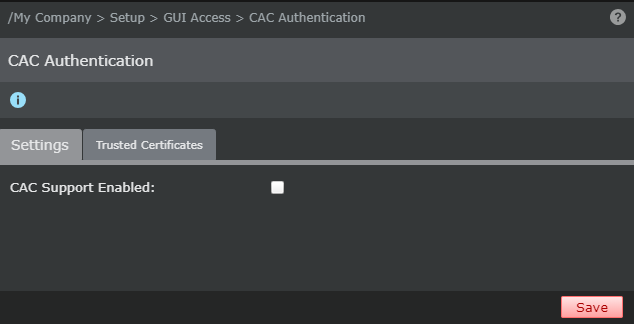

CAC Support Enabled

Select the checkbox to enable CAC Authentication. By default, the CAC Authentication is disabled.

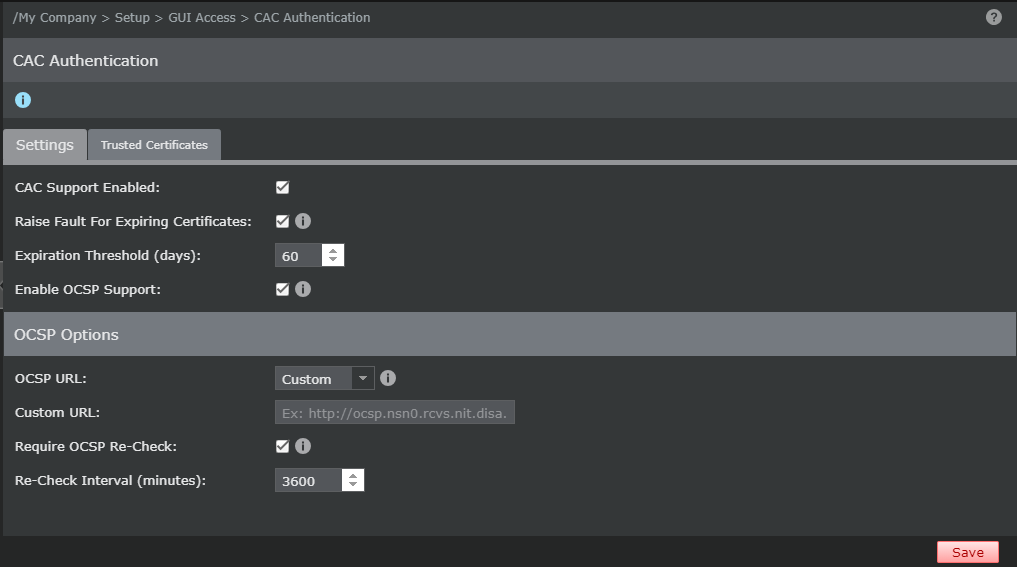

Raise Fault for Expiring Certificates

Select the checkbox to configure the Manager to generate faults when a trusted certificate is about to expire.

Expiration Threshold (days)

Number of days for the trusted certificate expiration when a fault is generated in the Manager.

Note

The Expiration Threshold (days) can be within the range of 30 to 60 days only.

Note

The Expiration Threshold (days) can be configured only when the Raise Fault for Expiring Certificate option is enabled.

Enable OCSP Support

Select the checkbox to enable OCSP Support. By default, the OCSP Support is disabled.

OCSP Options

OCSP URL

Select Default to use the OCSP URL defined in the trusted certificate or Custom to configure a unified OCSP URL for all trusted certificates in the Manager.

Custom URL

Specify the OCSP URL for authenticating the trusted certificates.

Note

The Custom URL field is available only when you have the OCSP URL option set to Custom.

Require OCSP Re-Check

Select Yes to verify the authenticity of the trusted certificate after a definite interval.

Re-Check Interval (minutes)

Specify the duratin in minutes after which the authenticity of the trusted certificate is rechecked.

Note

The Re-Check Interval (minutes) can be within the range of 30 to 1440 minutes only.

Note

The Re-Check Interval (minutes) can be configured only when the Require OCSP Re-Check option is enabled.
