Enable Trellix Intelligent Sandbox integration for a Sensor

Steps:

1. In the Manager, select the Devices tab.

2. Select the domain from the Domain drop-down list.

3. On the left pane, click the Devices tab.

4. Select Setup → Intelligent Sandbox Integration.

5. Enter the configuration details in the corresponding fields.

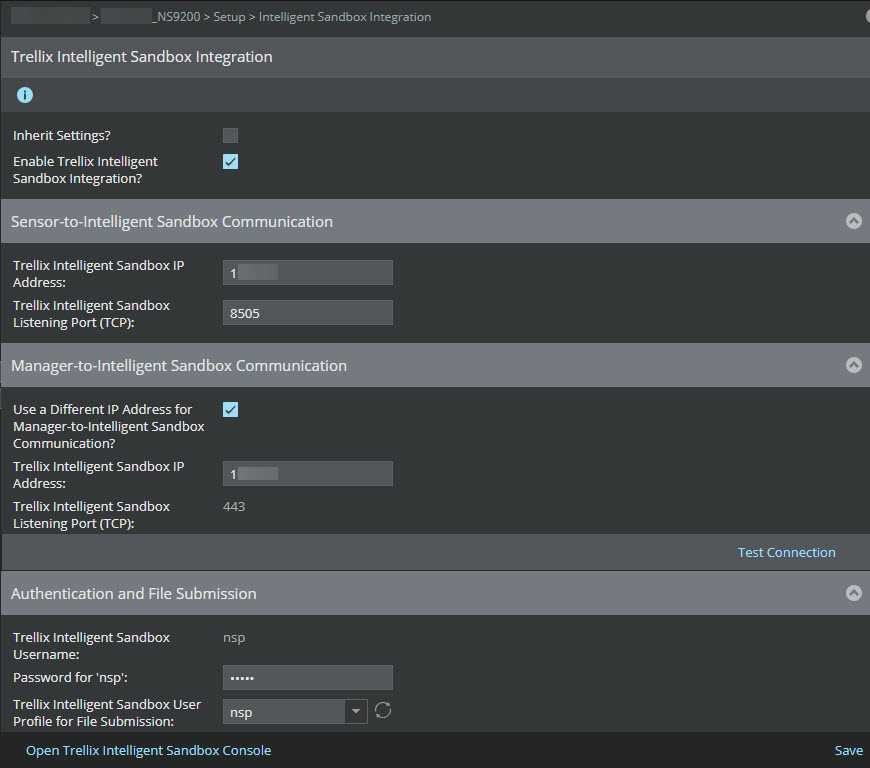

   Enabling the integration for a Sensor





   Option definitions

   Option	Definition
   Inherit Settings?	Select to inherit the integration configuration from the corresponding admin domain. The remaining fields are available only if this is de-selected.
   Enable Trellix Intelligent Sandbox Integration?	Select to integrate the Sensor with Trellix Intelligent Sandbox. After you select, you are able to view and configure the details for the integration.
   Trellix Intelligent Sandbox IP Address	Enter the static IPv4 address of Trellix Intelligent Sandbox.
   Trellix Intelligent Sandbox Listening Port (TCP)	This is the port that Trellix Intelligent Sandbox will listen for connections from Sensors. The default port is 8505. You can modify if required.
   Use a Different IP Address for Manager-to-Intelligent Sandbox Communication?	Check if you want Manager to communicate with the Trellix Intelligent Sandbox appliance using a different IP address than the IP address the Sensor is using to communicate with the same Trellix Intelligent Sandbox appliance.
   Trellix Intelligent Sandbox IP Address	Enter the IPv4 address of Trellix Intelligent Sandbox.
   Trellix Intelligent Sandbox Listening Port (TCP)	This is the port that Trellix Intelligent Sandbox will listen for connections from Manager. The default port is 8505. You can modify if required.
   Test Connection	Click to verify if the Manager is able to communicate with Trellix Intelligent Sandbox using the details you configured. For the Sensor, you can ping the IP address of Trellix Intelligent Sandbox appliance from the Sensor CLI.
   Trellix Intelligent Sandbox Username	The pre-defined user name, which the Manager uses to log on to Trellix Intelligent Sandbox, is displayed. You cannot enter a different name or change this default name in Trellix Intelligent Sandbox.
   Password for 'nsp'	Enter the corresponding password. The default password is admin. As a precaution, change this password in the NSP User user record in Trellix Intelligent Sandbox. Click Open Trellix Intelligent Sandbox Console to open Trellix Intelligent Sandbox web application. In Trellix Intelligent Sandbox web application, select Manage → User Management. Select NSP User and click Edit to change the password. Click Save.
   Trellix Intelligent Sandbox User Profile for File Submission	Select from the drop-down your user profile created under Trellix Intelligent Sandbox. A Sensor can have its own analyzer profile as configured by the user.
   Save	Saves the Trellix Intelligent Sandbox details in the Manager database
   Open Trellix Intelligent Sandbox Console	Click to access the logon page of Trellix Intelligent Sandbox with which the Sensor is currently integrated.
