Custom default reports can be generated from Analysis → <Admin Domain Name> → Event Reporting → Custom Reports menu in the Manager.
When you select the Analysis → <Admin Domain Name> → Event Reporting → Custom Reports, the Custom Reports page is displayed. The Saved Reports section on the left pane comes up by default.

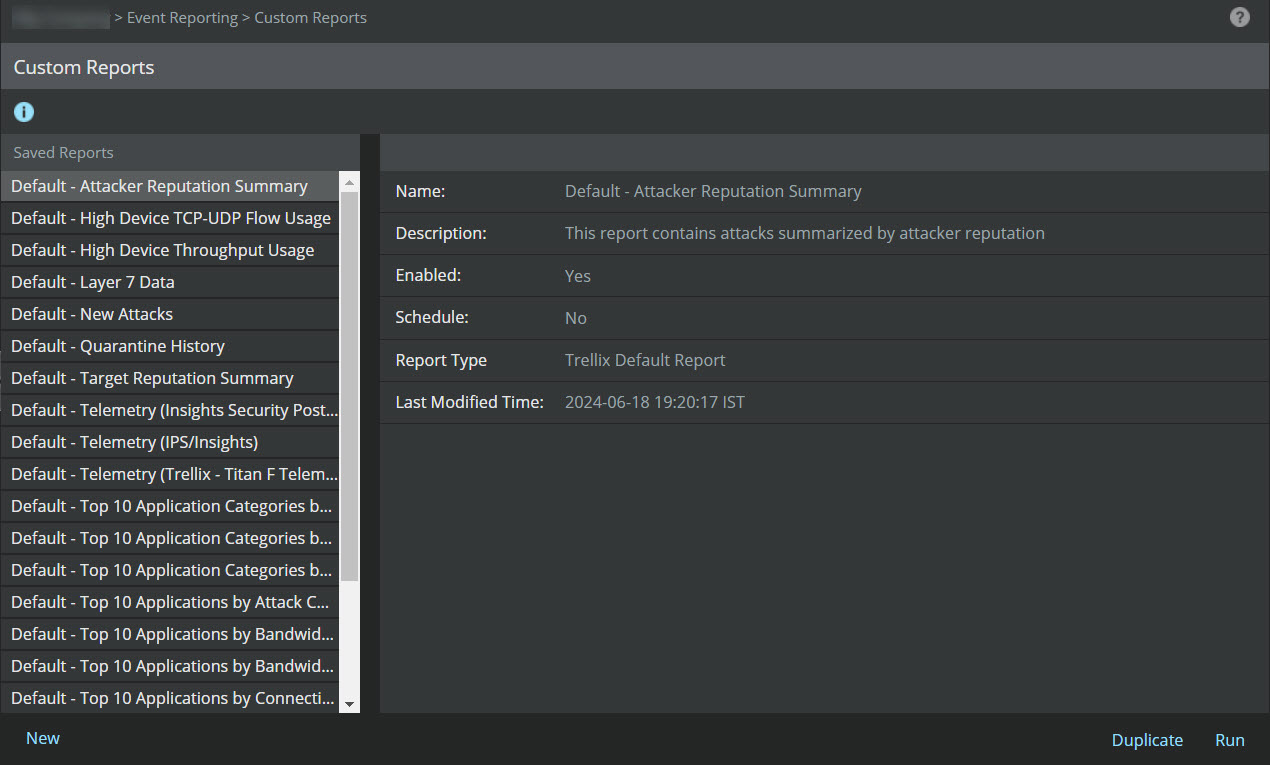

.jpg "11_1M6_customreports_1.jpg")
The four default reports related to Sensor performance monitoring; Default - High Device Throughput Usage, Default - High Device TCP–UDP Flow Usage, Default - Quarantine History, and Default - Top 10 Attacks are displayed on the left pane along with other reports.
The procedure to view one of the defaults reports related to Sensor performance monitoring, the Default - Quarantine History is detailed below.
Note
The admin domain filter in the main Analysis tab (provided in the left pane) does not impact the report generated. The Admin Domain drop-down list is explicitly to filter the reports that are generated.
Select Default - Quarantine History listed on the left pane to view the details of this report on the right pane.
Click Run to view the Run Query choices.
Select one of the Date Options (either query for the day or between two dates or for a selected period in the past).
Select the report format (HTML, PDF Portrait, PDF Landscape, Save as CSV or Save as HTML) and click Run.

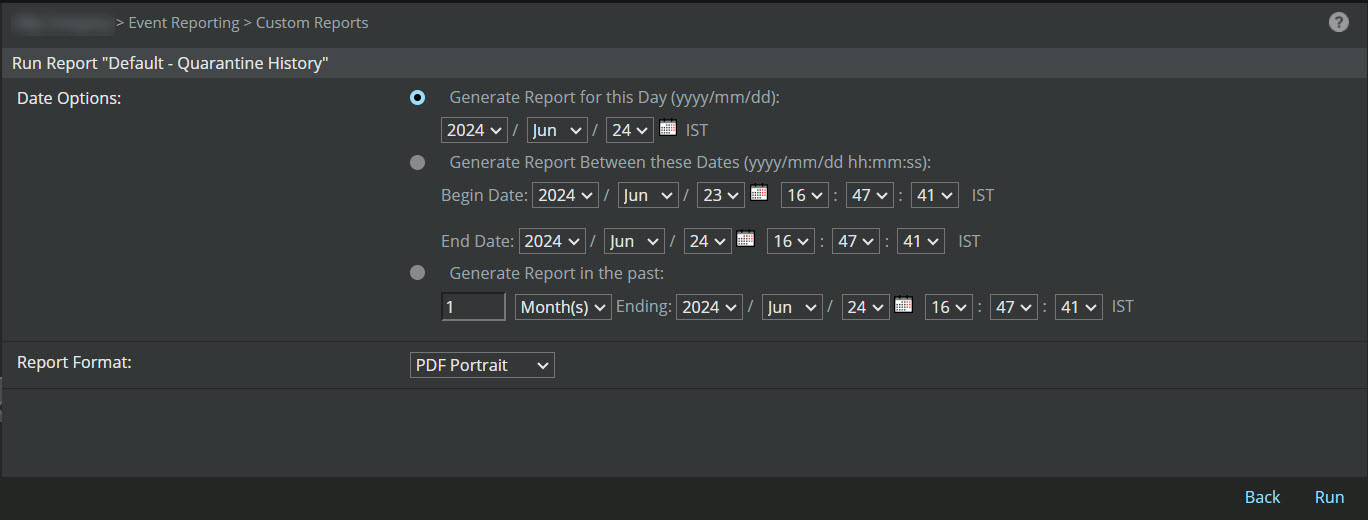

Report Format option.jpg "Report_Format_option_1.jpg")
The Default - Quarantine History report is generated.

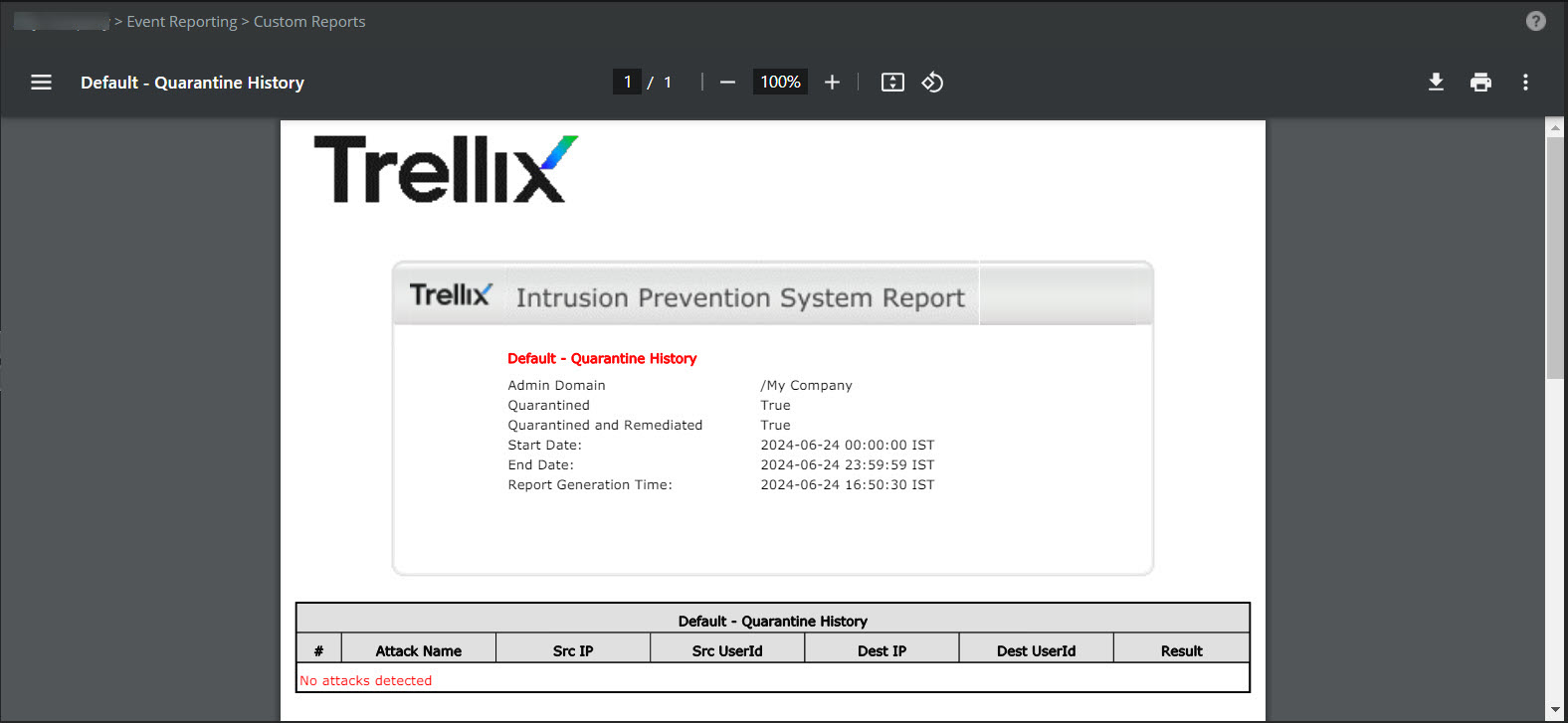

Default - Quarantine History report.jpg "M6_Default_-_Quarantine_History_report.jpg")
Note
In step 1 above, select Default - High Device Throughput Usage or Default - High Device TCP–UDP Flow Usage or Default - Top 10 Attacks and follow a similar procedure to generate the corresponding Sensor performance reports. Default reports are generated only if the data values are higher than or equal to 95 %.
