Generating a Web AV report using the Web UI

Prev Next

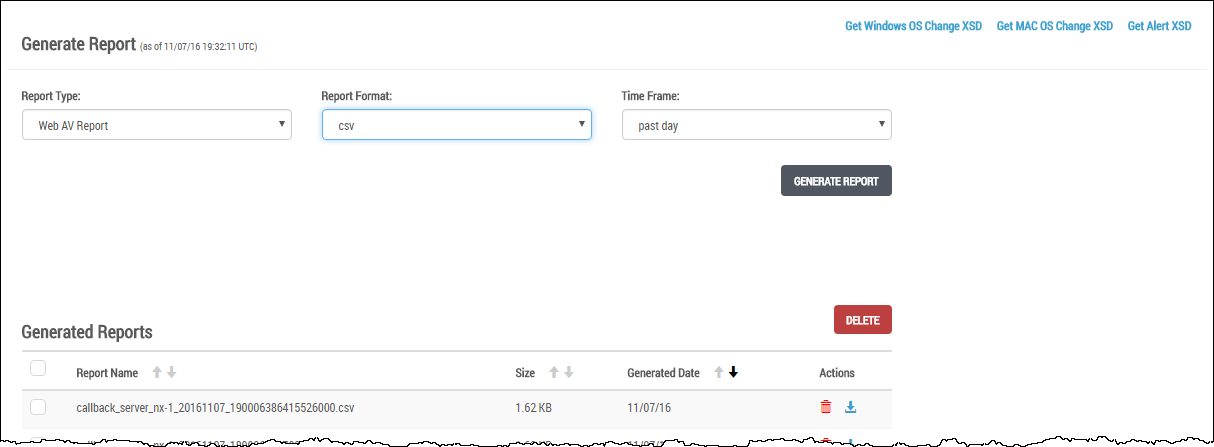

Use the Generate Report page to generate a consolidated Web AV report.

To generate a Web AV report:

When the report generation is complete, the generated report appears in the Generated Reports table.

  1. In the Web UI, choose Reports > Reports.

  2. In the Report Type drop-down menu, select Web AV Report.

  3. In the Report Format drop-down menu, select the csv output format to write the report to a CSV file.

  4. In the Time Frame drop-down menu, select the time period for this report:

    • past day—Report covers analysis generated during the past 24 hours.

    • past week—Report covers analysis generated during the past 7 days.

    • past month—Report covers analysis generated during the past 1 month.

    • past 3 months—Report covers analysis generated during the past 3 months.

    • between—Report covers analysis generated between the specified From date and time and the specified To date and time.

  5. Click Generate Report. The generated report is added to the top of the generated report list.

  6. (Optional) Export the XSD files. These files describe the structure of the Web AV report.

    • To export the Windows OS Change XSD, click the Get Windows OS Change XSD link at the top right side of the page.

    • To export the MAC OS Change XSD, click the Get MAC OS Change XSD link at the top right side of the page.

    • To export the Alert XSD, click the Get Alert XSD link at the top right side of the page.

To delete a generated Web AV report:
  1. In the Web UI, choose Reports > Reports.

  2. In the Generated Reports table, locate a generated Web AV report you want to delete.

  3. Click the Delete (red trash can) icon.

  4. Click OK.

    A Web AV report is removed. The following message appears:

  5. Close the message.
