High-level steps for implementing user-based Firewall and QoS rules

The following are the requirements for implementing user-based rules for Firewall and QoS:

• Manager 10.1 or above
• M-series Sensors of software version 9.1 or above
• NS-series Sensors of software version 9.1 or above (Firewall rules only)
• McAfee Logon Collector 2.0
• Your AD server is configured correctly and that your users are able to logon to the domain.
• You have deployed the required Sensor monitoring ports in SPAN, tap, or inline mode (for QoS, only inline mode applies). Your Trellix IPS deployment is functioning as expected. For example, in the segment where you have deployed the monitoring ports, legitimate traffic is able to reach the destined hosts.
• Optionally, you can log the results of each rule that the Sensor applied. For this you need a syslog server.

Note

To be able to configure and use Firewall policies, you must have administrator permissions for the IPS environment of the Manager. If you are not sure, contact the administrator of the Manager server.

The following are the high-level steps involved in implementing user-based access rules:

1. Install or upgrade McAfee Logon Collector to 2.0. You can install McAfee Logon Collector on your AD server or on a different one. If you are installing it on a different server, make sure the McAfee Logon Collector and the AD server are reachable to each other over the network. Refer to McAfee Logon Collector Administration Guide for information on installation and upgrade.

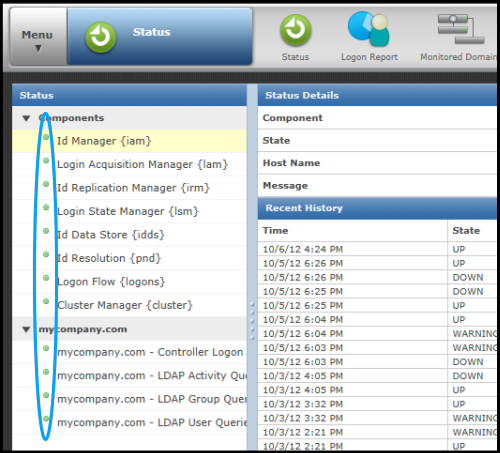

2. Add the relevant domains in McAfee Logon Collector. After you have added the domains, the Status in McAfee Logon Collector must be in green. If not, refer to McAfee Logon Collector documentation to troubleshoot and fix the problems.





3. Make sure the IP, users, and computer details displayed in the Logon Report of the McAfee Logon Collector are accurate.
4. Integrate McAfee Logon Collector with the Manager. You can integrate only one McAfee Logon Collector with the Manager. See Trellix Intrusion Prevention System Integration Guide for information.

   Note

   If you implement Manager Disaster Recovery (MDR), then you must manually integrate the secondary Manager with McAfee Logon Collector.

5. Optionally, configure the syslog details in the Manager to log the details related to Firewall access rules.
6. As explained in the subsequent sections, the Manager receives the user details from McAfee Logon Collector. Additionally, the Sensor also uses the Kerberos traffic to detect user details. For this method to work, you must configure the details of the AD and Trusted Domain Controllers in the Manager.
7. Configure user-based access rules in the Manager and apply it to the required Sensor resources. In an access rule, you can specify the following as the criteria:
   • Up to 10 AD user names
   • Up to 10 AD user groups
   • A combination of AD user names and user groups not exceeding 10 in a rule in advanced policy.
8. View the access-rule related details in the Manager configuration report and in the syslog server.
