The Pair Creation action enables you to view the current state of MDR functions including Primary Manager status, Secondary Manager status, and a summary of current MDR settings. To view the MDR status and the details, click Manager → <Admin Domain Name> → Setup → MDR. You will be able to see the status and the details only if you have configured a peer manager already as part of MDR.
Note
The Pair Creation action assigns a GUID to the MDR pair. The GUID of the primary Manager in an MDR pair is assigned as the MDR Pair GUID. That is, if the GUID of the primary Manager is 8a4534bd-9c6b-4a40-aa2d-383611358801 and GUID of the secondary Manager is 8a4594bd-8c6b-4a90-cd2d-431211358832, the Manager Pair GUID is 8a4534bd-9c6b-4a40-aa2d-383611358801.

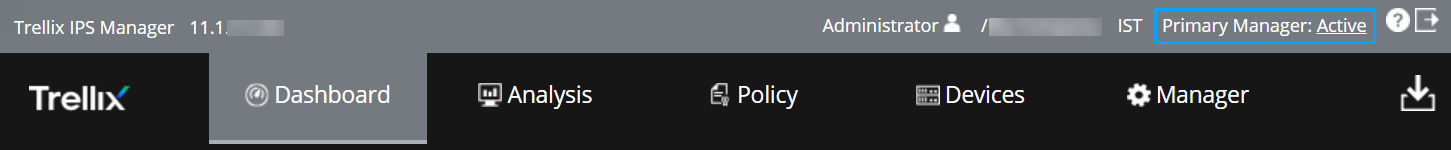

You can also view the MDR status in the application header.
.png "GUID-87924E71-FEC5-4A43-BC96-EA5CA70DD638-low.png")
MDR status displays the role of the Manager, whether it is Primary or Secondary. It also displays the status link of the Manager, whether it is in Active or Standby mode. Clicking on the Active status link navigates to the MDR page on the Manager tab.
