Import the CA certificates

Prev Next

Import the intermediate and root certificates in the certificate chain of your CAC cards to the Manager. To import the CAC certificates, perform the following steps:

Task

  1. Log in to the Manager GUI.

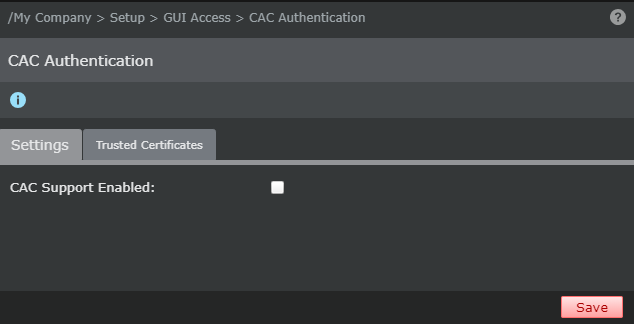

  2. Go to,   Manager   → <Admin Domain Name > → Setup → GUI Access → CAC Authentication.

    The   CAC Authentication page opens.

    Note

    The recommended CAC authentication mechanism for standalone managers prior to creating MDRs.

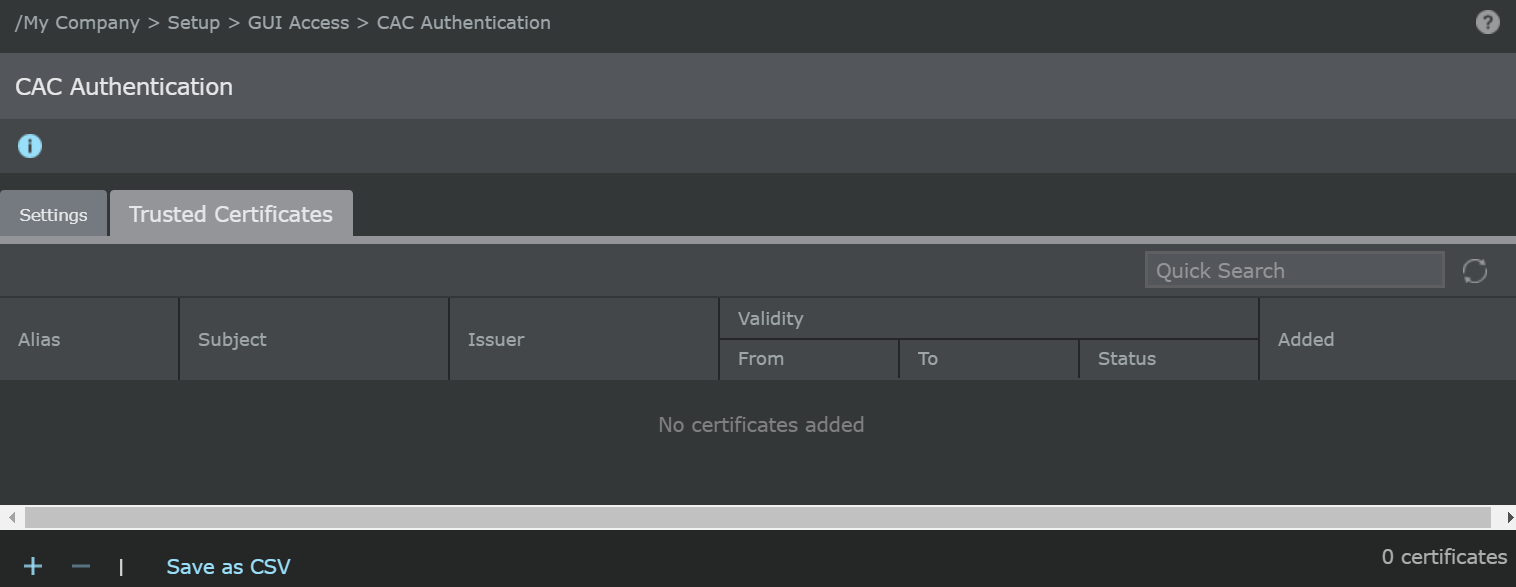

  3. In the   Trusted Certificates tab, click   .

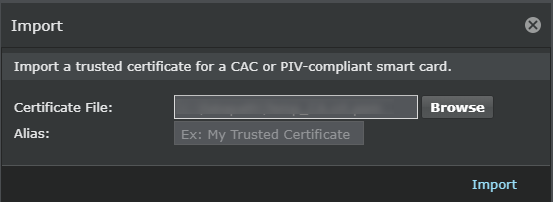

  4. In the   Import dialogue box, click   Browse.

  5. Browse to the directory that contains the certificate chain and click   Open.

    Note

    The CAC certificate should be in .pem format.

  6. Provide an   Alias for the certificate and click   Import.




  7. Click   .

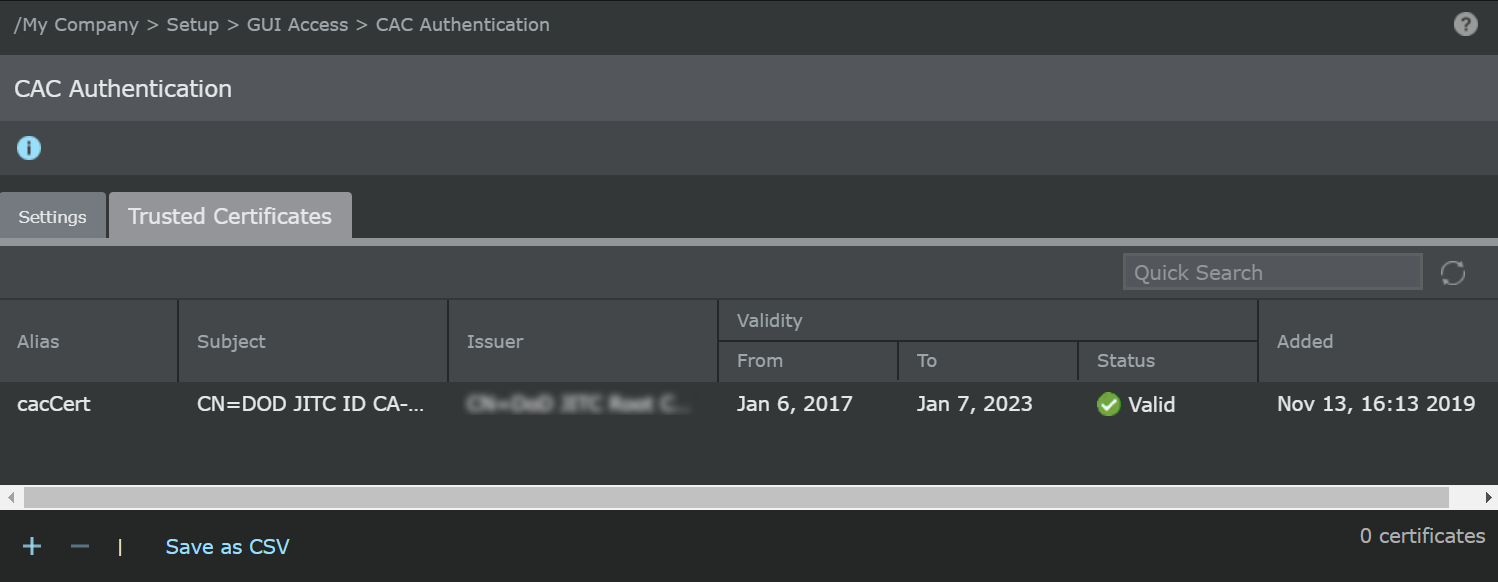

    The Manager imports the certificate to its keystore and the details of the certificate are displayed on the   Trusted Certificates tab.




    Note

    Click   Save as CSV to export the trusted certificates details as .csv file.
